With the continuous development of urban power networks, industrial facilities, renewable energy projects, and infrastructure systems, medium voltage distribution equipment requires higher levels of safety, reliability, compactness, and intelligent control. Ring Main Unit (RMU) switchgear has become an important solution for secondary distribution networks because it combines power switching, protection, and distribution functions within a compact structure.

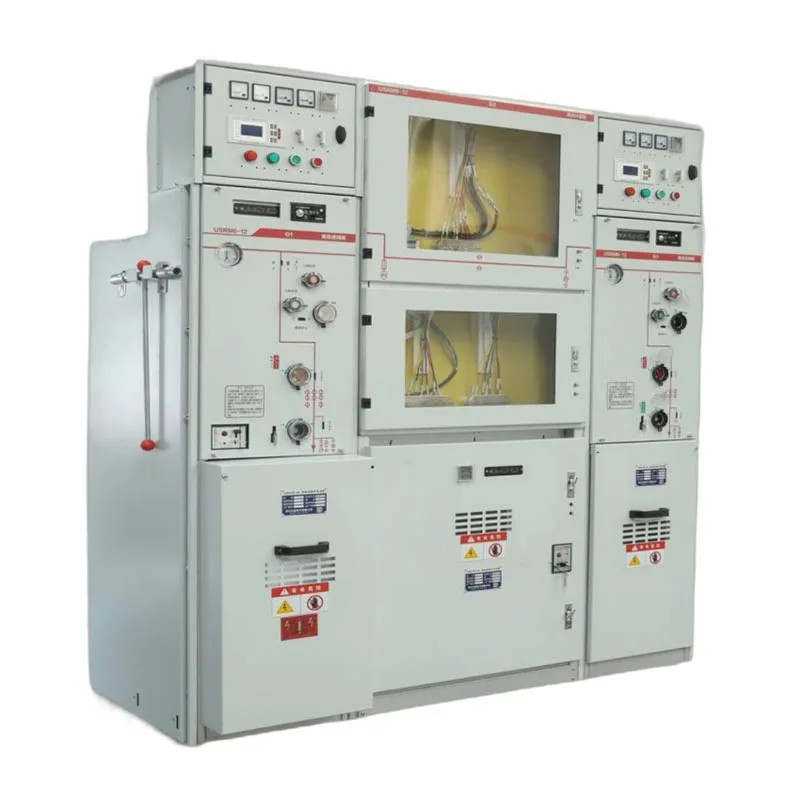

The 22kV SF6 GIS RMU Ring Main Unit Switchgear from Usune is designed for medium voltage power distribution applications requiring reliable insulation performance, safe operation, and efficient space utilization. By using SF6 gas insulation technology and a sealed structure, the switchgear helps improve operational stability in environments where safety and continuity of power supply are critical.
For utilities, industrial power users, engineering contractors, and electrical distributors, selecting a suitable RMU requires careful evaluation of rated voltage, insulation performance, short-circuit capability, protection configuration, environmental adaptability, maintenance requirements, and compliance with electrical standards.
A Ring Main Unit is a type of medium voltage switchgear mainly used in secondary distribution networks. It integrates load switching, cable connection, protection, and grounding functions into a compact enclosure, helping improve the reliability and flexibility of power distribution systems.
The 22kV SF6 GIS RMU Ring Main Unit Switchgear uses SF6 gas as an insulating medium to separate electrical components from external environmental influences. The sealed gas compartment helps maintain stable insulation performance and reduces the impact of humidity, dust, and pollution.
RMU switchgear is widely used in applications where continuous power supply is important, including industrial parks, commercial buildings, substations, renewable energy facilities, transportation infrastructure, and urban distribution networks.
The compact design allows installation in locations where traditional switchgear systems may require more space.
| Parameter | Specification | Buyer Consideration |
|---|---|---|
| Product Type | 22kV SF6 GIS RMU Ring Main Unit Switchgear | Designed for medium voltage distribution systems |
| Brand | Usune | Manufacturer of medium and low voltage electrical equipment |
| Rated Voltage | 22kV | Suitable for medium voltage power distribution applications |
| Insulation Method | SF6 gas insulation | Provides stable insulation performance in sealed conditions |
| Switchgear Type | Gas Insulated Switchgear (GIS) RMU | Compact structure with integrated switching functions |
| Configuration | Ring main unit modular design | Supports different feeder and protection requirements |
| Application Frequency | 50Hz / 60Hz power distribution systems | Suitable for different regional electrical networks |
| Protection Functions | Load switching, cable protection, grounding operation | Supports safe distribution network operation |
| Installation | Indoor and customized outdoor solutions | Selected according to project environment |
| Standards | Designed according to IEC and related electrical standards | Supports international project requirements |
Specific parameters such as rated current, short-circuit withstand current, protection class, cabinet configuration, relay protection system, communication function, and mechanical operation requirements should be confirmed according to the actual project specifications.
SF6 gas has excellent insulation characteristics, making it widely used in medium voltage switchgear applications. In a sealed GIS structure, the insulation environment remains protected from external conditions such as dust, moisture, and pollution.
This helps maintain reliable electrical performance and reduces the influence of environmental changes on switchgear operation.
Compared with conventional air-insulated switchgear, gas-insulated designs can achieve a more compact structure by placing high voltage components inside a sealed gas compartment.
This advantage is valuable for urban substations, commercial buildings, industrial facilities, and projects where installation space is limited.
The sealed enclosure separates operators from energized components, helping reduce exposure risks during normal operation.
Combined with grounding systems, mechanical interlocking functions, and protection devices, RMU switchgear provides additional safety support for medium voltage distribution systems.
The gas compartment contains the main electrical components and provides insulation protection. A sealed structure helps maintain consistent internal conditions throughout the service life of the equipment.
Gas sealing quality and leakage control are important factors affecting long-term reliability.
The load break switch is responsible for controlling normal current switching operations in the distribution network.
It allows operators to isolate sections of the network for maintenance or system adjustment while improving operational flexibility.
The earthing switch provides grounding functionality during maintenance procedures, helping ensure safer working conditions for electrical personnel.
Proper mechanical interlocking between switching components helps prevent incorrect operating sequences.
Depending on the system configuration, RMU switchgear can integrate protection components such as circuit breakers, fuses, relays, and monitoring systems.
The protection configuration should be selected according to transformer capacity, load characteristics, fault protection requirements, and distribution network design.
Factories, manufacturing facilities, and industrial parks require stable electricity supply to maintain continuous production operations.
The 22kV SF6 GIS RMU Ring Main Unit Switchgear can help distribute medium voltage power while providing switching and protection functions for industrial electrical networks.
Large commercial buildings, shopping centers, office complexes, and public infrastructure projects require reliable power distribution systems.
Compact RMU solutions can reduce installation space while supporting safe medium voltage power management.
Solar farms, wind power stations, and distributed energy systems require medium voltage switching equipment to connect generated electricity with distribution networks.
RMU switchgear can support energy collection, switching, and protection requirements in renewable energy applications.
Growing cities require distribution equipment that can operate efficiently within limited installation areas.
The compact structure of GIS RMU makes it suitable for urban substations and underground power distribution systems.
The selected RMU must match the electrical characteristics of the distribution system. Rated voltage, current capacity, and short-circuit withstand capability directly affect equipment safety and service performance.
Buyers should provide complete electrical system information before selecting the appropriate configuration.
Different applications require different protection strategies. Industrial systems may require enhanced fault protection, while renewable energy projects may require additional monitoring and control functions.
The RMU configuration should be determined according to the actual network design.
Installation environments can influence equipment selection. Factors such as temperature, humidity, altitude, pollution level, and installation location should be considered during the design stage.
A suitable enclosure and protection design can improve equipment reliability in challenging conditions.
Although SF6 GIS RMU systems are designed for reliable operation, regular inspection remains important. Electrical connections, mechanical operation, protection devices, and gas system conditions should be checked according to maintenance requirements.
The sealing performance of the SF6 compartment directly affects insulation reliability. Gas leakage monitoring and inspection procedures help maintain stable operating conditions.
Operators should understand switching procedures, safety requirements, and protection functions before operating medium voltage equipment.
Proper training helps reduce operational errors and improves system safety.
Medium voltage switchgear requires strict electrical testing before delivery. Tests may include insulation verification, voltage withstand testing, switching performance inspection, and protection function checks.
Switching mechanisms must maintain reliable operation during repeated opening and closing cycles.
Mechanical accuracy, component quality, and assembly precision directly influence long-term equipment performance.
Reliable RMU production requires control over welding quality, enclosure manufacturing, electrical assembly, gas sealing, and final inspection procedures.
A controlled manufacturing process helps ensure consistent product quality for different project applications.
Usune specializes in electrical distribution equipment, providing medium and low voltage switchgear solutions for industrial, commercial, and infrastructure applications.
The company focuses on products including gas insulated switchgear, ring main units, vacuum circuit breaker panels, low voltage distribution cabinets, and customized power distribution equipment.
With experience in electrical equipment manufacturing, Usune provides solutions based on international electrical standards and customer project requirements, supporting applications that require safety, reliability, and efficient power management.
The 22kV SF6 GIS RMU Ring Main Unit Switchgear is an important component in modern medium voltage distribution systems. Its compact structure, SF6 gas insulation technology, integrated switching functions, and reliable protection design make it suitable for industrial, commercial, renewable energy, and urban power distribution applications.
The 22kV SF6 GIS RMU Ring Main Unit Switchgear from Usune provides a practical solution for customers seeking safe and efficient medium voltage power distribution equipment.
For utilities, contractors, and electrical distributors, selecting the right RMU requires comprehensive evaluation of voltage level, load requirements, protection configuration, environmental conditions, maintenance strategy, and supplier manufacturing capability. A properly selected switchgear system can improve power reliability, enhance operational safety, and support long-term energy infrastructure development.
-
