Fixed Vacuum Circuit Breaker

Usune Fixed Vacuum Circuit Breaker provides an efficient fixed installation solution for medium voltage switchgear, enabling reliable integration, stable operation, and simplified engineering. By focusing on cabinet compatibility and standardized configuration, Usune helps global customers build safer, more efficient power distribution systems.

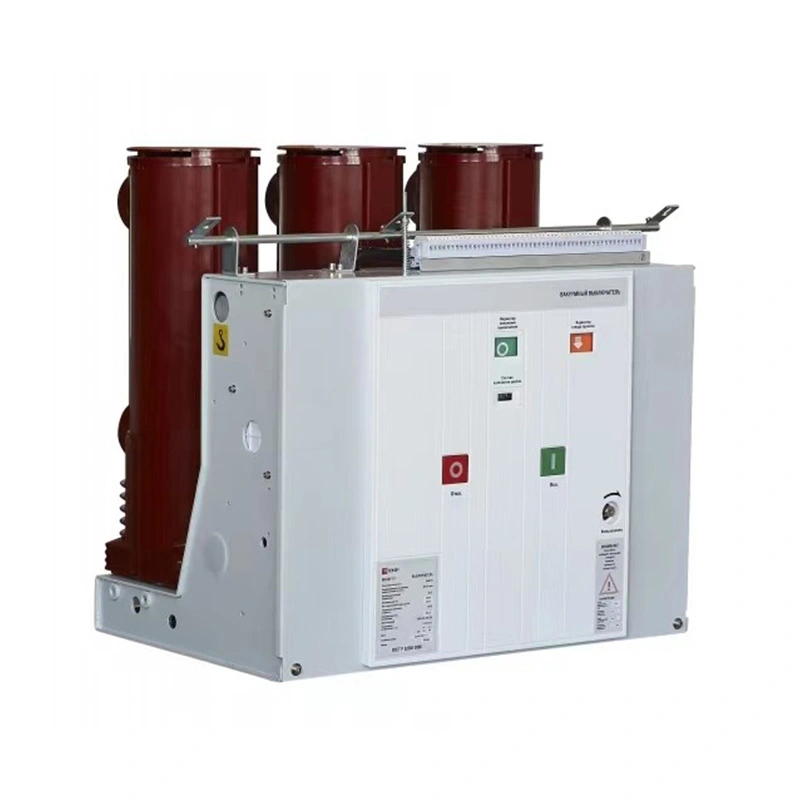

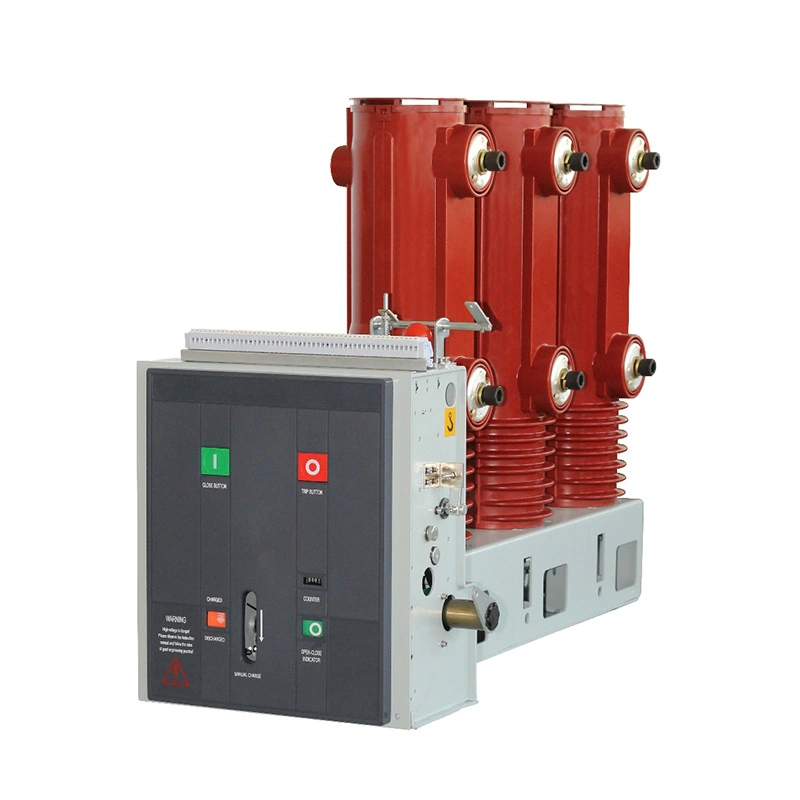

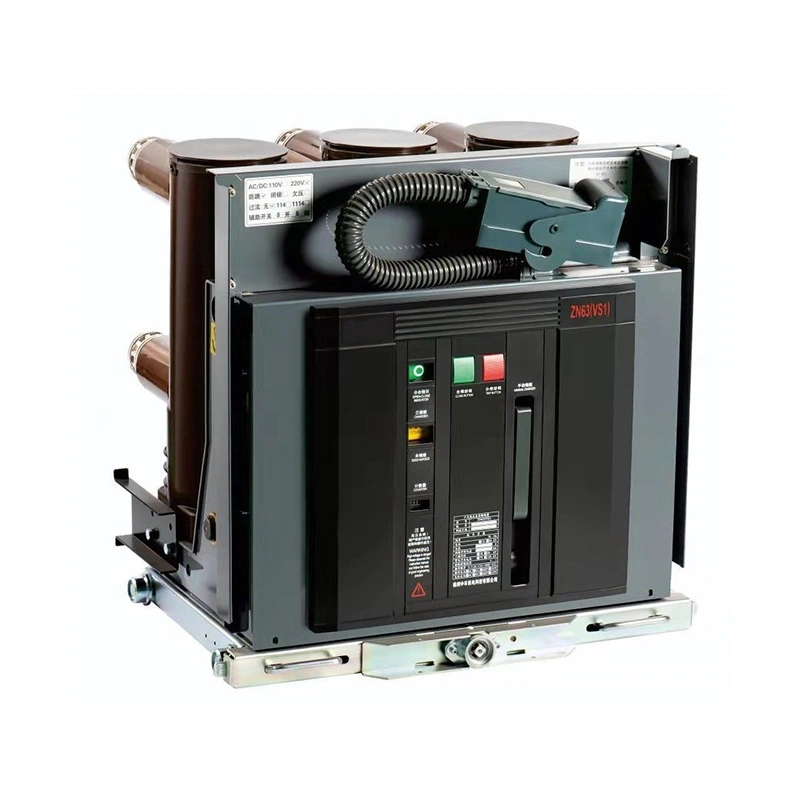

    The USUNE fixed vacuum circuit breaker is permanently bolted within the switchgear enclosure, with primary connections made through rigid busbars or cables. It is designed for 12kV systems (11kV nominal) and carries continuous currents from 630A upward, with short-circuit breaking capacities of 20kA or 25kA. Unlike withdrawable VCBs, the fixed configuration requires no racking truck or drawer compartment, resulting in a more compact panel footprint and lower initial cost. The breaker is designed and type-tested to IEC 62271-100, and is intended for applications where maintenance can be scheduled during planned outages.

    Key badges

      IEC 62271-100 designed and type-tested

      12kV rated voltage for 11kV nominal systems

      Bolted primary connections — no racking mechanism

      630A / 1250A continuous current

      20kA / 25kA short-circuit breaking capacity

    Fixed Vacuum Circuit BreakerFixed Vacuum Circuit Breaker

    Product model and the meaning

    Fixed Vacuum Circuit Breaker

    Interpretation paragraph

    A fixed vacuum circuit breaker is the more suitable choice when the switchgear panel is designed for planned-outage maintenance, when panel depth is constrained, or when the project's total cost of ownership favors a simpler primary connection with no racking mechanism. The trade-off is that maintenance isolation must be provided by the complete installation — not by withdrawing the breaker itself. The panel design should therefore include a disconnect switch or another approved isolation arrangement, and the switching procedure must account for proving dead and earthing before access.

    VS1 Structure Drawing & Installation Dimensions

    Fixed Vacuum Circuit Breaker

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    Fixed Vacuum Circuit Breaker

    Switchgear Compatibility

    Switchgear Compatibility and Mechanical Interface

    Correct electrical ratings are not sufficient on their own — a fixed VCB must also match the mechanical interface of the panel. The following points should be confirmed against approved drawings before ordering.

    Compatible Switchgear Types

    USUNE fixed vacuum circuit breakers are supplied for the following switchgear types

    XGN series fixed-type indoor switchgear

    KYN28A-12 metal-clad switchgear (fixed configuration)

    Custom fixed panels — interface drawings required

    Mechanical Interface Checklist

      Pole spacing and terminal position

      Busbar or cable connection orientation

      Mounting hole pattern and fastening arrangement

      Secondary wiring and auxiliary contact arrangement

      Available space for mechanism service access

    Rated Parameter Consideration

    Electrical parameters determine whether the breaker can meet the operating conditions of the power network. The product is designed for medium voltage applications with a rated voltage of 12kV and rated frequency of 50Hz.

    The insulation performance includes a rated industrial frequency withstand voltage of 42kV and lightning impulse withstand voltage of 75kV, providing stable insulation capability under normal operating and transient conditions.

    Parameter Specification
    Rated Voltage 12kV
    Rated Frequency 50Hz
    Rated Current 630A-4000A
    Rated Short Circuit Breaking Current 20kA-40kA
    Mechanical Life Up to 20000 operations
    Energy Storage Time ≤10s

    Maintenance and Isolation

    Maintenance and Isolation of a Fixed VCB

    Opening the circuit breaker does not isolate the panel. For a fixed configuration, isolation must be provided by the complete installation — typically through a disconnect switch, a withdrawable isolation link, or another approved isolation arrangement within the switchgear. The switching procedure must include proving dead and earthing before any access to the primary connections.


    Maintenance Intervals and Inspection Points

    The vacuum interrupter itself is maintenance-free under normal operating conditions. Periodic inspection should cover

      Operating mechanism lubrication and wear

      Auxiliary circuit and secondary wiring integrity

      Contact wear indication and main circuit resistance

      Tightness of bolted primary connections

      Mechanical operation counter reading

    When Fixed Mounting Reduces Total Cost of Ownership

    A fixed VCB eliminates the racking truck, shutters and drawer interlocks found in withdrawable designs. With fewer moving parts, the initial cost is lower and the number of mechanical failure points is reduced. Where maintenance is planned around scheduled outages and panel depth is constrained, fixed mounting often delivers the lower total cost of ownership. The trade-off is longer outage time if the breaker itself must be replaced.


    Project-Oriented Design

    Fixed Type and Withdrawable Type Comparison

    When selecting a circuit breaker structure, engineers usually consider installation requirements, maintenance methods, and project operating conditions.

    Comparison Item Fixed Vacuum Circuit Breaker Withdrawable Vacuum Circuit Breaker
    Installation Method Permanently installed inside cabinet Can move between test and service positions
    Structure Simplified fixed design Includes withdrawal mechanism
    Cabinet Requirement More straightforward cabinet integration Requires additional mechanical space
    Maintenance Access Requires shutdown for removal Easier equipment replacement
    Suitable Project Type Stable operation systems Systems requiring frequent inspection

    For projects where equipment remains in a fixed position after installation, fixed configuration can provide a practical solution with simpler mechanical design and efficient cabinet integration.

    Advantages

     Bolted primary connections — no plug-in contacts, no racking mechanism, fewer mechanical failure points.

     Compact panel footprint — fixed mounting removes the drawer compartment, reducing switchgear depth.

     IEC 62271-100 design — type-tested for short-circuit breaking and making duties .

     630A to 1250A continuous current — covers feeder and small-transformer circuits in 12kV distribution.

     Vacuum interruption — maintenance-free arc quenching under normal operating conditions.

     Lower initial cost — simpler construction compared with withdrawable VCBs in comparable configurations.

    FAQ

    What is the difference between fixed and withdrawable vacuum circuit breakers?

    A fixed VCB is bolted permanently to the panel and connected by busbar or cable; a withdrawable VCB sits on a removable truck with plug-in contacts. Fixed mounting is more compact and lower cost, but maintenance isolation depends on the panel design. Withdrawable mounting allows the breaker to be removed for service but requires a drawer compartment and racking mechanism.

    Can a fixed VCB be used in a KYN28A-12 panel?

    KYN28A-12 is commonly supplied in withdrawable configuration. A fixed version may be available for specific panel designs; confirm the mechanical interface against approved drawings before ordering.

    How do you isolate a fixed vacuum circuit breaker for maintenance?

    Opening the breaker does not isolate the panel. Isolation is provided by a disconnect switch, isolation link or another approved arrangement within the switchgear. The procedure must include proving dead and earthing before accessing primary connections.

    Is a fixed VCB cheaper than a withdrawable VCB?

    In comparable configurations, fixed switchgear typically has a lower initial cost because it eliminates the racking truck, shutters and drawer interlocks. Total cost of ownership also depends on the spare-breaker strategy and outage costs — a single spare withdrawable breaker can serve multiple panels, while fixed panels each need their own spare.

    Does this fixed VCB comply with IEC 62271-100?

    The breaker is designed to IEC 62271-100. Type test reports are available upon request where applicable.
