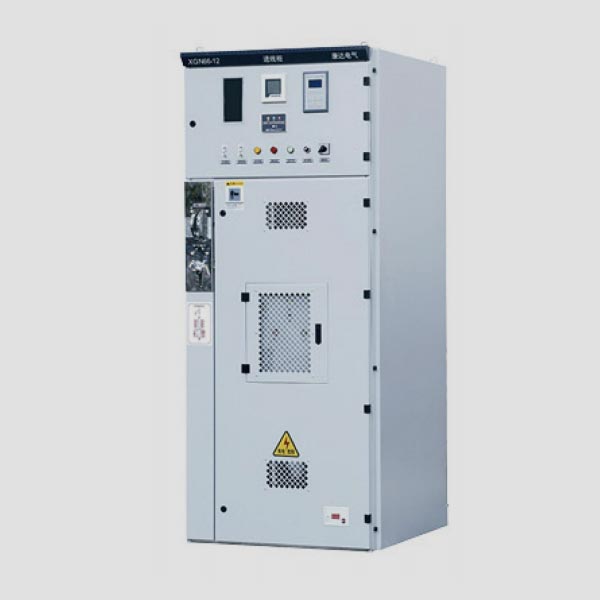

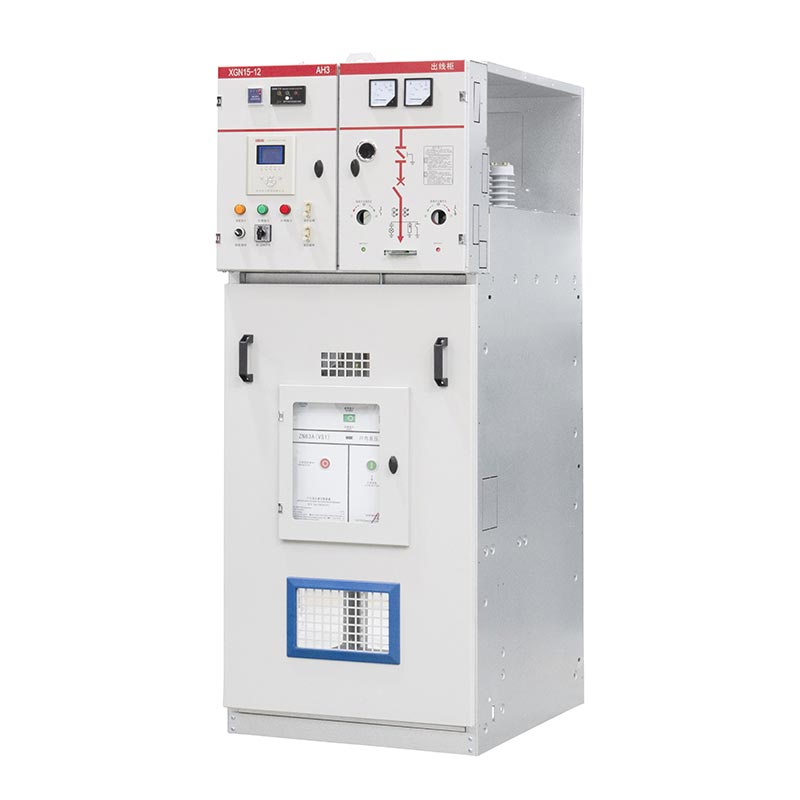

Usune XGN66-12 box type fixed closed Air Insulated Ring Main Unit Rmu is a professional three phase AC metal-enclosed switchgear is suitable for 3.6~36kv three-phase AC 50/60Hz system as the device to receive and distribute electric energy, it' s used for frequent operation places and for reconstruction of switchgear equipped with oil switch. The bus system consists of single bus system and single bus section system. It fulfills power reception, distribution, control and protection functions. Passed strict IEC type tests, the factory has sound ISO 9001, ISO 14001 and ISO 45001 management systems to ensure product stability.

As a professional supplier of power supply and distribution equipment, Usune adheres to "quality first, technology-driven". The Air Insulated Ring Main Unit Rmu covers standard configurations and offers customized solutions to meet diverse project needs.

Low voltage switchgear

Medium voltage switchgear

Core Structural & Performance Features

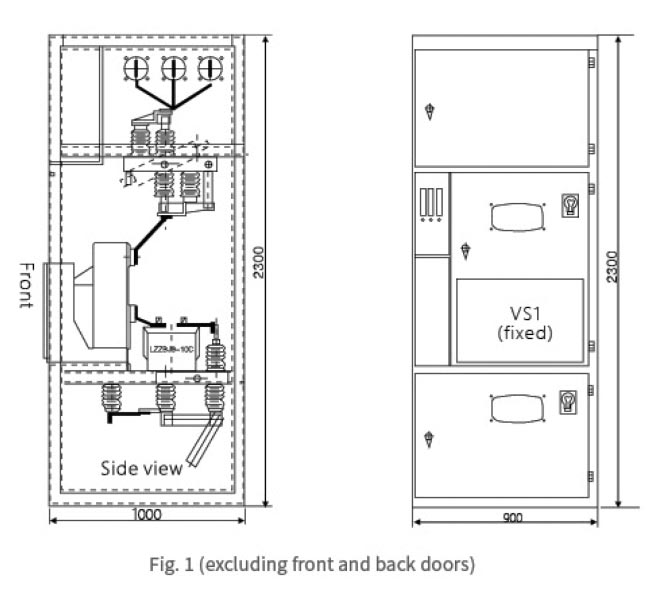

The switchgear has a metal-enclosed box-type structure,made by bending and welding angle bar,chanel steel,and thin steel plates.

A ventilation channel is installed inside the cabinet, an intake fan is installed at the bottom of the cabinet, and an exhaust fan is installed at the top of the cabinet. The transformers and bushings are fixed by bent plates made of stainless steel plates, which solves the problem of temperature rise under high current.

It is equipped with the circuit breaker for generator outlet protection inside. It is installed on a wheeled frame in a suspended manner, and the frame is fixed at the bottom of the cabinet. It can be moved out of the cabinet for maintenance.

The disconnector switch uses a worm wheel and worm gear operating mechanism, which requires small operating force and has a self-locking function.

There are mechanical and electrical interlocks between the disconnector switch and the circuit breaker, which is a reasonable and reliable design.

To meet the requirement of a large rated current value that the rated current can reach 5,000 A.

The vacuum circuit breaker has an integrated design and is equipped with a special spring operating mechanism. It has complete operating functions, high reliability,advanced and reasonable design, and low maintenance. This medium voltage circuit breaker has high breaking capacity,high making capacity,and dynamic and thermal stability performance.

The main circuit uses copper bars, which are placed vertically to improve the current-carrying capacity. The incoming and outgoing line methods are diverse and can be selected according to different schemes or customized for specific projects.

Environmental conditions

● Ambient temperature: maximum +40°C,minimum-15°C;
● Altitude: not more than 1000m;
● Relative humidity: daily average no more than 95%, monthly average no more than 90%;
● Earthquake magnitude: 8 or less;
● In place of no fire or explosion risk, no serious pollution, no chemical corrosion and no violent vibration.

Application Scenarios

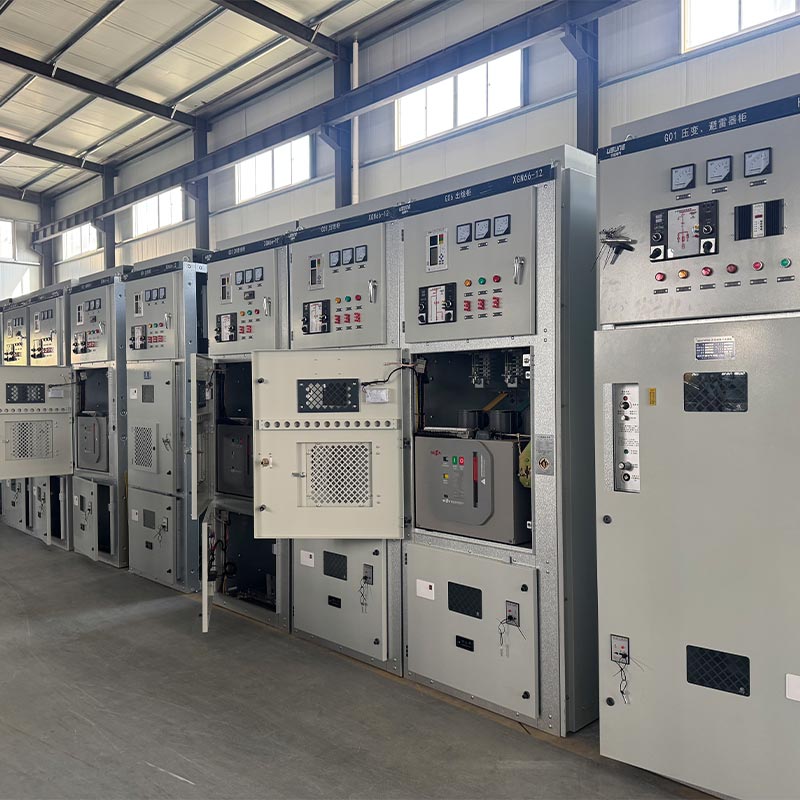

With excellent performance, the air insulated type ring main unit switchgear is widely used in energy (power plants, wind farms), industrial (metallurgy, petrochemical) and commercial-civil (high-rises, airports, hospitals) fields, ensuring stable power supply for electrical equipment.

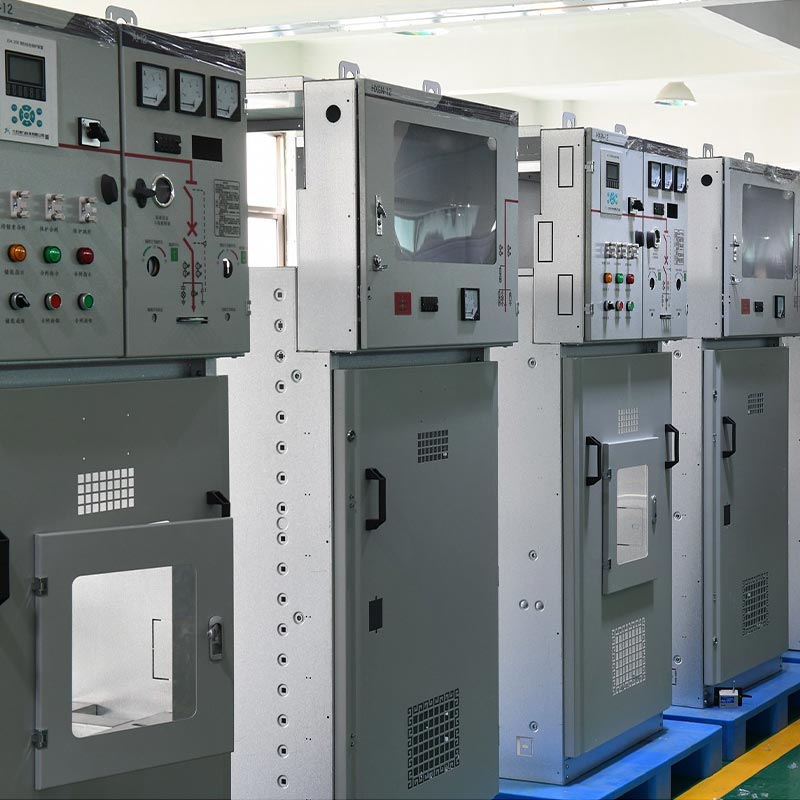

As a professional manufacturer, Usune has a complete R&D, production and sales system. This star product is popular at home and abroad, winning customer recognition with reliable quality and thoughtful service.
