11kv 630a Vacuum Circuit Breaker
  • 11kv 630a Vacuum Circuit Breaker11kv 630a Vacuum Circuit Breaker
  • 11kv 630a Vacuum Circuit Breaker11kv 630a Vacuum Circuit Breaker
  • 11kv 630a Vacuum Circuit Breaker11kv 630a Vacuum Circuit Breaker

11kv 630a Vacuum Circuit Breaker

Usune 11kv 630a Vacuum Circuit Breaker combines compact structural design, reliable vacuum interruption technology, flexible configuration options, and certified manufacturing quality. Designed for customers who require stable medium voltage switching performance with efficient system integration, this breaker provides a practical solution for industrial power distribution and electrical control projects.

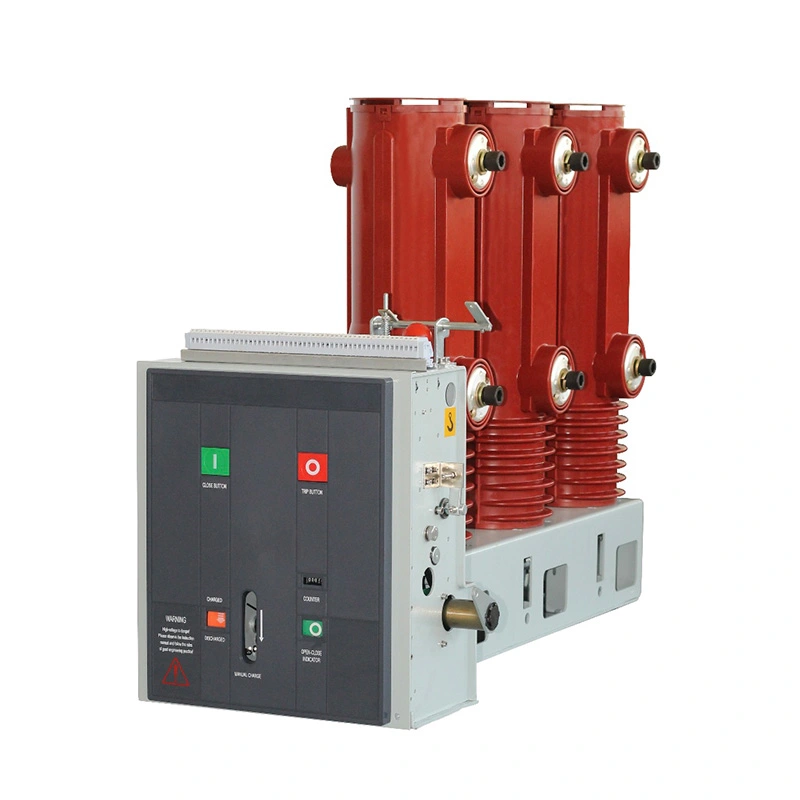

    The USUNE 11kv 630a Vacuum Circuit Breaker is an indoor, three-phase alternating-current device designed for 12kV-class distribution systems. It provides switching, control, and protection for incoming and outgoing feeders, transformers, motors, and capacitor banks in substations, industrial facilities, commercial buildings, and medium-voltage switchgear assemblies.

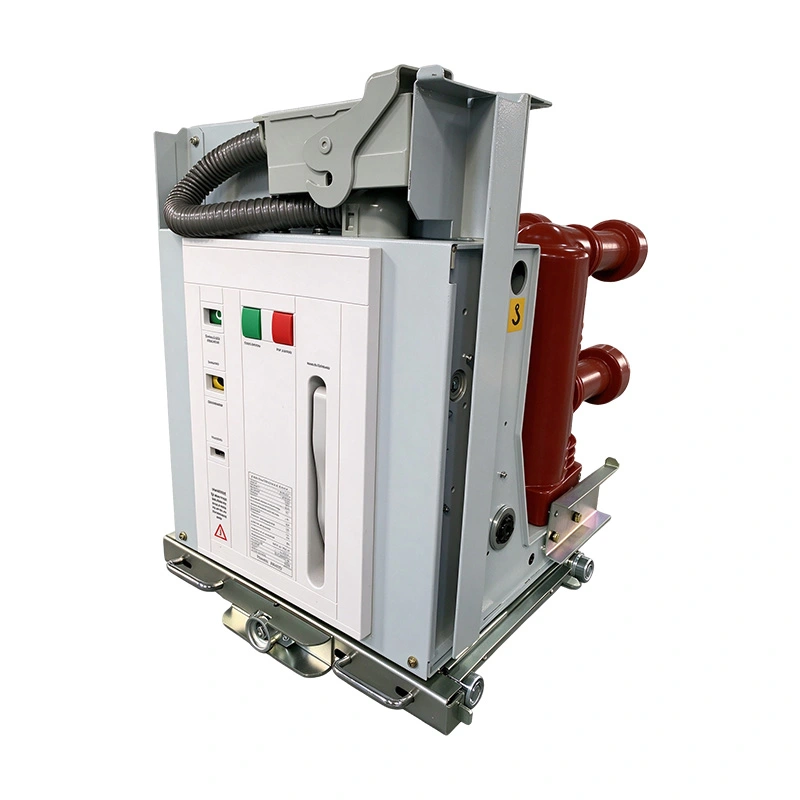

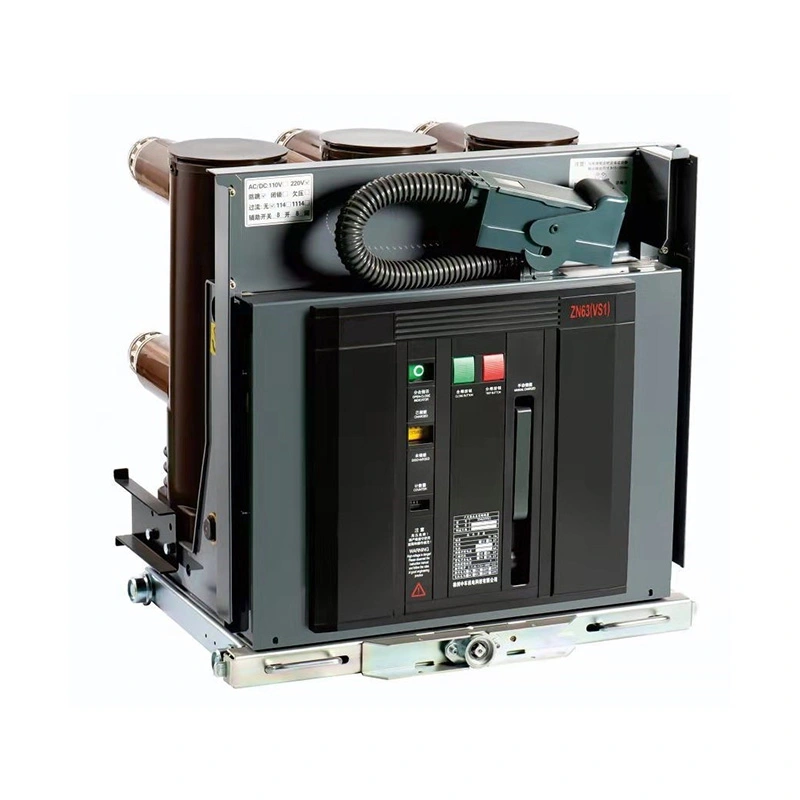

    The breaker integrates a vacuum interrupter with a spring operating mechanism. It can be supplied as a fixed-mounted unit or configured as a withdrawable handcart for compatible metal-clad switchgear. The 630A rating defines continuous current capacity; short-circuit breaking capacity, control voltage, phase spacing, and mounting dimensions must be confirmed for each project.

    USUNE supplies configurable VS1 indoor VCB solutions, technical drawings, and factory support for panel builders, contractors, and project procurement teams. Request the model-specific datasheet, outline drawing, and quotation to verify compatibility before ordering.


    11kv 630a Vacuum Circuit Breaker11kv 630a Vacuum Circuit Breaker

    Product model and the meaning

    11kv 630a Vacuum Circuit Breaker

    Reliable Indoor Protection and Switching for 11kV Distribution Systems

    USUNE supplies the VS1 11kV 630A vacuum circuit breaker as part of its indoor medium-voltage equipment range. This three-phase, alternating-current device is intended for 12kV-class indoor switchgear and supports switching, protection, and control duties in utility, industrial, and commercial power distribution projects.

    Its vacuum interrupter interrupts current without a continuous gas-burning or oil-based extinguishing medium, while the spring mechanism supports closing, opening, and energy-storage operation. Fixed and withdrawable configurations can be discussed according to panel design, maintenance access, and project requirements.

    Key Features

    12kV-class rating for 11kV systems: suitable for indoor 11kV distribution networks when insulation coordination and equipment ratings are verified.

    630A continuous current rating: supports selected feeder, transformer, motor, and capacitor-bank applications.

    Configurable breaking capacity: short-circuit rating, operating mechanism, and control voltage must be specified before production.

    Fixed or withdrawable mounting: supports different switchgear layouts and maintenance approaches.

    Spring operating mechanism: designed for controlled opening and closing operation.

    Switchgear interface support: technical drawings and dimensions are available to support compatible panel integration.

    Typical Applications

    The VS1 11kV 630A VCB is suitable for consideration in:

    indoor medium-voltage switchgear and metal-clad switchgear;

    substation incoming and outgoing feeders;

    transformer feeder and secondary protection;

    motor and capacitor-bank switching;

    industrial plants, mining facilities, commercial buildings, and infrastructure projects;

    OEM switchgear manufacturing and equipment replacement projects.

    VS1 Structure Drawing & Installation Dimensions

    11kv 630a Vacuum Circuit Breaker

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    11kv 630a Vacuum Circuit Breaker

    Product Comparison

    Comparison Item 630A Vacuum Circuit Breaker 1250A/1600A Vacuum Circuit Breaker
    Rated Current 630A Higher current capacity
    Equipment Size More compact Requires larger conductive structure
    Project Cost More economical for medium loads Higher investment
    Cabinet Integration Easier for standard systems Requires stronger system design
    Suitable Selection Medium voltage distribution High-power industrial systems

    The 630A model is suitable for customers who need reliable medium voltage protection with efficient system configuration. Higher current models are more appropriate when the electrical load demand requires greater capacity.

    Why Buyers Work With USUNE

    USUNE identifies itself as a manufacturer based in Yueqing, Wenzhou, China, with a 4,300㎡ production base and in-house R&D, production, and sales activities. The company’s product scope includes indoor and outdoor high-voltage breakers, switchgear panels, epoxy resin insulators, and instrument transformers.

    For this product page, emphasize these buyer-relevant capabilities:

    configurable breaker and panel-interface options;

    factory communication and technical-documentation support;

    drawings, model verification, and pre-order engineering checks;

    container and project-order handling.

    FAQ

    Why choose a 630A vacuum circuit breaker instead of a higher current model?

    A 630A model is suitable when the electrical load requirement is within medium current ranges. It provides reliable protection performance while offering advantages in equipment size, system cost, and cabinet integration compared with larger capacity breakers.

    What makes vacuum interruption technology suitable for medium voltage systems?

    Vacuum interruption technology provides rapid arc extinguishing and strong insulation recovery performance. It helps improve switching reliability and reduces the impact of environmental factors compared with traditional interruption methods.

    Can this breaker be customized according to different control requirements?

    Yes. The breaker supports different control configurations, including auxiliary switches, protection devices, energy storage systems, and interlocking components according to project requirements.

    How does the 630A model help reduce project costs?

    By matching the breaker capacity with the actual electrical load, customers can avoid oversized equipment investment. The compact design and flexible integration also help reduce engineering and installation complexity.

    What factors should engineers consider before selecting this breaker?

    Engineers should consider system voltage level, current demand, short circuit requirements, switchgear compatibility, control configuration, and future expansion needs before making the final selection.
