15 Kv 1250a Vcb Vacuum Circuit Breaker
  • 15 Kv 1250a Vcb Vacuum Circuit Breaker15 Kv 1250a Vcb Vacuum Circuit Breaker
  • 15 Kv 1250a Vcb Vacuum Circuit Breaker15 Kv 1250a Vcb Vacuum Circuit Breaker
  • 15 Kv 1250a Vcb Vacuum Circuit Breaker15 Kv 1250a Vcb Vacuum Circuit Breaker

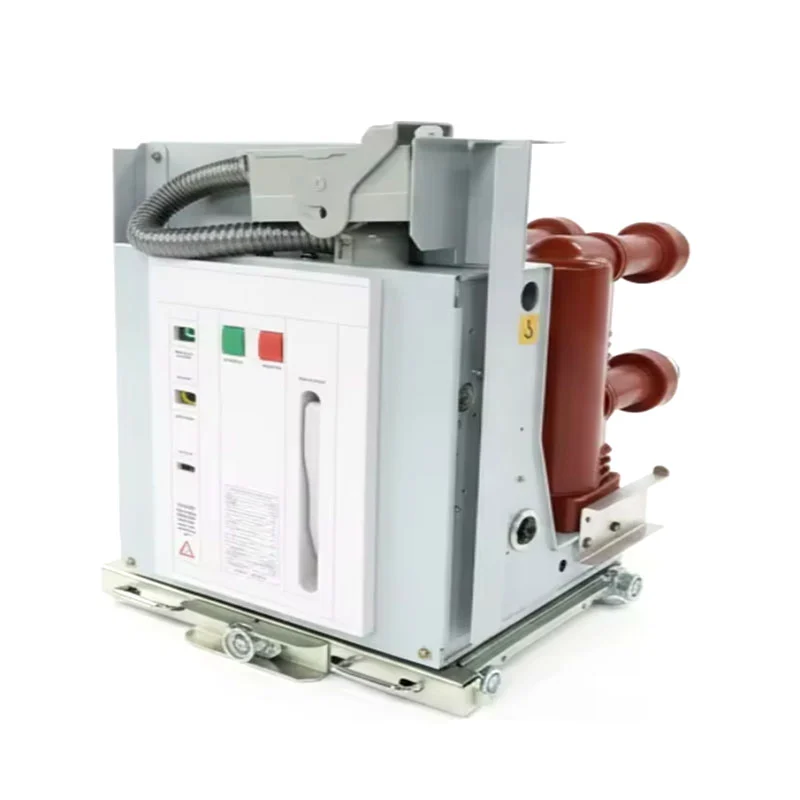

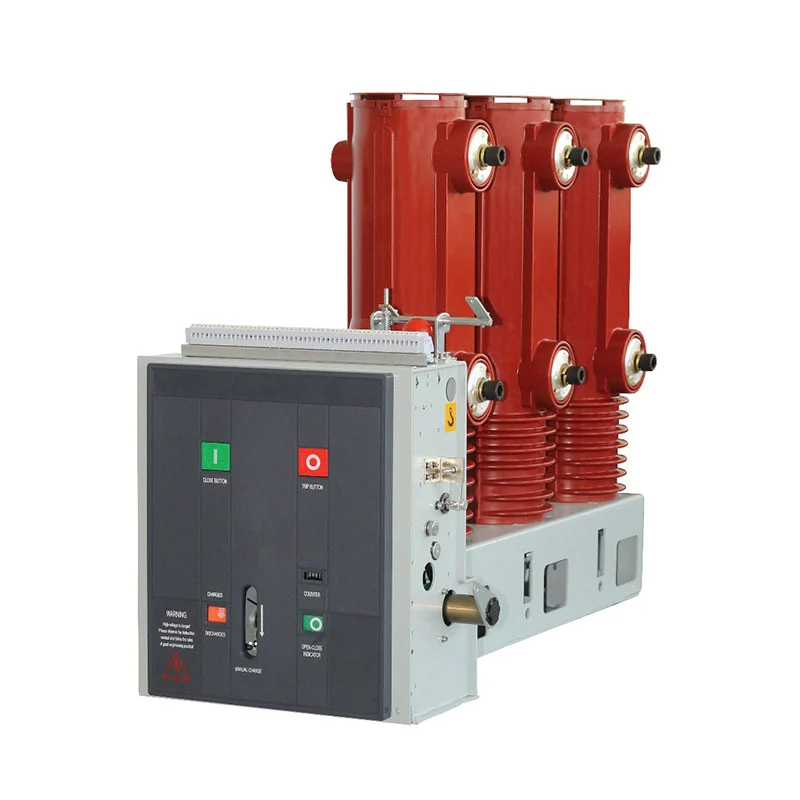

15 Kv 1250a Vcb Vacuum Circuit Breaker

Engineered as a high-performance medium-voltage switching apparatus, the Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker serves industrial power distribution and energy infrastructure duties. Its 1250 A rating, dependable vacuum-based current interruption, robust tolerance to challenging environments, and conformity with international standards make it a safe, stable, and efficient choice for demanding electrical networks, including plant distribution systems and energy facilities.

    The Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker addresses indoor medium-voltage installations that call for elevated current-carrying capability and dependable switching. Combining advanced vacuum interruption, a mechanically robust construction, and conformity with IEC and GB requirements, this device offers a practical choice for industrial facilities, transformer stations, generating plants, and extensive power distribution networks, where continuity and operational safety are critical.

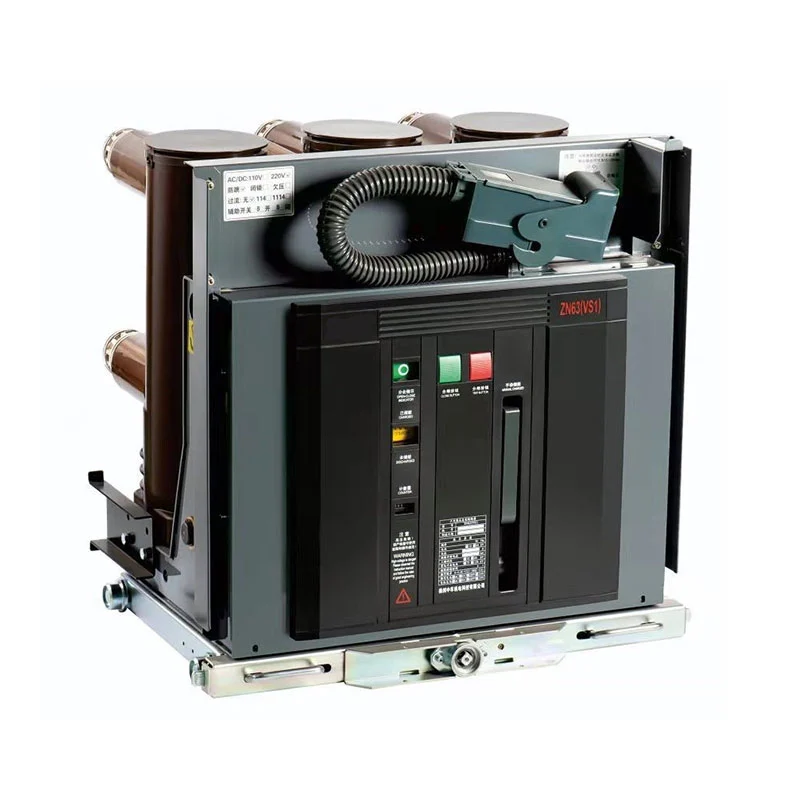

    15 Kv 1250a Vcb Vacuum Circuit Breaker15 Kv 1250a Vcb Vacuum Circuit Breaker

    High Current Capacity

    1250A Load Capability

    Large-scale electrical systems often require circuit breakers with higher current-carrying capability to support continuous operation. The Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker is designed with a rated current of 1250A, making it suitable for applications with higher power demand.

    The optimized conductive structure improves current transmission efficiency and helps control temperature rise during operation. This allows the equipment to maintain stable electrical performance in industrial environments where reliability and continuous power supply are critical.

    Short Circuit Protection

    Fault interruption capability is a key factor when selecting medium-voltage switching equipment. The circuit breaker adopts vacuum arc extinguishing technology to quickly interrupt abnormal currents and protect important electrical equipment such as transformers, motors, and generators.

    By providing reliable fault isolation, the equipment helps reduce the impact of short-circuit events and improves overall power system safety.

    Feature Benefit
    1250A rated current Suitable for higher-load electrical systems
    Vacuum interruption technology Fast and reliable fault clearing
    Strong breaking capability Improves system protection
    Durable structure Supports long-term operation

    Vacuum Interruption Technology

    The vacuum interrupter, as the core component responsible for electrical isolation and fault interruption, rapidly extinguishes arcs within a high-vacuum environment without requiring additional insulating oil or gas, thereby delivering excellent electrical endurance and stable interruption performance throughout the equipment’s service life; moreover, since unplanned downtime in industrial power systems can lead to significant production losses, the breaker’s internal design ensures reliable opening and closing during repeated switching operations, making the 15 Kv 1250a Vcb Vacuum Circuit Breaker suitable for applications requiring frequent switching, stable protection, and long-term operational reliability while helping reduce the risk of costly supply interruptions.

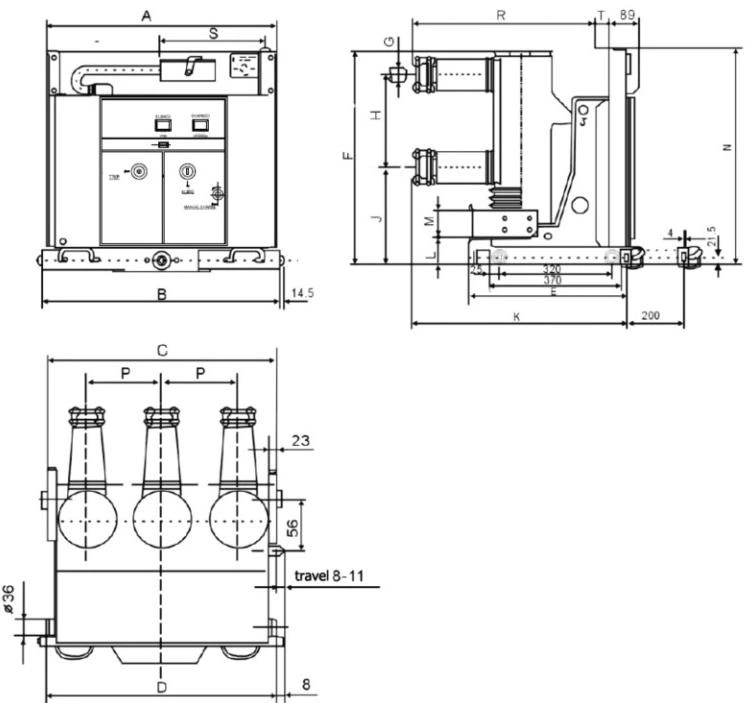

    VS1 Structure Drawing & Installation Dimensions

    15 Kv 1250a Vcb Vacuum Circuit Breaker

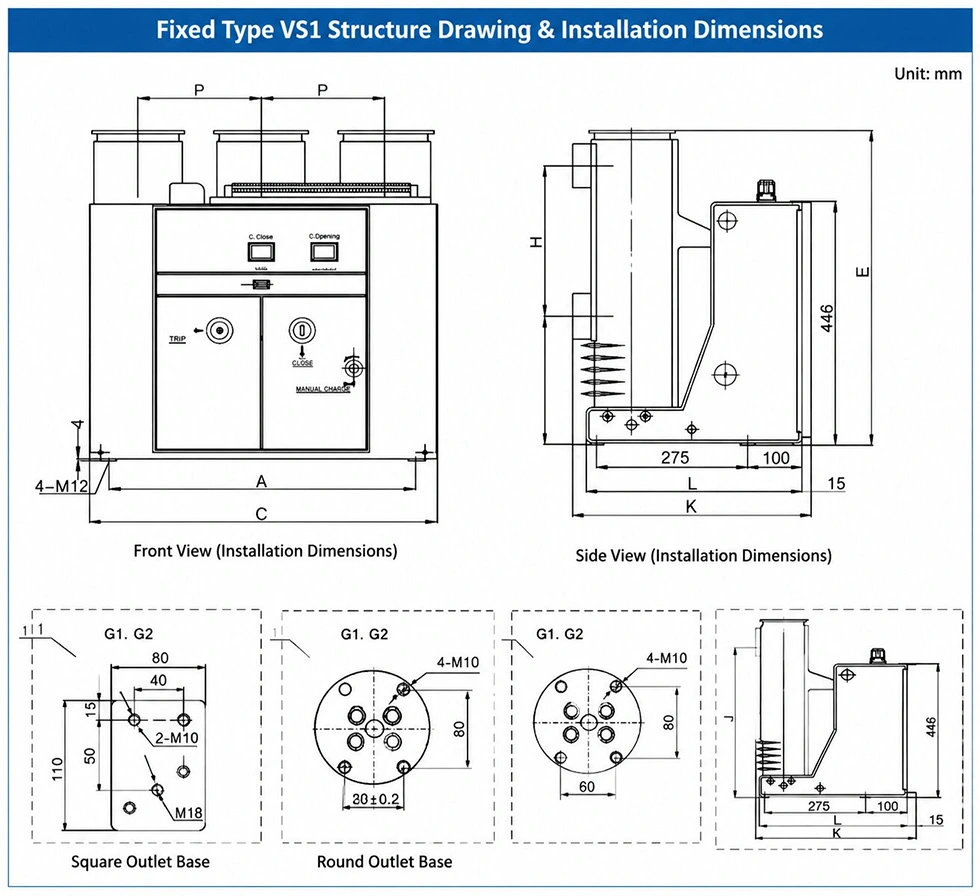

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    15 Kv 1250a Vcb Vacuum Circuit Breaker

    Product Comparison

    Different Current Ratings for Different Applications

    Medium-voltage projects usually have different requirements depending on load capacity, system scale, and future expansion plans. Choosing the correct rated current helps improve system efficiency and avoid unnecessary equipment limitations.

    The following comparison shows the differences between common vacuum circuit breaker configurations.

    Comparison Item 12kV 630A Vacuum Circuit Breaker 15kV 1250A Vacuum Circuit Breaker
    Rated Voltage 12kV class 15kV class
    Rated Current 630A 1250A
    Load Capacity Suitable for general distribution systems Suitable for higher-power industrial systems
    Application Scale Small and medium electrical projects Large industrial and energy projects
    Protection Requirement Standard fault protection Higher-level fault interruption requirements
    Switching Demand Normal switching operations Frequent switching applications
    Typical Applications Commercial facilities, small substations Power plants, factories, mining, large substations

    Advantages for Large Power Projects

    Compared with lower-current models, the Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker provides greater current handling capability and stronger adaptability for high-demand electrical systems.

    For projects involving large motors, transformers, production equipment, and continuous power distribution, selecting a higher-capacity vacuum circuit breaker helps improve operational stability and provides additional capacity for future system upgrades.

    Environmental Adaptability

    Indoor Operating Conditions

    Electrical equipment performance can be affected by temperature, humidity, altitude, and surrounding conditions. This vacuum circuit breaker is designed according to specific environmental requirements to ensure stable operation in indoor medium-voltage applications.

    Environmental Parameter Requirement
    Ambient Temperature -15℃ to +40℃
    Maximum Altitude ≤1000m
    Daily Average Humidity ≤95%
    Monthly Average Humidity ≤90%
    Earthquake Intensity ≤10 degrees

    Reliable Operation Environment

    The product is suitable for indoor locations without fire hazards, explosion risks, severe pollution, chemical corrosion, or intense vibration.

    By selecting equipment according to environmental conditions, users can improve system reliability and reduce potential failures caused by unsuitable installation environments.

    Mechanical Reliability

    At Usune, we recognize that the mechanical operating system directly determines how long a vacuum breaker lasts and how reliably it switches, so our Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker is built with a proven operating mechanism that delivers stable opening and closing; after maintenance—especially component replacement or mechanical adjustment—we recommend testing switching performance against the specified technical conditions before returning the unit to service, and because many industrial facilities depend on frequent operations for equipment control and system protection, the breaker’s rugged mechanical structure maintains stable performance through repeated switching cycles, making it well suited to distribution systems that require both operational flexibility and dependable protection.

    Standard Compliance

    IEC and GB Standards

    For international power projects, compliance with recognized standards is an important purchasing requirement. Usune vacuum circuit breakers are manufactured according to strict technical specifications and meet major electrical industry standards.

    Standard Description
    GB1984 AC High Voltage Circuit Breaker Standard
    GB/T11022 Common Technical Requirements for High Voltage Switchgear and Control Equipment
    JB3855 Indoor AC High Voltage Vacuum Circuit Breaker Standard
    DL/T402 Technical Conditions for AC High Voltage Circuit Breaker Ordering
    IEC56 AC High Voltage Circuit Breaker Standard

    Usune operates under ISO 9001 quality management system, ISO 14001 environmental management system, and ISO 45001 occupational health and safety management system.

    The products comply with IEC and GB standards and have CE certification, supporting international electrical project requirements.

    Application Areas

    In medium-voltage installations where dependable switching control and fault clearance are essential, our Usune 15 Kv 1250a Vcb Vacuum Circuit Breaker is widely employed. We commonly supply it for manufacturing plants, mining operations, power generation facilities, transformer substations, and expansive electrical distribution networks. In one domestic industrial power scheme, where dependable switching apparatus was needed for a medium-voltage distribution system, we adopted our VS1 family of indoor high-voltage vacuum breakers; this strengthened protective performance and achieved steady service under continuous duty. The equipment we installed provided dependable switching control while lowering exposure to electrical faults and operational disruption.

    Technical Specifications

    Parameter Specification
    Product Type Indoor High Voltage Vacuum Circuit Breaker
    Rated Voltage 15kV Class
    Rated Current 1250A
    Frequency AC System
    Installation Environment Indoor
    Interruption Method Vacuum Arc Interruption
    Applicable Standards IEC / GB
    Certification CE

    FAQ

    What is the advantage of a 15kV vacuum circuit breaker?

    A 15kV vacuum circuit breaker provides reliable fault interruption, high electrical endurance, and stable performance for medium-voltage power distribution systems.

    Why choose a 1250A rated current circuit breaker?

    A 1250A model is suitable for electrical systems with higher load requirements, including industrial plants, substations, and energy infrastructure projects.

    What operating conditions are suitable for this product?

    The circuit breaker is designed for indoor environments with temperatures from -15℃ to +40℃, altitude below 1000m, and controlled humidity conditions.

    Does this product meet international standards?

    Yes. The product complies with IEC and GB standards and is manufactured under ISO 9001, ISO 14001, and ISO 45001 management systems with CE certification.
