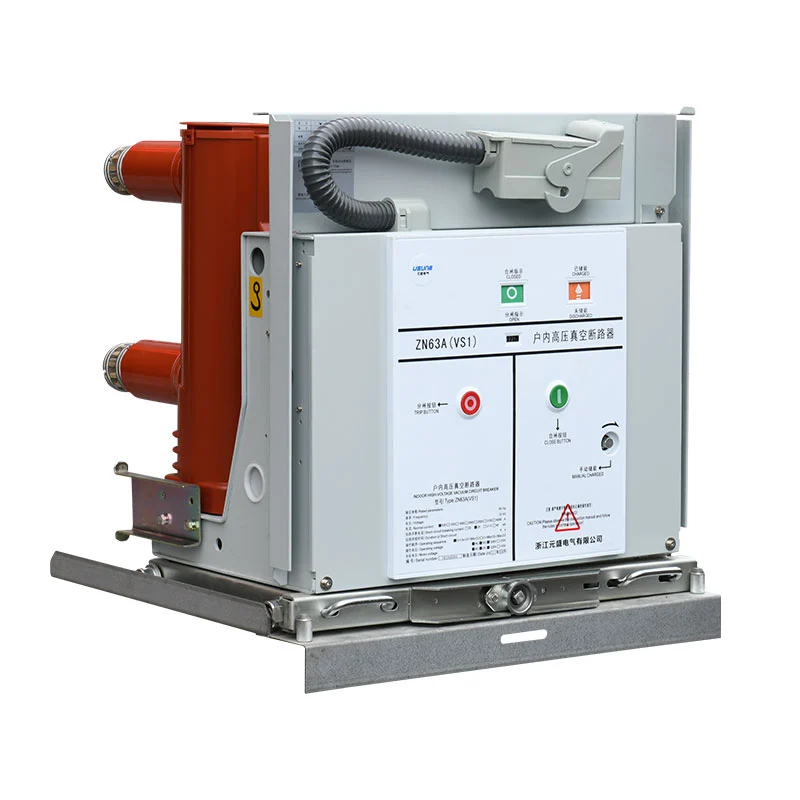

11kv 630a Vcb Vacuum Circuit Breaker

The Usune 11kv 630a Vcb Vacuum Circuit Breaker integrates solid insulation, high-performance vacuum interruption, intelligent control, and a flexible installation design, delivering a dependable solution for medium-voltage power distribution systems. Backed by ISO 9001, ISO 14001, and ISO 45001 management systems as well as IEC, GB, and CE certifications, it meets the safety, efficiency, and long-term reliability requirements of industrial power projects worldwide.

    The Usune  11kv 630a Vcb Vacuum Circuit Breaker is intended for indoor MV distribution service where dependable protection and frequent operation are required. By bringing together vacuum-based current interruption, solid insulation, and intelligent operating mechanisms, it safeguards industrial sites, substations, power plants, and comparable electrical infrastructure.

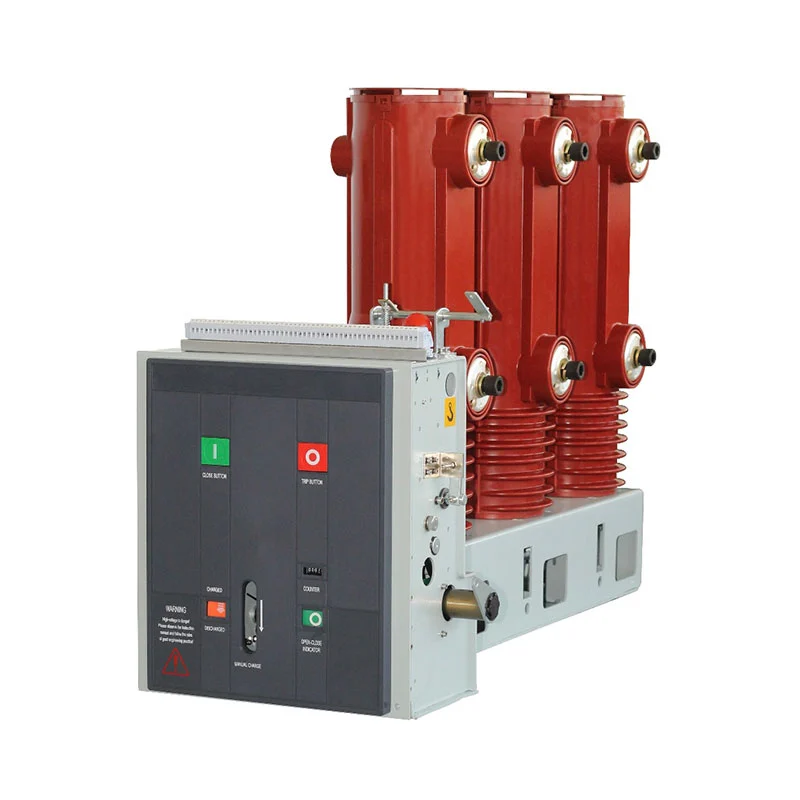

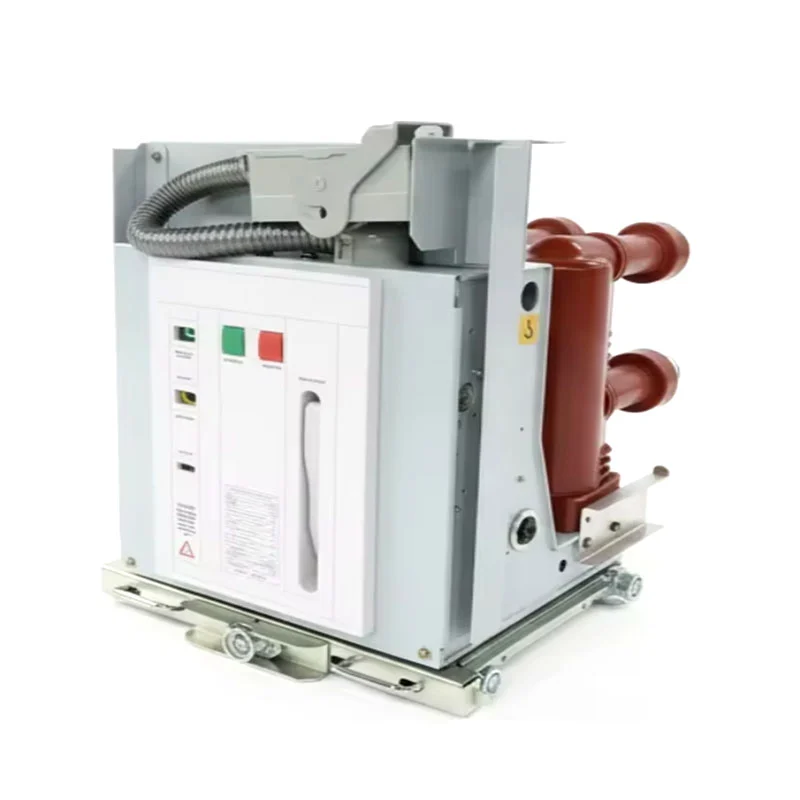

    11kv 630a Vcb Vacuum Circuit Breaker11kv 630a Vcb Vacuum Circuit Breaker

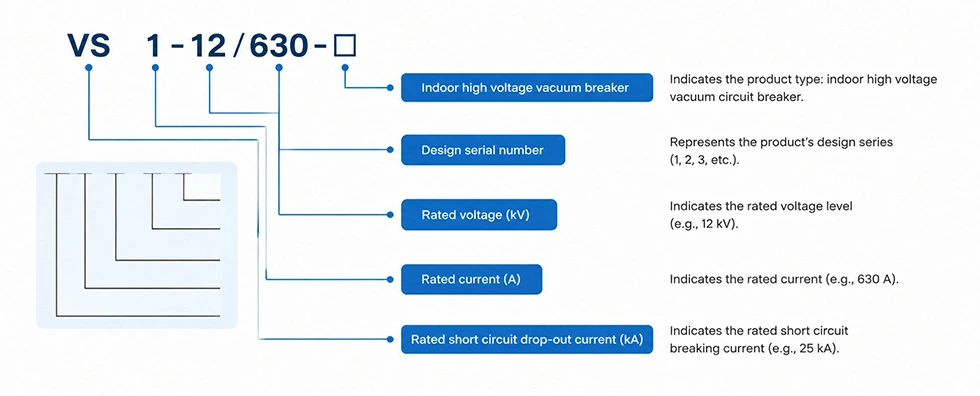

    Product model and the meaning

    11kv 630a Vcb Vacuum Circuit Breaker

    Solid Insulation Design

    Integrated Sealed Pole

    Using advanced epoxy casting, the Usune 11 kV/630 A VCB forms a single sealed pole in which the vacuum interrupt chamber, current-carrying path, and insulating support are consolidated. This monolithic construction enhances dielectric dependability and shields interior parts from dust and moisture. Relative to conventional arrangements, it lowers the likelihood of insulation breakdown and contributes to longer equipment life.


    Heat Dissipation Structure

    The solid-insulation architecture is paired with a self-circulating ventilation approach to boost heat removal. As a result, temperature rise is controlled under sustained duty and repeated switching, maintaining consistent electrical behavior in indoor medium-voltage installations.

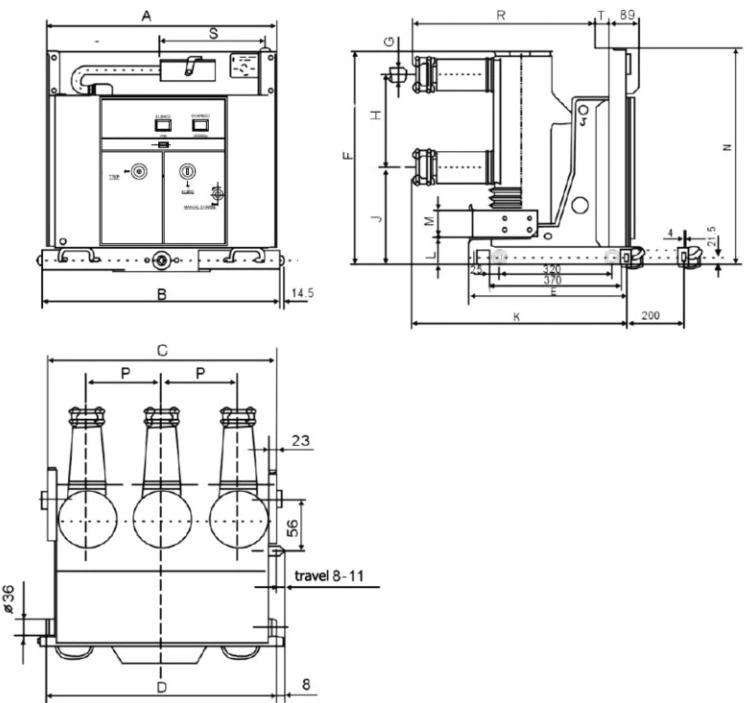

    VS1 Structure Drawing & Installation Dimensions

    11kv 630a Vcb Vacuum Circuit Breaker

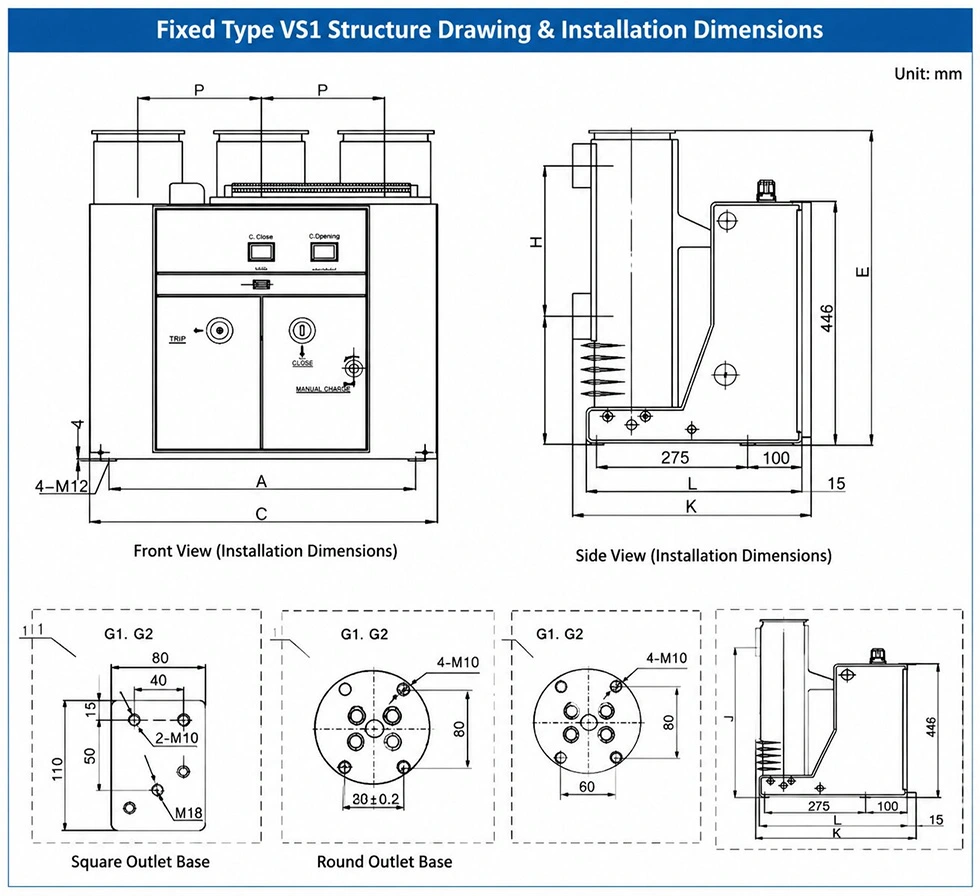

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    11kv 630a Vcb Vacuum Circuit Breaker

    Vacuum Interruption Performance

    Reliable Arc Extinguishing

    The vacuum interrupter is the key component for safe current interruption. Usune 11kv 630a Vcb Vacuum Circuit Breaker uses vacuum arc interruption technology to achieve fast fault breaking, high electrical endurance, and stable operation.

    The product is suitable for three-phase AC 50Hz systems with a rated voltage of 12kV and rated current of 630A, meeting the requirements of industrial power distribution and protection systems.

    Feature Benefit
    Vacuum interruption technology Fast and reliable fault current breaking
    Solid insulation structure Improved environmental resistance
    Long-life vacuum interrupter Reduced maintenance frequency
    Integrated design Higher reliability and easier installation

    Maintenance-Free Operation

    Permanent Magnet Mechanism

    Where reduced servicing is a priority, the 11kv 630a Vcb Vacuum Circuit Breaker may be supplied with a highly dependable permanent-magnet actuating mechanism. Such an arrangement cuts mechanical abrasion and enhances operational consistency, making it suitable for duties that call for extended intervals between maintenance.


    Electronic Control System

    In the 11kv 630a Vcb Vacuum Circuit Breaker, photoelectric proximity sensors replace conventional auxiliary contacts within the electronic control section, and an intelligent controller is used to raise switching precision. This approach mitigates component ageing and contributes to greater dependability of the overall switching system.


    Installation Compatibility

    Fixed and Handcart Types

    The Usune 11kv 630a Vcb Vacuum Circuit Breaker supports both fixed installation and handcart configurations, providing flexibility for different project requirements.

    It can be installed in KYN28A-12 (GZS) handcart switch cabinets and XGN fixed switchgear, making it suitable for various indoor medium-voltage systems.

    Installation Type Application
    Fixed installation Permanent indoor switchgear systems
    Handcart installation Removable switchgear applications
    KYN28A-12 (GZS) cabinet Medium-voltage distribution systems
    XGN switchgear Fixed power distribution equipment

    Protection Performance

    Short-Circuit Protection

    In medium-voltage power systems, the ability to quickly isolate faults directly affects the safety of electrical equipment and continuous production. Usune 11kv 630a Vcb Vacuum Circuit Breaker is designed with reliable vacuum interruption technology to quickly break abnormal current conditions and protect downstream electrical equipment.

    The vacuum interrupter provides excellent arc extinguishing performance, reducing the impact of short-circuit currents on switchgear components. This makes the circuit breaker suitable for industrial environments where power stability and equipment protection are critical.

    Stable Switching Performance

    Frequent switching operations can cause mechanical stress and electrical wear on conventional switching devices. The VS1-12 series vacuum circuit breaker adopts a highly reliable operating mechanism and optimized structural design to maintain stable performance during repeated opening and closing operations.

    This feature is especially valuable for manufacturing plants, substations, and power distribution systems that require frequent switching and reliable control.

    Protection Feature Value for Users
    Fast vacuum arc extinction Improves fault clearing speed
    Reliable breaking capability Protects electrical equipment from damage
    Stable switching operation Suitable for frequent operation conditions
    High insulation performance Enhances system safety

    Lifecycle Cost

    Reduced Maintenance Requirements

    For industrial users, equipment downtime and maintenance expenses directly affect operating costs. The integrated sealed pole design of Usune 11kv 630a Vcb Vacuum Circuit Breaker reduces the exposure of internal components to external environmental factors.

    The long-life vacuum interrupter chamber, epoxy sealing structure, and maintenance-friendly operating mechanism help reduce routine inspection frequency and improve equipment availability.

    Easy Project Integration

    Power distribution projects often require equipment that can be integrated into existing systems without major modifications. The circuit breaker supports flexible installation configurations and can be matched with common indoor switchgear systems.

    Its compatibility with KYN28A-12 (GZS) handcart switch cabinets and XGN fixed switchgear allows engineering companies to select suitable configurations according to different project designs.

    Lifecycle Advantage Project Benefit
    Long service life components Reduced replacement frequency
    Maintenance-friendly structure Lower operation costs
    Flexible installation options Easier system integration
    Standardized design Simplified project planning

    Application Areas

    Industrial Power Systems

    The VS1-12 series of indoor high-voltage vacuum circuit breakers is widely adopted in industrial and energy-related projects where dependable circuit switching and protective performance are essential. Its typical application scope covers mining and manufacturing enterprises, power generation plants, substations, electrical facilities, and other medium-voltage distribution scenarios—especially those involving frequent switching operations, continuous production demands, and limited maintenance windows.


    Application Case

    A domestic industrial power project required a dependable switching solution for its 12 kV indoor distribution system. The project selected VS1-12 series vacuum circuit breakers featuring integrated solid insulation technology. This choice helped improve insulation stability, reduce maintenance requirements and servicing frequency, and maintain reliable operation under frequent switching conditions, thereby supporting continuity of industrial power supply and reducing operational interruptions.

    Technical Specifications

    Parameter Specification
    Product Type Indoor High Voltage Vacuum Circuit Breaker
    Rated Voltage 12kV
    Rated Current 630A
    Frequency 50Hz
    Phase Three-phase AC
    Installation Type Fixed / Handcart
    Insulation Type Solid Epoxy Sealed Pole
    Application Indoor Medium Voltage Switchgear

    FAQ

    What is the advantage of a vacuum circuit breaker?

    A vacuum circuit breaker provides fast arc interruption, high insulation performance, long service life, and lower maintenance requirements.

    Where can this circuit breaker be used?

    It is mainly used in industrial plants, power stations, substations, mining enterprises, and indoor medium-voltage distribution systems.

    Does this product require frequent maintenance?

    The sealed pole structure, long-life vacuum interrupter, and reliable operating mechanism help reduce maintenance frequency.

    Can it match existing switchgear?

    Yes. It can be used with KYN28A-12 (GZS) handcart switch cabinets and XGN fixed switchgear.
