A reliable power supply is the foundation of industrial production, commercial operations, and infrastructure development. Choosing the right transformer capacity and cooling method directly affects energy efficiency, operational safety, and equipment lifespan. A 630kVA Oil Immersed Self Cooled Transformer offers a balanced solution for medium-scale power distribution by combining stable voltage conversion, excellent heat dissipation, low maintenance requirements, and long-term durability.
This article explains how a 630kVA oil immersed self cooled transformer works, why it is widely used in power systems, what challenges customers often face during transformer selection, and how businesses can choose a dependable transformer solution from professional manufacturers such as Zhejiang Usune Electric Co., Ltd..

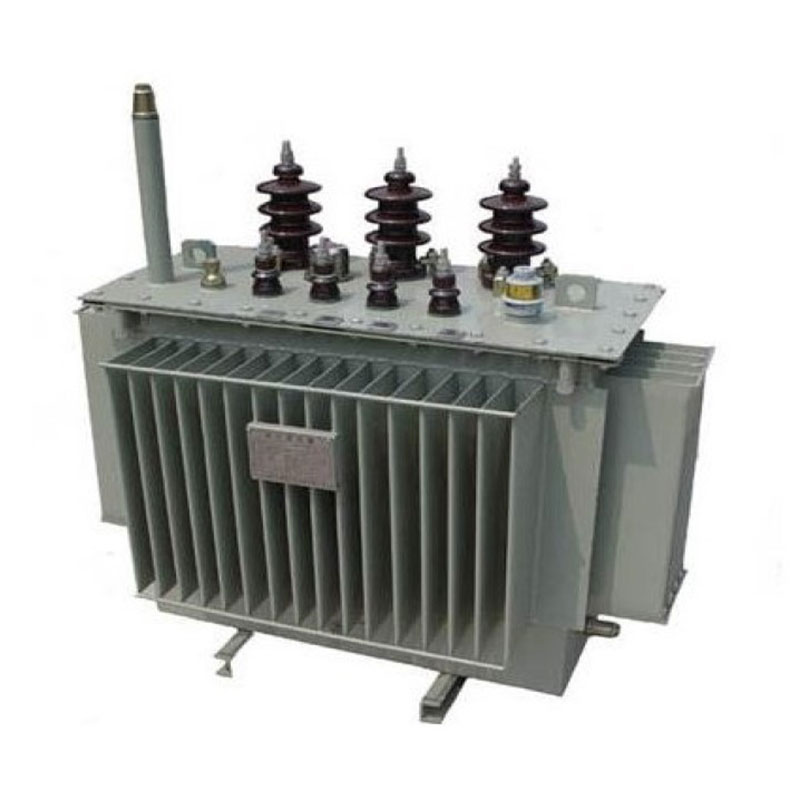

A 630kVA Oil Immersed Self Cooled Transformer is an electrical transformer designed to convert voltage levels while using insulating oil as both a cooling and insulation medium. With a rated capacity of 630 kilovolt-amperes (kVA), it is commonly applied in industrial facilities, commercial buildings, renewable energy projects, and distribution networks requiring stable medium-power supply.
Unlike dry-type transformers that rely on air circulation and solid insulation materials, oil immersed transformers use transformer oil to absorb heat generated by the core and winding system. The heated oil naturally circulates through the tank and transfers heat to the external environment through radiators, creating a self-cooling process without requiring additional cooling fans.
| Parameter | Description |
|---|---|
| Rated Capacity | 630kVA |
| Cooling Method | Oil Immersed Natural Cooling |
| Insulation Medium | High-quality transformer oil |
| Application | Industrial and commercial power distribution |
| Main Benefits | High reliability, efficient heat dissipation, long service life |
For customers who need continuous power operation with minimal downtime, this transformer type provides a dependable balance between performance and investment cost.
The operating principle of a 630kVA oil immersed self cooled transformer is based on electromagnetic induction. When alternating current passes through the primary winding, a magnetic field is generated in the iron core. This magnetic field induces voltage in the secondary winding, allowing the transformer to increase or decrease voltage according to system requirements.
During operation, electrical resistance causes heat generation inside the transformer. Without effective heat management, excessive temperature can accelerate insulation aging and reduce equipment reliability. The oil cooling system solves this problem through several processes:
This simple but effective cooling structure reduces mechanical complexity and improves operational stability.
A 630kVA transformer is designed for applications requiring consistent electricity supply. It helps reduce voltage fluctuations and ensures electrical equipment receives appropriate power levels.
Oil provides better thermal conductivity compared with air. The cooling oil efficiently removes heat from internal components, helping maintain transformer performance under continuous operation.
High-quality oil immersed transformers can operate reliably for decades when properly maintained. The oil insulation system protects internal components from moisture, oxidation, and electrical stress.
The self-cooled design eliminates the need for additional cooling fans and related control systems, reducing potential failure points and maintenance costs.
| Customer Challenge | Transformer Solution |
|---|---|
| High operating temperature | Efficient oil-based heat transfer system |
| Frequent maintenance costs | Simple natural cooling structure |
| Power instability | Reliable voltage conversion performance |
| Long-term operation requirements | Durable insulation and robust construction |
The versatility of a 630kVA oil immersed self cooled transformer makes it suitable for many industries where reliable electricity distribution is essential.
For projects requiring dependable medium-capacity power distribution, a 630kVA transformer is often an ideal choice due to its balance of capacity, efficiency, and cost effectiveness.
Selecting a transformer requires careful consideration of electrical requirements, environmental conditions, and future expansion plans. Many customers experience problems because they focus only on rated capacity while ignoring other important factors.
| Selection Factor | Key Considerations |
|---|---|
| Load Requirement | Calculate current and future electricity demand |
| Voltage Level | Match primary and secondary voltage requirements |
| Installation Environment | Consider temperature, humidity, and outdoor conditions |
| Efficiency Rating | Select equipment with optimized energy performance |
| Manufacturer Reliability | Choose suppliers with proven production capabilities |
Working with an experienced transformer manufacturer helps customers avoid incorrect specifications, unnecessary energy losses, and unexpected maintenance problems.
| Feature | Oil Immersed Self Cooled Transformer | Dry Type Transformer |
|---|---|---|
| Cooling Medium | Transformer oil | Air and solid insulation materials |
| Heat Dissipation | Excellent | Moderate |
| Maintenance | Low maintenance requirements | Requires dust and ventilation management |
| Typical Application | Industrial and outdoor distribution | Indoor buildings and special environments |
| Cost Efficiency | Suitable for large-scale continuous operation | Higher initial investment in some cases |
Although oil immersed transformers are designed for reliability, regular inspection is essential to maintain safe operation.
Preventive maintenance helps identify potential problems before they become costly failures.
With proper installation and maintenance, a high-quality 630kVA oil immersed self cooled transformer can typically provide several decades of reliable operation.
Transformer oil provides excellent electrical insulation and thermal conductivity, allowing the transformer to operate safely while effectively removing heat.
Yes. Oil immersed transformers are commonly installed outdoors because their sealed tank construction provides strong environmental protection.
Customers should evaluate manufacturing experience, product quality control, technical support capability, and customization services before purchasing.
A 630kVA Oil Immersed Self Cooled Transformer provides a practical and reliable solution for modern power distribution requirements. Its efficient cooling performance, durable insulation system, and stable operation make it suitable for various industrial and commercial applications.
Choosing the right transformer supplier is equally important as selecting the correct specifications. Zhejiang Usune Electric Co., Ltd. focuses on delivering dependable transformer solutions with professional manufacturing expertise and quality assurance.
If you are looking for a reliable 630kVA Oil Immersed Self Cooled Transformer for your power distribution project, contact us today. Zhejiang Usune Electric Co., Ltd. can provide professional solutions tailored to your electrical requirements.
