VS1-12 Indoor Vacuum Circuit Breaker

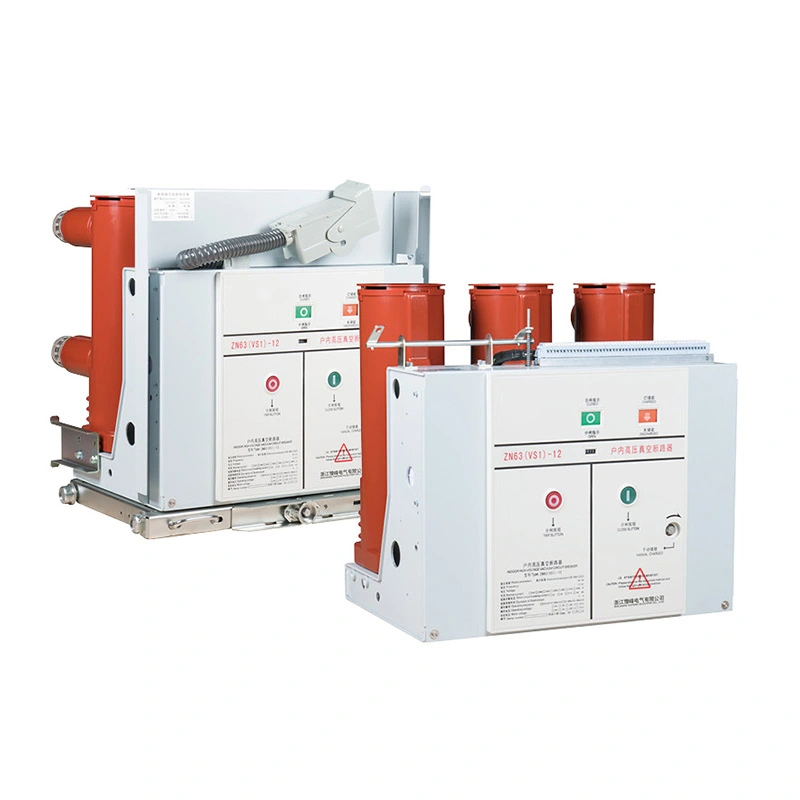

Usune VS1-12 Indoor Vacuum Circuit Breaker is a 12kV handcart-type medium-voltage switching solution designed for modern indoor switchgear. It combines flexible cabinet compatibility, precise handcart positioning, reliable interlocking protection, and stable vacuum interruption technology to improve power system safety and operational efficiency.

    The Usune VS1-12 Indoor Vacuum Circuit Breaker is a three-phase AC 50 Hz indoor switching device designed for 12 kV distribution systems. It integrates vacuum interrupters with a spring stored-energy operating mechanism in a single compact body, and is used for the control and protection of electrical facilities in industrial plants, power stations, substations, and commercial buildings.

    VS1-12 Indoor Vacuum Circuit BreakerVS1-12 Indoor Vacuum Circuit Breaker

    Product model and the meaning

    VS1-12 Indoor Vacuum Circuit Breaker

    Product Overview

    USUNE VS1-12 Indoor Vacuum Circuit Breaker integrates vacuum interrupters with an integrated spring stored-energy mechanism. The arc is quenched inside sealed vacuum bottles — no oil, no SF₆, low maintenance. Rated current, short-circuit breaking capacity, control voltage, pole spacing, and outline dimensions are configured per project instead of being locked to a single variant.

    Each unit ships with model-specific datasheet, outline drawing, wiring diagram, and factory routine-test record, supporting panel builders, EPCs, and utility procurement from inquiry to commissioning.


    Cabinet Width Rated Current Rated Short Circuit Breaking Current
    650mm 630A 20kA-31.5kA
    650mm 1250A 20kA-31.5kA
    800mm 630A 20kA-31.5kA
    800mm 1250A 20kA-40kA
    800mm 1600A 31.5kA-40kA
    1000mm 630A-1600A 20kA-40kA
    1000mm 2500A-5000A 31.5kA-50kA

    The optimized installation structure helps improve compatibility with different switchgear solutions and simplifies engineering design.

    VS1-12 Indoor Vacuum Circuit Breaker

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    VS1-12 Indoor Vacuum Circuit Breaker

    Fixed vs Withdrawable

    The VS1-12 Indoor Vacuum Circuit Breaker is supplied in two mounting forms:

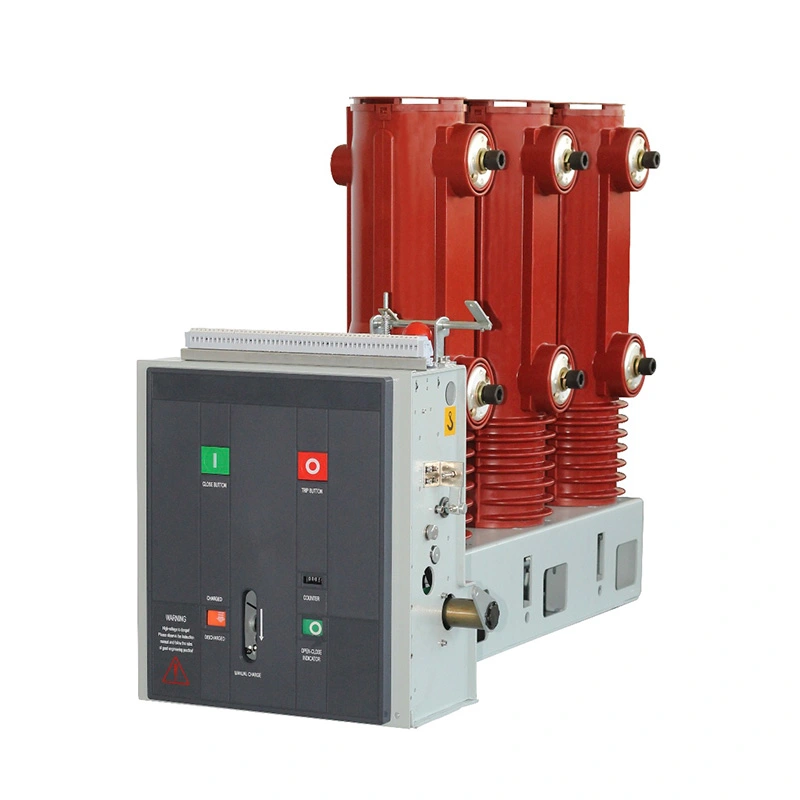

    Fixed type – bolted into XGN-style fixed-pattern cubicles; primary and secondary wiring terminate directly on the breaker. Best for compact rooms and planned-outage maintenance.

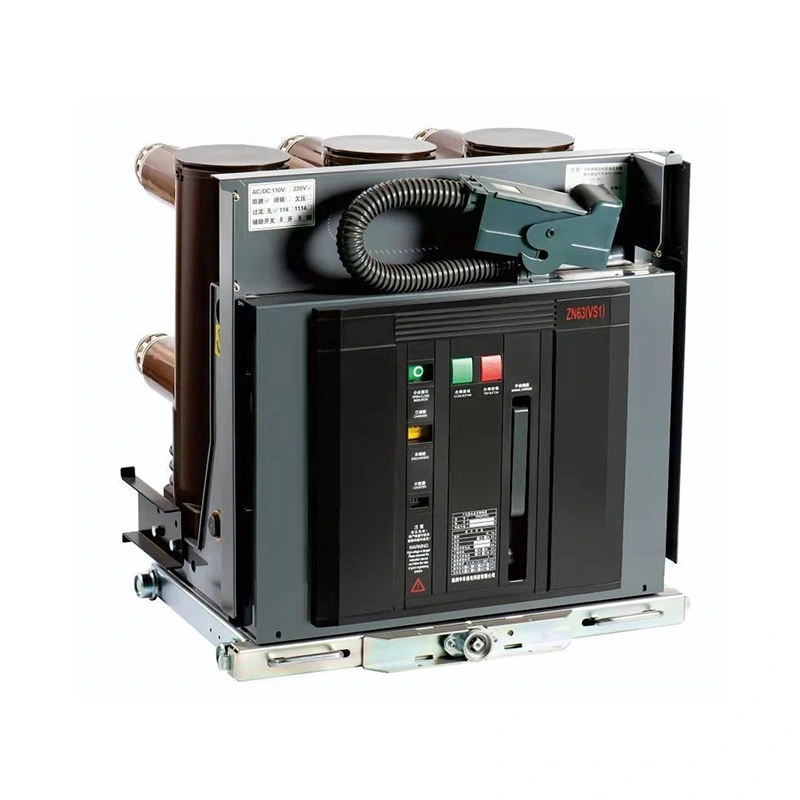

    Withdrawable (handcart) type – runs on a truck with service / test / isolated positions and mechanical interlocks to the earthing switch and cabinet door. Best for KYN28-12 metal-clad switchgear and process lines needing fast breaker exchange.

    The two are not plug-and-play interchangeable. Pole center distance, tulip-contact interface, secondary plug pinout, cubicle depth, and interlock logic must be verified against your panel drawing before ordering.


    Position Status Function
    Test Position Allows inspection and control circuit testing
    Operating Position Enables connection with the main circuit
    Interlocked Position Prevents unsafe operation

    Safety Interlocking System

    In medium-voltage electrical systems, preventing operating errors is essential for equipment protection and operator safety.

    The VS1-12 series integrates mechanical and electrical interlocking functions to avoid incorrect closing, tripping, or movement operations caused by improper conditions.

    The locking system ensures reliable operation when the breaker position, control voltage, and secondary circuit conditions meet technical requirements.

    Interlock Function Purpose
    Mechanical interlock Prevents operation when the breaker position is incorrect
    Electrical locking Prevents closing when control conditions are not satisfied
    Position protection Ensures safe switching between test and operating positions
    System coordination Improves cooperation between breaker and switchgear

    Commissioning and Troubleshooting

    During installation, test operation, or daily use, some problems may occur due to control power issues, incorrect wiring, or improper mechanical positioning.

    The following table provides possible causes and recommended solutions.

    Problem Possible Cause Recommended Solution
    The handcart breaker cannot be closed manually or electrically at test position or operating position The mechanical interlock has not reached the correct position Move the handcart fully into position and confirm the locking mechanism is released
    Manual or electrical closing cannot be performed The locking circuit is not activated or voltage is outside the required range Check the locking power supply and ensure the voltage meets technical requirements
    Electric closing operation is unreliable Anti-bounce circuits are installed repeatedly in both breaker and cabinet, causing interference Remove one anti-bounce loop to prevent control circuit interference
    Over-current tripping does not operate The over-current trip board power supply is not activated Switch on the protection board power supply and check the control circuit
    Electrical energy storage, closing, and tripping functions cannot operate Secondary power supply failure, incorrect voltage, loose airborne plug connection, or poor secondary wiring Check secondary power supply, verify voltage range, reconnect plugs, and inspect wiring

    This troubleshooting design helps reduce commissioning time and improves maintenance efficiency for engineering teams.

    Reliable Electrical Performance

    Vacuum Interruption Technology

    Vacuum interruption technology is widely used in medium-voltage systems due to its reliable arc extinguishing capability and long electrical service life.

    The VS1-12 Indoor Vacuum Circuit Breaker provides stable opening and closing performance through optimized vacuum interrupter design, helping protect electrical equipment during normal operation and fault conditions.

    Compared with traditional switching technologies, vacuum interruption avoids the use of insulating oil and provides cleaner operation with reduced environmental impact.

    Stable Control Connection

    Reliable operation also depends on accurate secondary wiring and proper control system connection.

    During installation, engineers should confirm the following technical conditions:

    Inspection Item Purpose
    Secondary wiring connection Ensure correct control signal transmission
    Control voltage Maintain reliable operation of electrical components
    Airborne plug connection Prevent operation failure caused by poor contact
    Interlock function Confirm safety protection performance

    Maintenance Requirements

    Periodic Inspection

    Although the circuit breaker is designed for reliable indoor operation, regular inspection is recommended to maintain long-term performance.

    The maintenance process should focus on mechanical components, electrical connections, and interlocking functions.

    Inspection Item Maintenance Purpose
    Operating mechanism Confirm smooth closing and tripping operation
    Mechanical structure Check deformation caused by improper operation
    Fasteners Prevent loose components after repeated operation
    Electrical connections Maintain reliable control performance

    Professional Maintenance

    Before maintenance, the breaker should be placed in a safe condition. The energy storage mechanism should be released, the breaker should remain in tripping condition, and all power supplies should be disconnected.

    Because the operating mechanism contains stored energy, maintenance should only be performed by qualified professionals following proper safety procedures.

    Technical Configuration

    The VS1-12 series supports different current ratings and breaking capacities to meet various medium-voltage project requirements.

    Parameter Specification
    Product Type Indoor Vacuum Circuit Breaker
    Series VS1-12
    Rated Voltage 12kV
    Rated Current 630A-5000A
    Rated Frequency 50Hz
    Short Circuit Breaking Current 20kA-50kA
    Installation Type Fixed / Handcart
    Application Indoor Medium Voltage Switchgear
    Standards IEC / GB
    Certification CE

    Ordering Information

    To ensure correct product selection, customers should provide detailed technical requirements before ordering.

    Required Information Description
    Product Model Confirm breaker series and configuration
    Quantity Define project requirement
    Rated Voltage Match system voltage
    Rated Current Select suitable current capacity
    Short Circuit Breaking Current Confirm protection level
    Operating Voltage Match control system
    Secondary Wiring Program Select optional configuration
    Spare Parts Requirement Define required accessories
    Special Requirements Provide customized technical conditions

    Accurate technical information helps improve project compatibility and reduces installation adjustments.

    Quality Certification

    Usune applies strict quality control throughout product design, manufacturing, and testing.

    Certification Standard
    Quality Management System ISO 9001
    Environmental Management System ISO 14001
    Occupational Health and Safety System ISO 45001
    Electrical Standards IEC and GB
    Product Certification CE

    These certifications demonstrate Usune's commitment to delivering reliable medium-voltage electrical equipment for international markets.

    Application Example: Usune VS1-12 Indoor Vacuum Circuit Breaker in a Domestic Power Distribution Project

    A domestic power distribution project required a reliable indoor switching device with accurate mechanical positioning and safe interlocking performance. By specifying the Usune VS1-12 Indoor Vacuum Circuit Breaker within the indoor high-voltage switchgear system, the project achieved stable operation. Its integrated interlocking structure improved operational safety, while the flexible cabinet configuration simplified installation and commissioning.


    FAQ

    What is the advantage of the VS1-12 series design?

    The VS1-12 series combines vacuum interruption technology with flexible installation structure, reliable interlocking functions, and compatibility with different indoor switchgear configurations.

    Can this circuit breaker be used with handcart switchgear?

    Yes. The VS1-12 series supports handcart configurations and provides reliable test position and operating position control.

    What should be checked when the breaker cannot close?

    Engineers should check the handcart position, locking circuit, control voltage, secondary power supply, and electrical connections.

    Does the circuit breaker require frequent maintenance?

    The product is designed for reliable operation with reduced maintenance requirements. However, periodic inspection of mechanical and electrical components is recommended.
