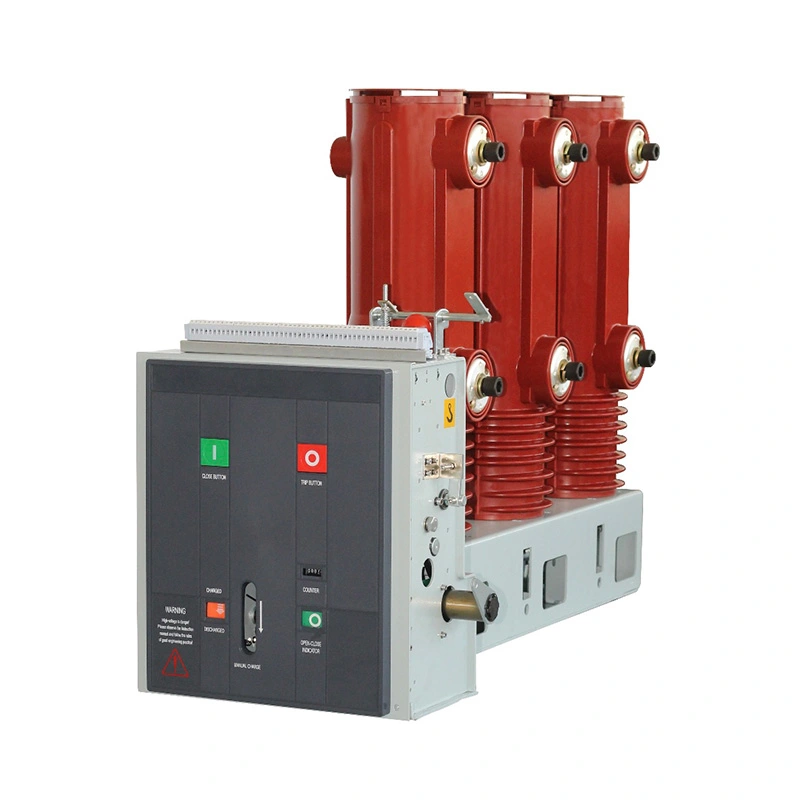

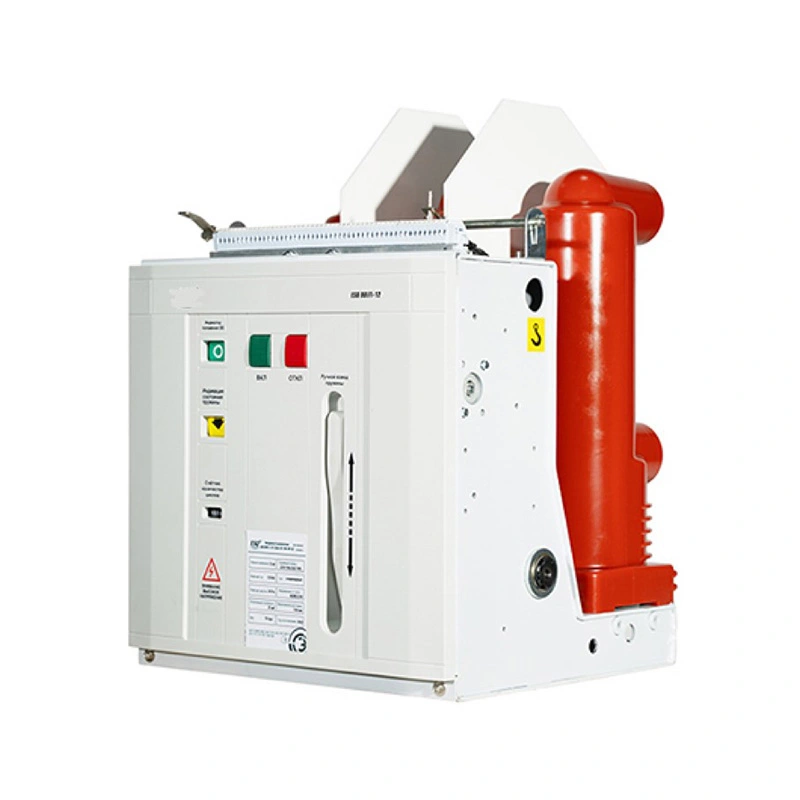

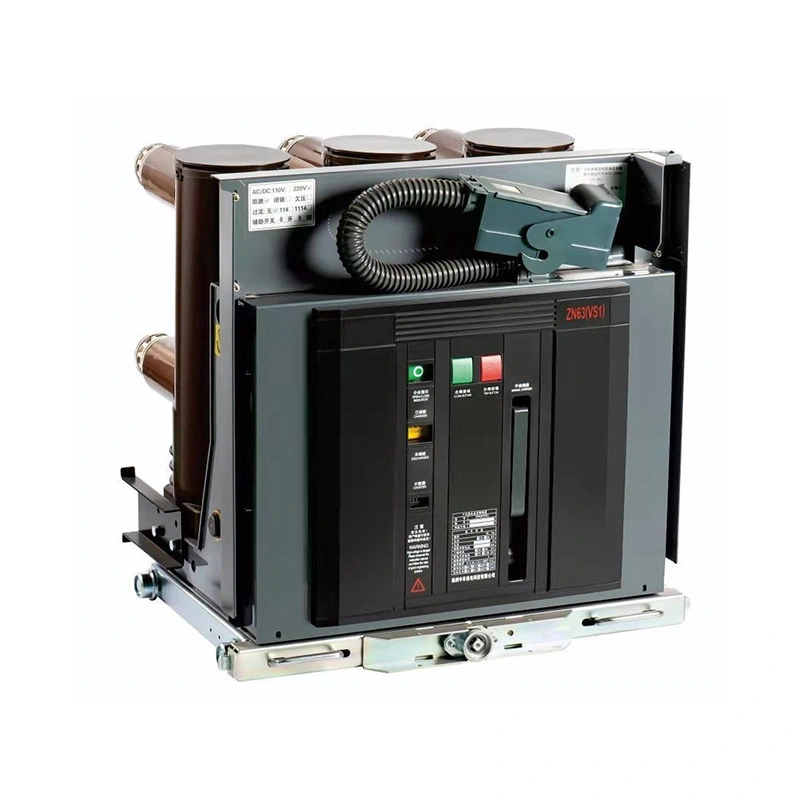

Vacuum Circuit Breaker 12kv 24kv

The Usune Vacuum Circuit Breaker 12kv 24kv is a medium-voltage switching solution engineered for reliable installation, accurate commissioning, and stable long-term operation. With flexible 12kV and 24kV voltage options, dependable vacuum interruption technology, professional installation procedures, and strict international certifications, it delivers a safe and reliable circuit-breaking solution for medium-voltage power systems and electrical engineering projects worldwide.

    Key Features

    Dual voltage class – 12kV and 24kV equipment ratings for 11kV / 13.8kV / 20kV / 24kV systems (select per grid requirement).

    Configurable current – 630A / 1250A / 1600A / 2000A / 2500A / 3150A / 4000A+ options.

    Flexible breaking duty – 20kA / 25kA / 31.5kA / 40kA short-circuit breaking ratings available by model.

    Fixed or withdrawable – same VS1 platform, two mounting forms; handcart version supports service / test / isolated positions.

    Vacuum interruption – oil-free, SF₆-free arc quenching; sealed interrupter, low maintenance.

    Spring operating mechanism – stored-energy close/trip, motor charging + manual handle, AC/DC 110V / 220V control.

    Insulation options – insulated cylinder pole or solid-sealed (embedded) pole per application environment.

    Standard-oriented – designed with reference to IEC 62271-100; routine tests before shipment.

    OEM / project branding – model label, terminal layout, enclosure finish, and drawings per customer spec.

    Vacuum Circuit Breaker 12kv 24kvVacuum Circuit Breaker 12kv 24kv

    Product model and the meaning

    Vacuum Circuit Breaker 12kv 24kv

    Pre-Installation Inspection

    Product Condition Check

    Before installation, a complete inspection should be carried out to confirm that the equipment meets project requirements and remains in proper condition after transportation.

    The inspection process includes checking whether the circuit breaker specifications comply with the contract, confirming that technical documents and accessories are complete, and verifying that there is no visible damage on the breaker surface or insulated components.

    Inspection Item Inspection Purpose
    Product specification Confirm compliance with contract requirements
    Technical documents Ensure complete installation and operation information
    Accessories Verify supplied components are complete
    External structure Check for transportation damage
    Insulated components Confirm mechanical integrity

    If any damage or abnormal condition is found during inspection, photographs should be taken on-site and provided to the supplier for further evaluation.

    Vacuum Interrupter Test

    The vacuum interrupter, also known as the vacuum arc chamber, is a key component that directly affects the interruption reliability of a vacuum circuit breaker. Before installation, its vacuum condition should be verified by a power-frequency voltage withstand test. During the test, the contact gap area must withstand 42 kV power-frequency voltage for one minute without flashover or breakdown.

    This pre-installation inspection helps confirm the insulation performance of the vacuum interrupter and supports safe, reliable operation after the circuit breaker is installed in switchgear.


    Installation Requirements

    Handcart Installation

    For withdrawable circuit breaker applications, correct contact connection is essential for reliable electrical performance. When the handcart-type breaker is installed and racked into the switchgear cabinet, the contact depth between the moving and fixed contacts should be maintained between 15 mm and 25 mm.

    Proper contact insertion depth ensures stable current transmission and reduces the risk of abnormal heating caused by insufficient connection. This contact-depth check is therefore an important part of pre-commissioning inspection for withdrawable circuit breakers in metal-clad switchgear.


    Installation Parameter Requirement
    Installation Type Handcart configuration
    Contact Depth 15mm-25mm
    Main Purpose Ensure reliable electrical connection

    Fixed Installation

    For fixed-type breakers, the installation surface should remain flat and stable. If the four mounting points are not located on the same plane, adjustment washers should be used to prevent structural deformation caused by uneven mechanical stress.

    When connecting the breaker outlet terminal with busbars, the connection point should not bear continuous pulling force, pressing force, or torque. Proper mechanical support helps maintain connection reliability during long-term operation.

    These installation checks are important for fixed-mounted circuit breakers in switchgear, helping reduce mechanical stress on the breaker structure and ensuring stable busbar terminal connection performance.


    VS1 Structure Drawing & Installation Dimensions

    Vacuum Circuit Breaker 12kv 24kv

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    Vacuum Circuit Breaker 12kv 24kv

    Installation Quality Control

    Cleaning Inspection

    After installation is completed, the breaker should be inspected carefully to confirm that no foreign materials remain inside the equipment.

    Dust, metal particles, or other contaminants may affect insulation performance and operational reliability, therefore cleaning should be completed before commissioning.

    Dust Cover Adjustment

    The dust-proof cover on the insulated drum should be checked according to rated current requirements.

    Rated Current Dust-Proof Cover Requirement
    Below 1250A Dust-proof cover can be installed
    1250A and above Dust-proof cover should be removed

    This configuration helps maintain appropriate heat dissipation performance under different current conditions.

    Commissioning and Test Run

    Electrical Function Test

    After installation, the Usune Vacuum Circuit Breaker 12kv 24kv should complete commissioning tests before being placed into service.

    The testing process verifies electrical performance, mechanical operation, insulation condition, and safety protection functions.

    Test Item Purpose
    Opening test Verify reliable interruption performance
    Closing test Confirm stable closing operation
    Insulation test Check insulation reliability
    Control circuit test Verify signal transmission
    Interlock test Confirm safe operation logic

    Mechanical Operation Test

    Mechanical testing ensures that the operating mechanism works correctly after installation.

    The inspection should confirm that closing, tripping, position indication, and mechanical movement operate smoothly.

    Inspection Area Evaluation Purpose
    Closing mechanism Confirm accurate closing action
    Tripping mechanism Ensure reliable fault interruption
    Position indication Verify operating status
    Mechanical structure Check operation stability

    Engineering Installation Value

    Efficient Project Commissioning for Contractors and Integrators

    For engineering contractors and system integrators, installation efficiency and commissioning reliability directly affect project delivery time. The USUNE 12 kV/24 kV vacuum circuit breaker provides standardized installation requirements and clear testing procedures, helping reduce installation errors and improve commissioning efficiency.


    Stable System Integration with Switchgear and Protection Systems

    The breaker supports different installation configurations according to project requirements, enabling engineers to achieve better coordination among the circuit breaker, switchgear cabinet, and protection system. Its standardized design simplifies system integration and helps improve overall electrical reliability.


    Product Comparison

    12kV and 24kV Selection

    When selecting medium-voltage switching equipment, rated voltage is one of the most important factors affecting system compatibility.

    The 12kV and 24kV configurations provide different insulation levels and application advantages, allowing customers to select suitable equipment according to actual grid requirements.

    Comparison Item 12kV Version 24kV Version
    Rated Voltage 12kV 24kV
    System Requirement Standard medium-voltage systems Higher voltage distribution systems
    Insulation Requirement Suitable for 12kV insulation coordination Requires higher insulation capability
    Equipment Selection Focus Efficient solution for common applications Suitable for projects requiring higher voltage margin
    Installation Consideration More compact switchgear design Designed for higher voltage applications

    Fixed Type and Handcart Type

    Different projects may require different installation structures according to maintenance strategy and switchgear design.

    Comparison Item Fixed Type Handcart Type
    Installation Method Fixed installation inside switchgear Withdrawable structure
    Maintenance Method Requires shutdown during replacement Easier inspection and replacement
    Space Requirement More compact structure Requires operating clearance
    Application Preference Suitable for stable systems Suitable for flexible operation requirements

    Product Selection Advantages

    Compared with traditional switching solutions, vacuum circuit breakers provide reliable interruption performance, improved insulation characteristics, and reduced environmental impact.

    Selection Factor Usune Advantage
    Voltage Options Supports 12kV and 24kV systems
    Installation Flexibility Available in fixed and handcart configurations
    Operation Reliability Stable vacuum interruption technology
    Commissioning Efficiency Standardized installation and testing process
    Quality Assurance ISO 9001, ISO 14001, ISO 45001, IEC and GB, CE certified

    Maintenance Considerations

    Periodic Inspection

    Although the circuit breaker is designed for reliable operation, regular inspection helps maintain long-term performance.

    Maintenance should focus on mechanical operation, insulation condition, connection reliability, and control system performance.

    Inspection Item Purpose
    Mechanical mechanism Ensure smooth opening and closing
    Insulation condition Maintain electrical safety
    Connection parts Prevent contact problems
    Control system Ensure reliable operation signals

    Professional Maintenance

    Put the Breaker in a Safe Condition Before Maintenance

    Before maintenance, the vacuum circuit breaker should be placed in a safe condition. The stored-energy mechanism should be released, the breaker should remain in the tripping condition, and all power supplies should be disconnected.

    Maintenance by Trained Professionals Only

    Because the operating mechanism contains stored energy, maintenance should only be performed by trained professionals following established safety procedures. Proper preparation before maintenance helps protect personnel and supports safe, reliable breaker servicing.


    Ordering Information

    To ensure correct product configuration, customers should provide complete technical requirements before ordering.

    Information Required Purpose
    Rated voltage Confirm 12kV or 24kV requirement
    Rated current Match system load requirements
    Short circuit breaking current Select suitable protection capability
    Installation type Confirm fixed or handcart structure
    Cabinet requirements Ensure mechanical compatibility
    Special requirements Support customized solutions

    Technical Specifications

    Parameter Specification
    Product Type Indoor Vacuum Circuit Breaker
    Rated Voltage 12kV / 24kV
    Rated Frequency 50Hz
    Installation Type Fixed / Handcart
    Interruption Method Vacuum Arc Interruption
    Application Medium Voltage Distribution Systems
    Standards IEC / GB
    Certification CE

    FAQ

    What should be checked before installation?

    Before installation, customers should verify product specifications, accessories, external condition, vacuum interrupter insulation performance, and technical documents.

    Why is contact depth important for handcart installation?

    Correct contact depth ensures stable electrical connection between the breaker and switchgear, reducing contact resistance and improving operational safety.

    What is the difference between 12kV and 24kV models?

    The main difference is rated voltage and insulation capability. The 24kV version is designed for systems requiring higher voltage protection margins.

    Does the breaker require professional commissioning?

    Yes. Installation inspection, electrical testing, and mechanical commissioning should be completed by qualified personnel before operation.
