High Quality Medium Voltage and Low Voltage Electrical Switchgear Panel

The Low Voltage Drawer Type Switchgear Cabinet from Zhejiang Usune Electric Co., Ltd. is developed around this requirement. Its drawer-based configuration separates individual functional circuits within a centralized cabinet, allowing different loads to be organized according to their electrical characteristics and operating requirements.

Zhejiang Usune Electric Co., Ltd. provides Low Voltage Withdrawable Switchgear Panel solutions for industrial power distribution, motor control, and electrical energy management. Designed for AC 50–60Hz systems with rated working voltage up to 660V, the equipment uses a modular configuration to accommodate different incoming, outgoing, motor, and compensation circuits.

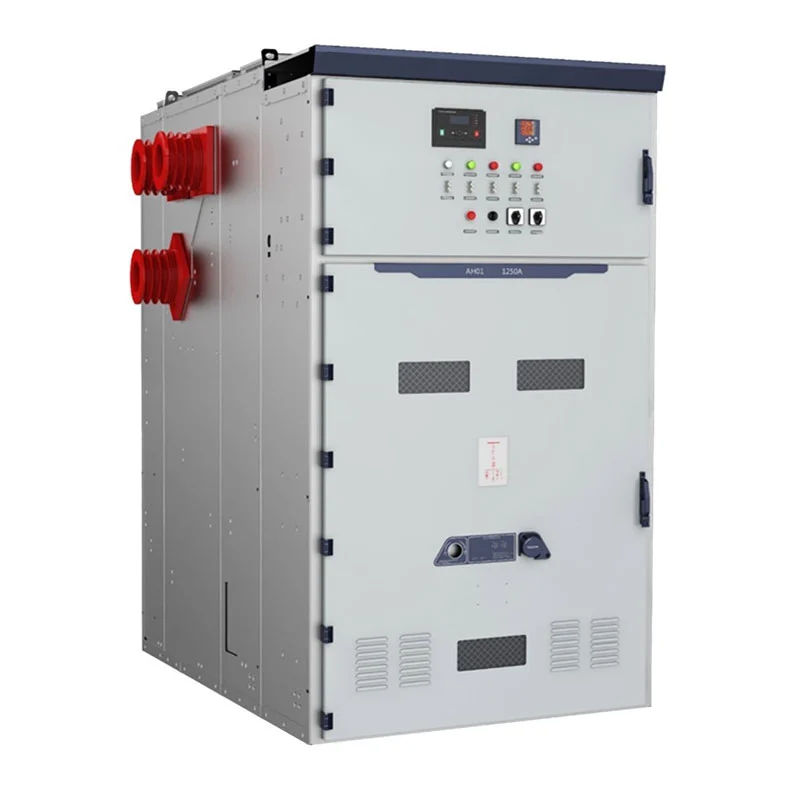

Zhejiang Usune Electric Co., Ltd. supplies indoor metal-enclosed switchgear for medium-voltage systems where higher voltage ratings, short-circuit capacity, insulation coordination, and project-level protection requirements need to be considered together. The KYN61-40.5 33kV Indoor VCB Switchgear Panel is designed for three-phase AC distribution applications and is suitable for power plants, substations, industrial facilities, mining projects, and large infrastructure.

The Kyn28 Medium Voltage Switchgear is designed for three-phase AC power systems and can be configured for power receiving, feeder distribution, voltage measurement, metering, bus sectioning, and electrical isolation. Rather than being limited to one standard cabinet arrangement, the system can be specified according to the customer's single-line diagram, load characteristics, short-circuit level, and installation requirements.

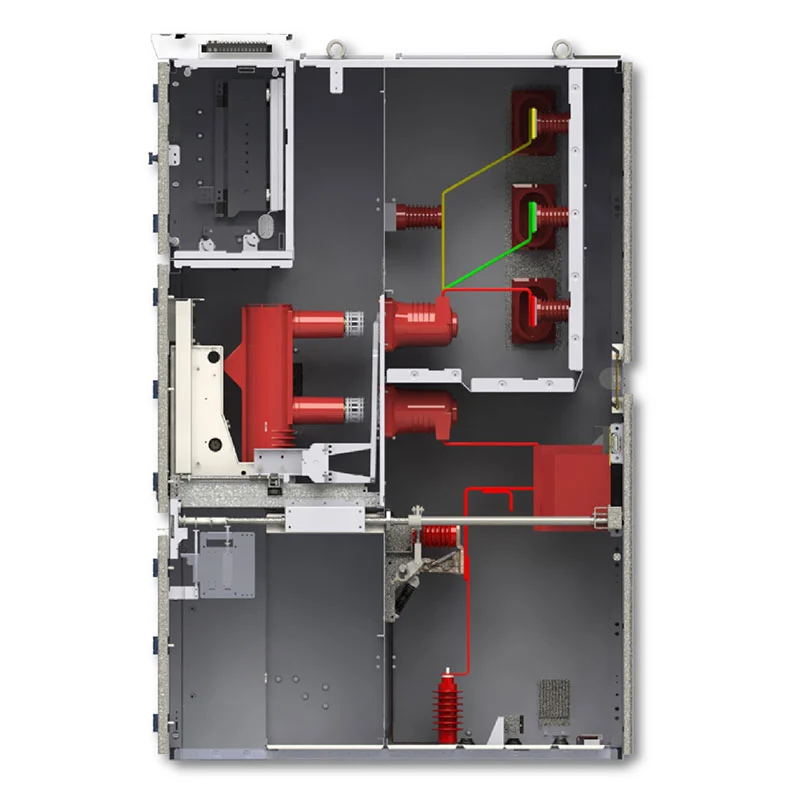

Usune's KYN28 Medium Voltage Drawer Type Panel is an indoor metal-clad withdrawable switchgear designed for medium-voltage power distribution. Its modular structure allows different functional units and cabinet types to be arranged according to the electrical system, making it suitable for projects where multiple power circuits need to be organized within one coordinated distribution system.

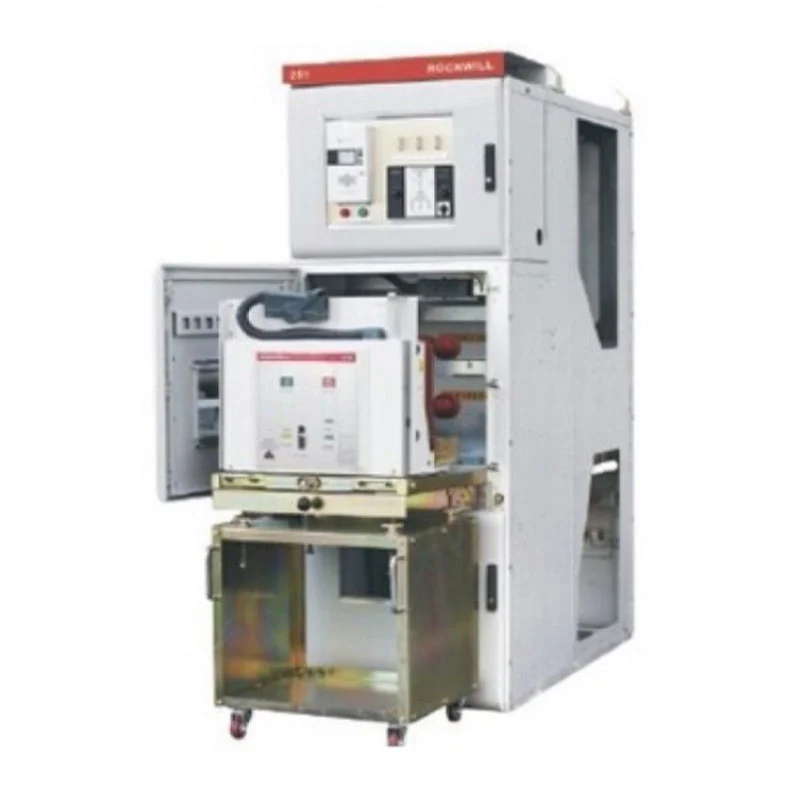

Zhejiang Usune Electric Co., Ltd. provides indoor metal-clad withdrawable switchgear designed for 3.6kV–12kV three-phase AC 50Hz/60Hz power systems. The Medium Voltage Vcb Panel integrates a vacuum circuit breaker trolley, independent functional compartments, mechanical interlocks, pressure relief protection, and front-side operation to support power receiving, distribution, control, and protection applications.
