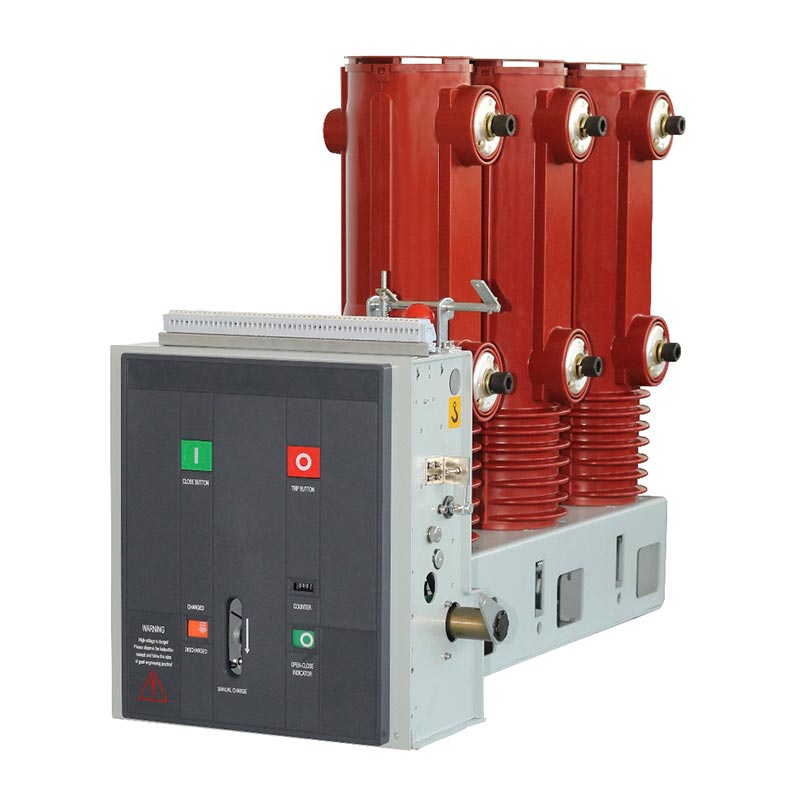

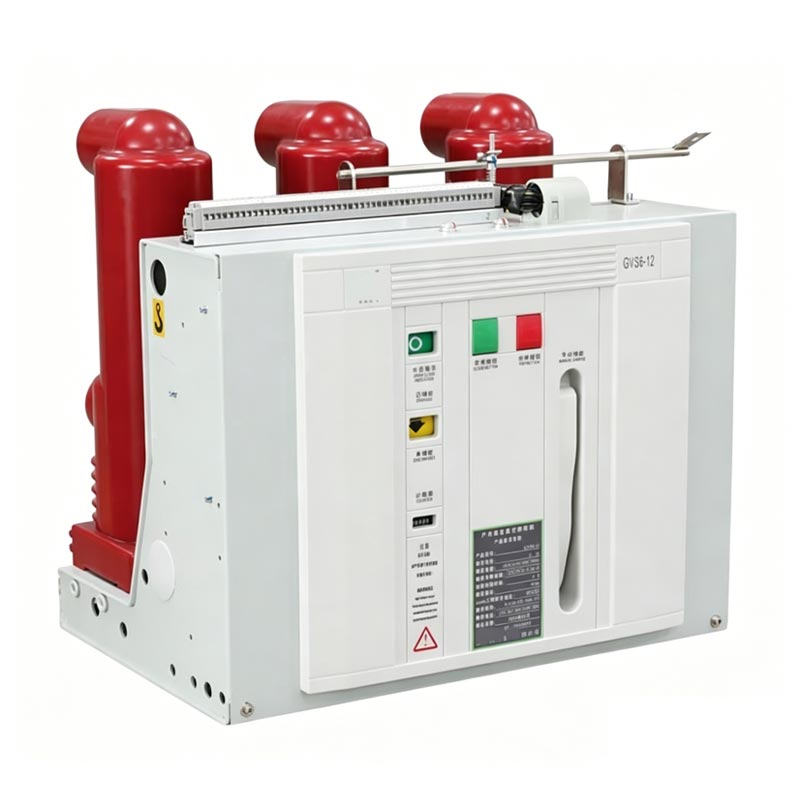

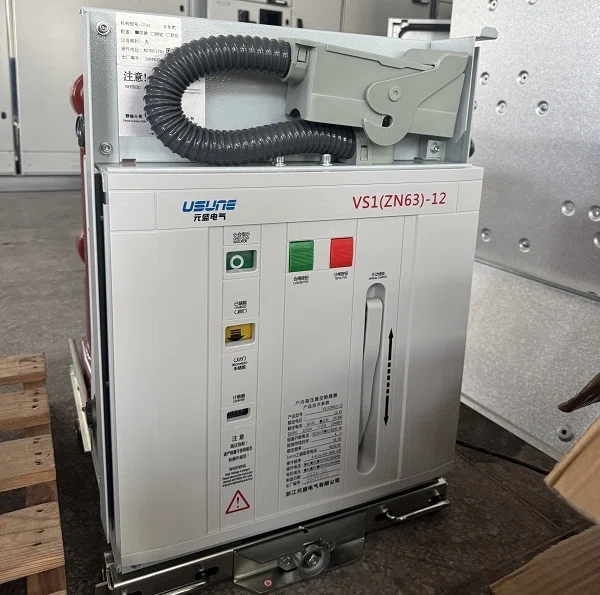

Vs1 Vacuum Circuit Breaker

Rooted in China, Usune is a professional high-voltage electrical equipment manufacturer with over 14 years of experience in the vacuum circuit breaker field. We possess an experienced R&D team and can customize products according to specific customer needs. We have accumulated rich practical experience in product development, production, and application. As a trustworthy supplier, we adhere to the principle of "quality first, service foremost," and have established a comprehensive production and quality control system. Our factory is equipped with advanced production and testing equipment, and we implement strict quality inspections from raw material procurement to finished product delivery, laying a solid foundation for the reliability and stability of the Usune Vs1 Vacuum Circuit Breaker.

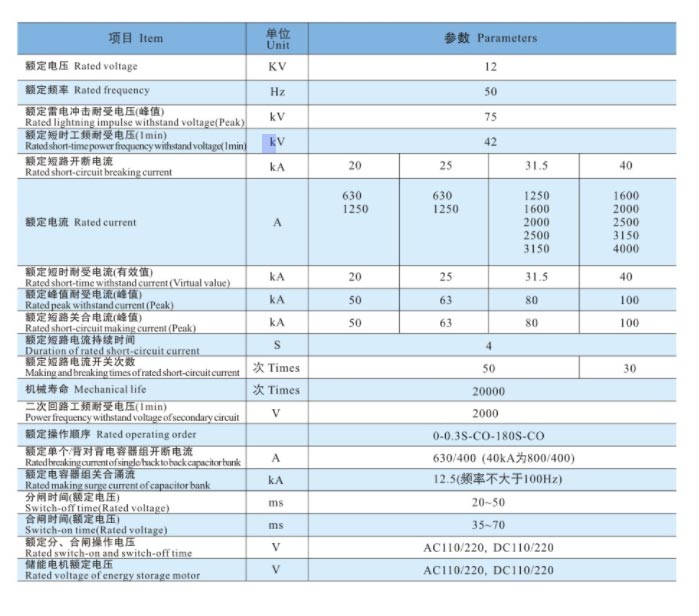

Main Technical Parameters

Core Product Technologies

1. First Generation: Air Insulation

First-generation vacuum circuit breakers had their live parts completely exposed to air. Insulation levels were easily affected by external factors such as environmental humidity, dust, and transportation vibrations. They were also susceptible to interference from small animals and other foreign objects, posing safety hazards and resulting in poor operational stability.

2. Second Generation: Composite Insulation

Second-generation products used epoxy resin bushings to protect the arc-extinguishing chamber, improving insulation performance to some extent. However, the bushings did not completely enclose the high-voltage live parts, leaving them still susceptible to environmental factors such as dust, moisture, and insects, limiting long-term operational reliability.

3. Third Generation: Solid-Sealed Insulation (Usune Core Technology)

The Usune Vs1 Vacuum Circuit Breaker uses third-generation solid-sealed poles. Through advanced APG (Automatic Pressure Gel) technology, high-performance epoxy resin is used to encapsulate the arc-extinguishing chamber and the upper and lower outgoing terminals as a whole. Key advantages include:
- Complete isolation from the external environment, unaffected by dust, moisture, insects, etc., significantly improving the product's weather resistance and adaptability to harsh operating conditions, ensuring stable operation in various complex indoor scenarios.
- Optimized structure: Epoxy resin serves as both primary insulation and mechanical support, reducing the volume of the arc-extinguishing chamber while enhancing structural stability.
- Superior electrical performance: Electric field and stress distribution are superior to various irregularly shaped insulating partition structures, effectively reducing the risk of insulation breakdown and improving overall electrical performance and service life.

Main Specifications

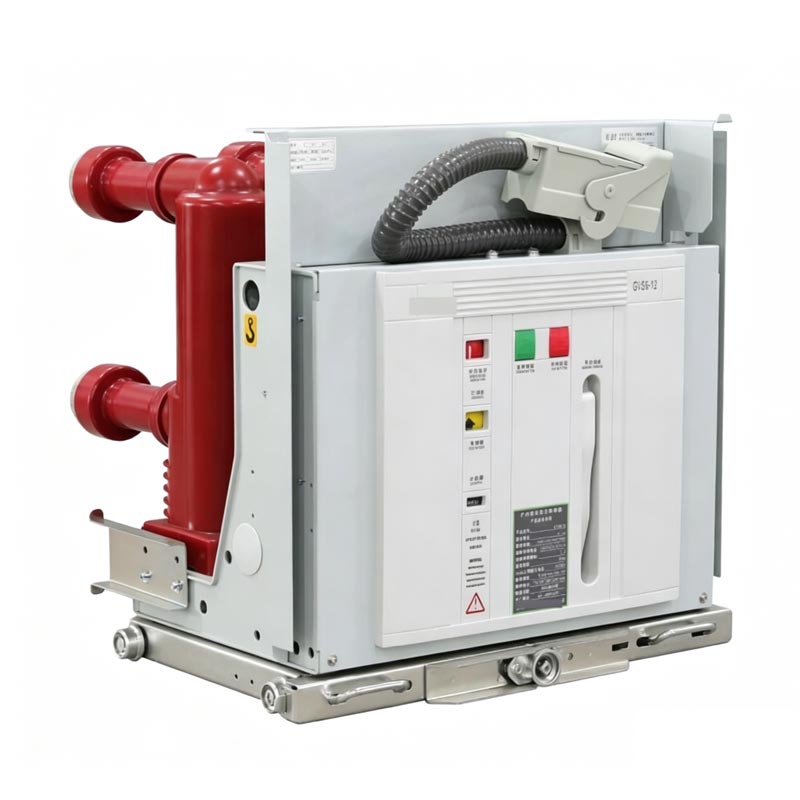

The Usune Vs1 Vacuum Circuit Breaker is available in fixed and drawer types, suitable for indoor high-voltage power distribution systems. A full range of specifications are available and can be customized. It has passed a complete set of professional testing reports, and all technical indicators meet domestic and international industry standards, ensuring reliable and stable operation under various working conditions.

Core Advantages

1. High Reliability: Utilizing third-generation solid-sealed insulation technology and a high-quality arc-extinguishing chamber, its mechanical and electrical life far exceeds the industry average, reducing maintenance costs.
2. Compact Structure: The solid-sealed design reduces product size, saves installation space, and is compatible with various indoor distribution cabinets.
3. Strong Environmental Adaptability: It can operate stably in harsh environments such as high humidity, high dust, and large temperature differences, exhibiting outstanding weather resistance.
4. OEM Support: Custom printing of customer logos and company names is available to meet individual needs.
5. Efficient After-Sales Service: A 12-month warranty is provided from the date of shipment. A professional after-sales team can resolve quality feedback issues within 1-3 days.

Real-World Application Case

Case Study: Phase I Project of Yunnan Fuxian Lake International Health Park

This large-scale comprehensive health park has high requirements for power supply safety and stability, involving medical equipment, residential areas, and public facilities. As a professional supplier, Usune provided the project with a batch of VS1 vacuum circuit breakers (fixed type + drawer type). Their compact structure is suitable for the limited indoor installation space in the park, and solid-sealed insulation technology ensures stable operation in the high humidity environment of the lake area, effectively guaranteeing a continuous and stable power supply to the park and avoiding power outages caused by environmental factors.

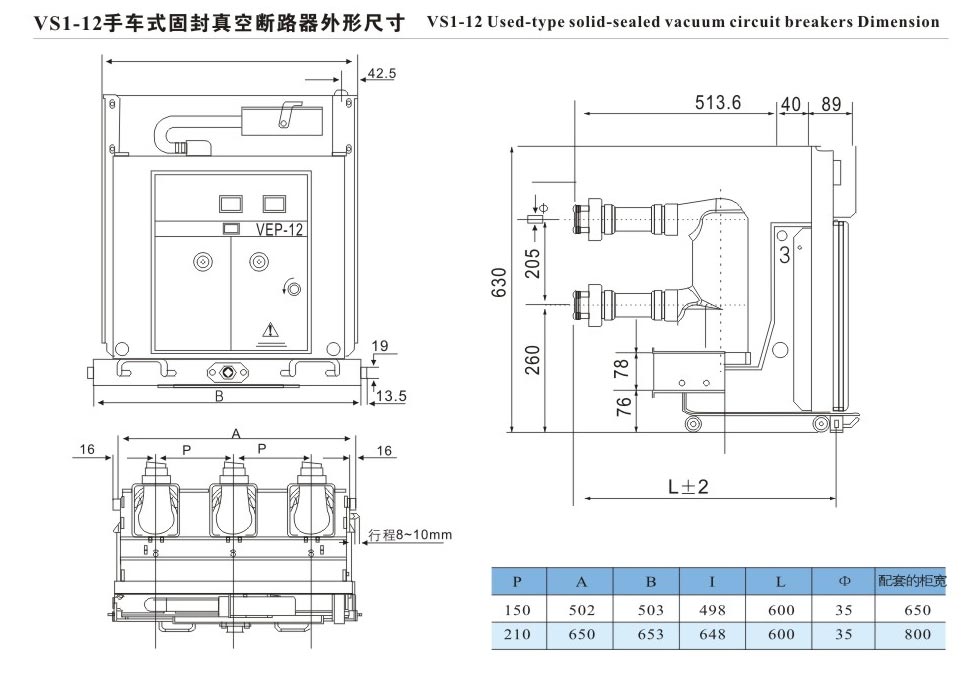

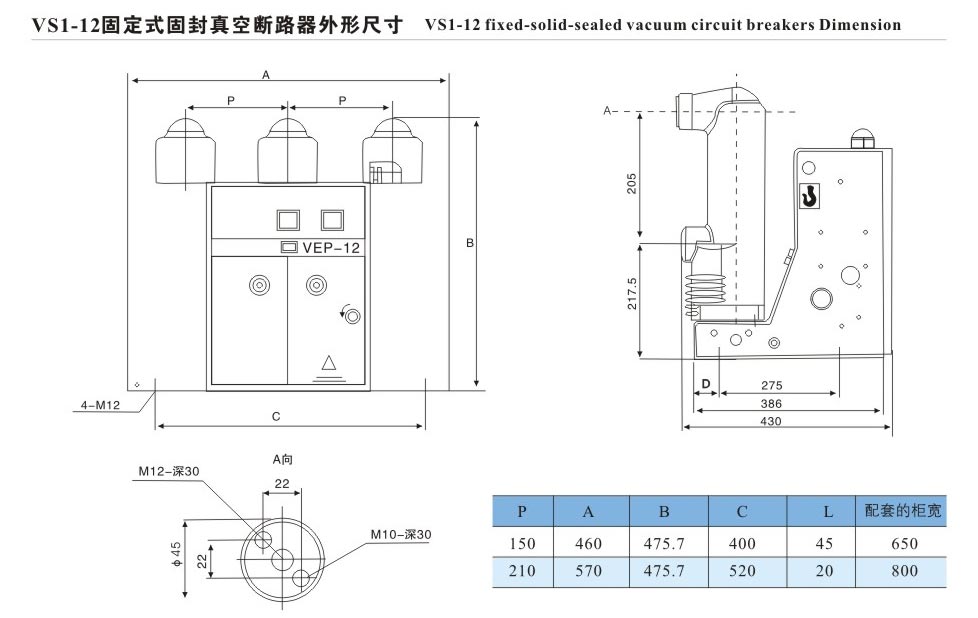

Outer Dimensions

Project Reference

Cas-space Rocket Launch Project

Test Report

FAQs

1. Are you a factory or a trading company? — We are a professional factory, guaranteeing reasonable and competitive prices.
2. When can I get a quote? — Usually within 24 hours of receiving an inquiry.
3. Can you print our logo and company name on the products? — Yes, we support OEM customization.
4. How long is the delivery cycle? — It depends on the order quantity, usually 15-20 days after payment.
5. What is the quality control process? — All products are inspected from the accessories stage, and routine tests are conducted before leaving the factory to ensure quality.
6. How are after-sales quality issues resolved? — Send us photos or videos of the quality problem for verification, and we will provide a satisfactory solution within 1-3 days.
7. How long is the warranty period? — 12 months from the date of shipment.

Cooperation Support As a professional manufacturer and supplier in China, Usune is committed to providing customers with one-stop solutions for high-voltage vacuum circuit breakers. We have a professional R&D team that can customize product designs, a strict quality control system to ensure product reliability, and an efficient after-sales team to promptly resolve customer issues, providing high-quality service throughout the process, working together to create a safer and more efficient power supply environment.
