Kyn28 Switchgear 24kv

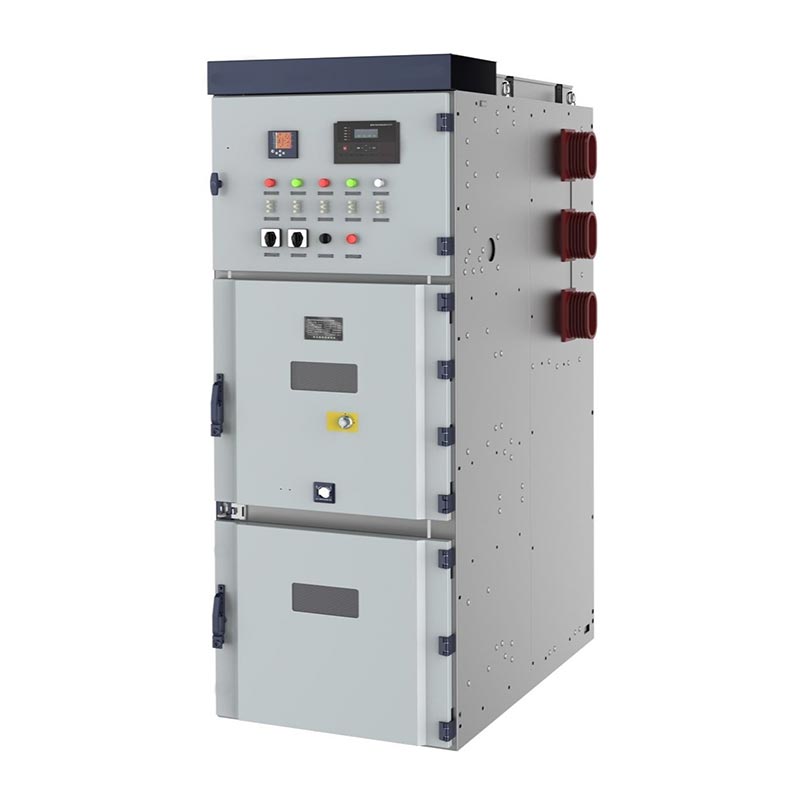

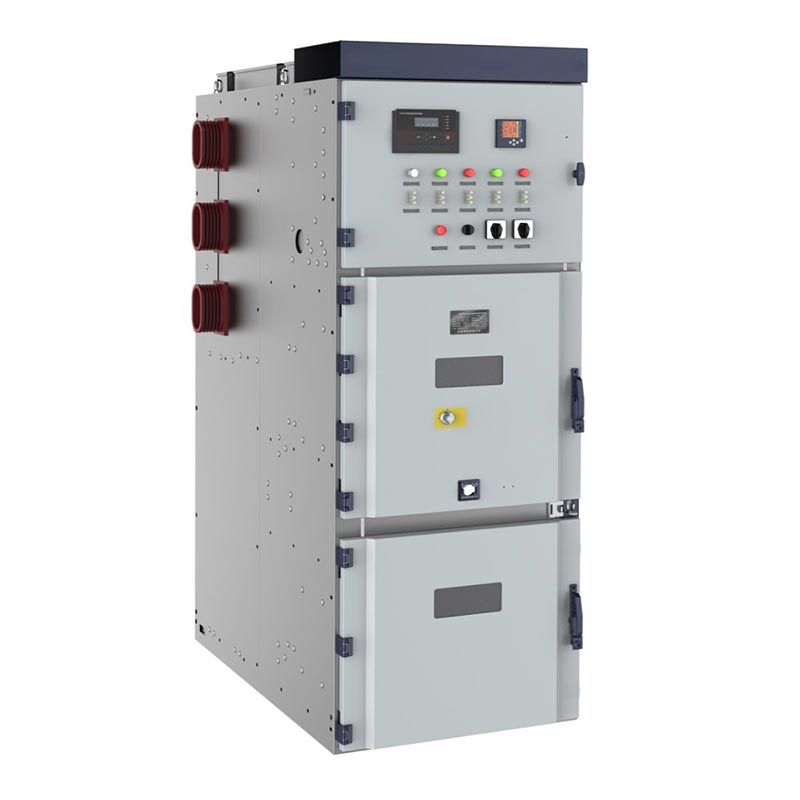

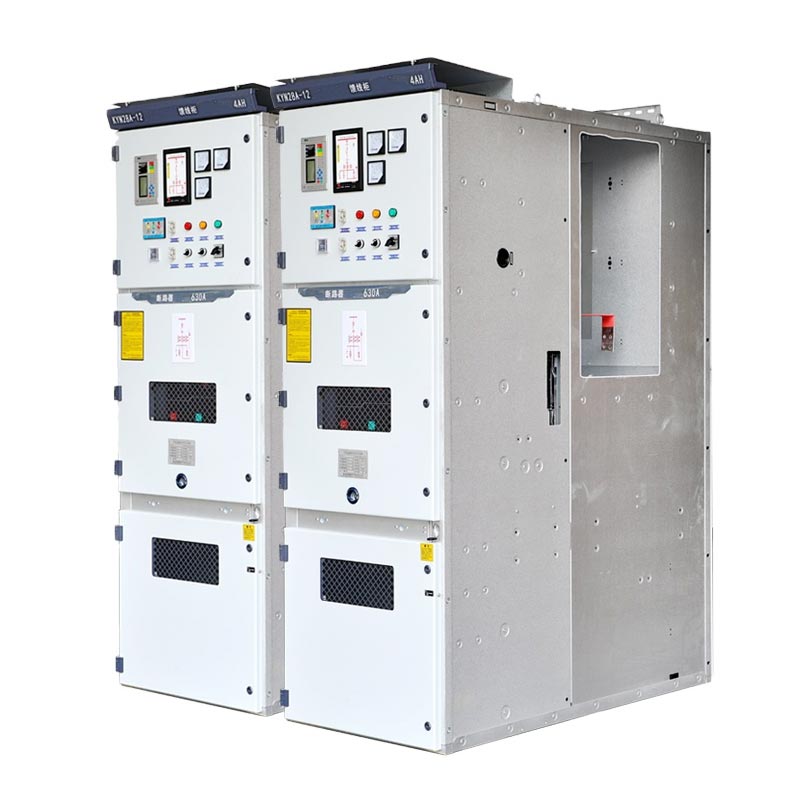

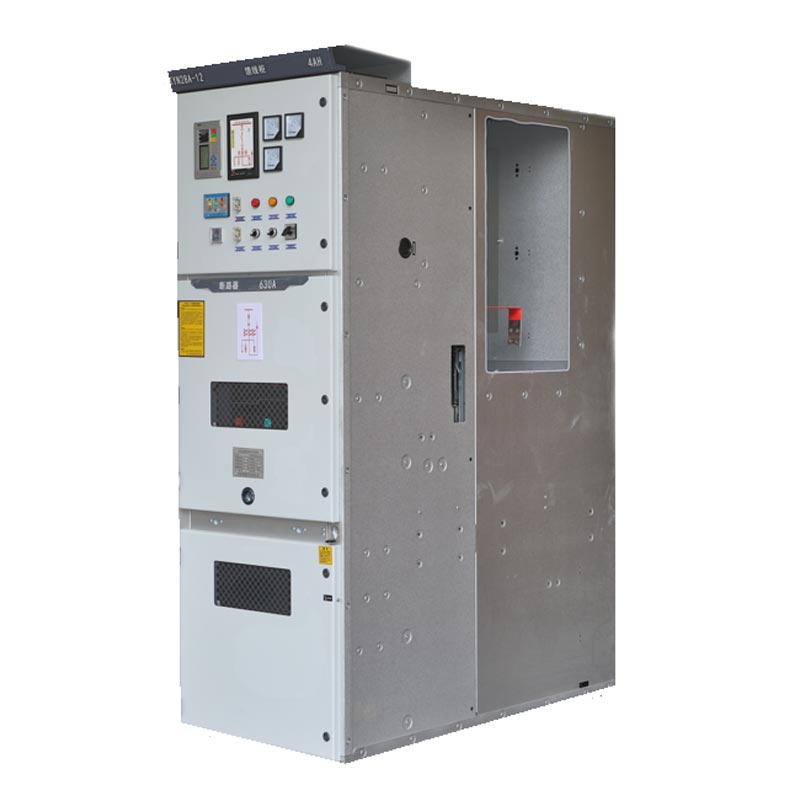

The Usune Kyn28 Switchgear 24kV is an indoor metal-clad withdrawable medium-voltage vacuum switchgear with rated voltages covering mainstream levels of 13.8kV, 17.5kV, 20kV, and 24kV. Specifically designed for three-phase AC 50/60Hz power systems, its core functions are efficient power reception and precise distribution, while also enabling real-time circuit control, fault protection, and operational status monitoring. As a benchmark product from Usune's 14 years of experience in the medium-voltage electrical field, its design integrates mature structure and advanced technology, balancing electrical performance with ease of operation and maintenance, and fully meeting the essential medium-voltage power distribution needs of the power, industrial, and building sectors.

Low voltage switchgear

Medium voltage switchgear

Execution Standards

The Kyn28 Switchgear 24kV strictly adheres to multiple authoritative domestic and international technical standards to ensure compliance throughout the design, production, and testing processes. Core standards include:

- National Standards: GB3906-2006 "3.6-40.5kV AC Metal-Enclosed Switchgear and Controlgear", GB/T11022 "General Technical Requirements for High Voltage Switchgear and Controlgear", DL/T404 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear"
- International Standard: IEC62271-200 "AC Metal-Enclosed Switchgear and Controlgear with Rated Voltage Above 1kV and Below 52kV"

Environmental Operating Conditions

1. Temperature: -15℃~40℃; Humidity: Daily average ≤95%, Monthly average ≤90%
2. Altitude ≤1000m, Seismic intensity ≤8 degrees
3. Free from corrosive and flammable gases and frequent vibrations; special operating conditions can be customized upon negotiation.

Core Structural Features

1. Armored Enclosed Structure: Independently partitioned functional rooms isolate electric arcs, enhancing safety.
2. Removable Handcart: Facilitates component replacement and maintenance, shortening uptime.
3. Double Interlocking: Provides five-proof protection, eliminating misoperation.
4. Vacuum Arc Extinguishing: Strong arc extinguishing capability, long lifespan, suitable for frequent operation.
5. Pressure Relief Channel: Directional pressure release in case of fault, protecting surrounding equipment.

Technical Specifications

Typical Application Cases

Case 1: Power Distribution Project in a Large Chemical Industrial Park in Southeast Asia. Usune, as a professional manufacturer, provided 82 switchgear panels for this park, suitable for heavy loads, with no performance degradation after 3 years of continuous operation, becoming a local benchmark.

Case 2: Power Distribution Project in a Super High-Rise Commercial Complex in China. Applied to a 428-meter super high-rise underground substation, its compact design and high protection adapt to the enclosed environment, ensuring stable power supply for a daily flow of over 100,000 people.

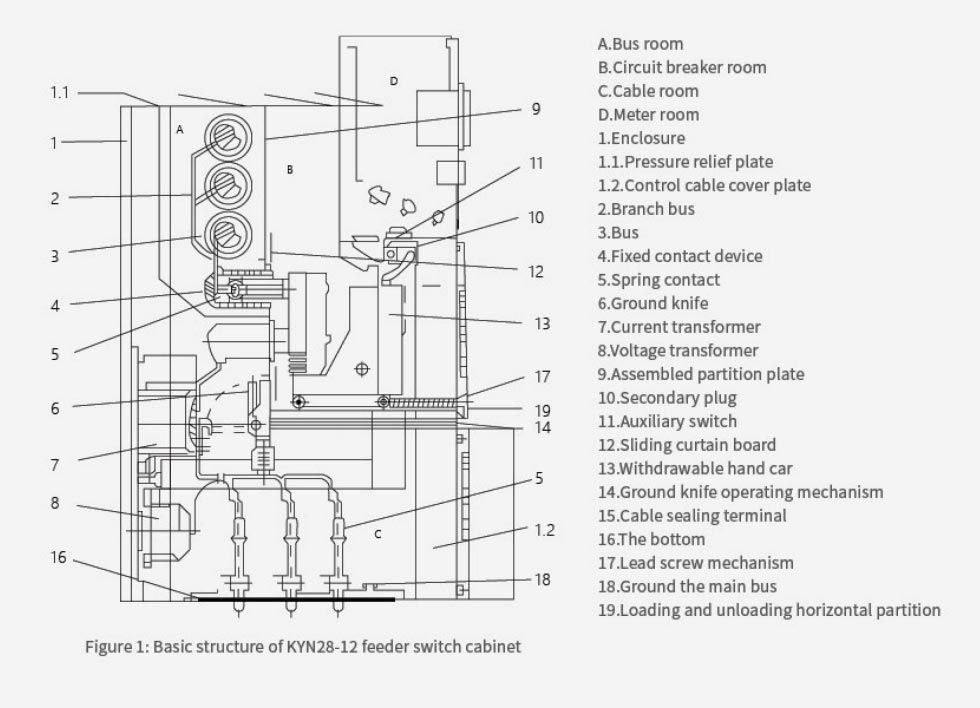

Product External Dimension

Project Reference

Cas-space Rocket Launch Project

Test Report

Usune Brand and Service Advantages

1. Professional Strength: 14 years of deep cultivation, possessing independent R&D and customized production capabilities.
2. Rigorous Quality Control: Full-process quality inspection, each device comes with a complete test report.
3. Efficient Delivery: Standard orders delivered in 15-20 days, adaptable to urgent needs.
4. Customization Services: Supports OEM, logo, and parameter customization to meet individual needs.
5. After-Sales Guarantee: 12-month warranty, after-sales response and resolution within 1-3 days.

The Usune Kyn28 Switchgear 24kV, with its mature technology and reliable performance, has become the preferred choice for medium-voltage power distribution globally. Leveraging the advantages of the China supply chain and direct factory supply, Usune positions itself as a professional manufacturer and reliable supplier, contributing to the development of global power infrastructure.
