11kv Mv Vcb Panels

The 11kV MV Vcb Panels are positioned as industrial-grade, high-reliability medium-voltage power distribution equipment, suitable for 11kV and below voltage systems, and can be used in single busbar, single busbar segmented, or double busbar architectures. They strictly adhere to standards such as IEC 60298, IEC 694, GB3906-2006, and German DIN VDE 0670, and are ISO management system certified with standardized control throughout the entire process.

Low voltage switchgear

Medium voltage switchgear

Core Parameters and Structural Highlights

1. Core Parameters

Rated voltage 11kV (compatible with 3.6~12kV), three-phase AC 50/60Hz, rated current 630A~2500A (customizable), short-circuit breaking current 25kA~40kA, protection level IP4X (enclosure), compatible with multiple system architectures.

2. Structural Highlights

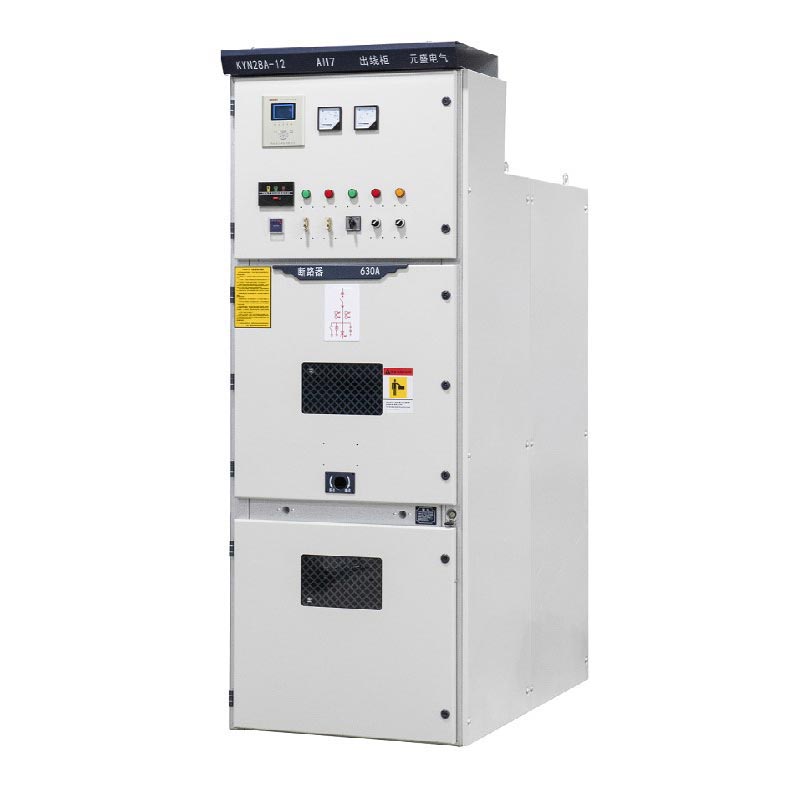

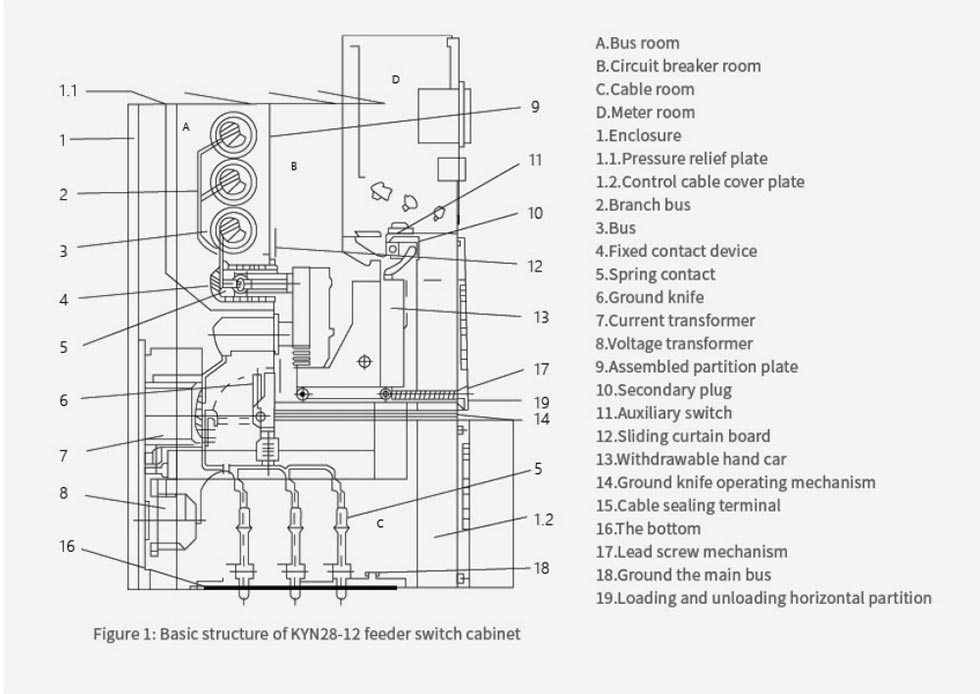

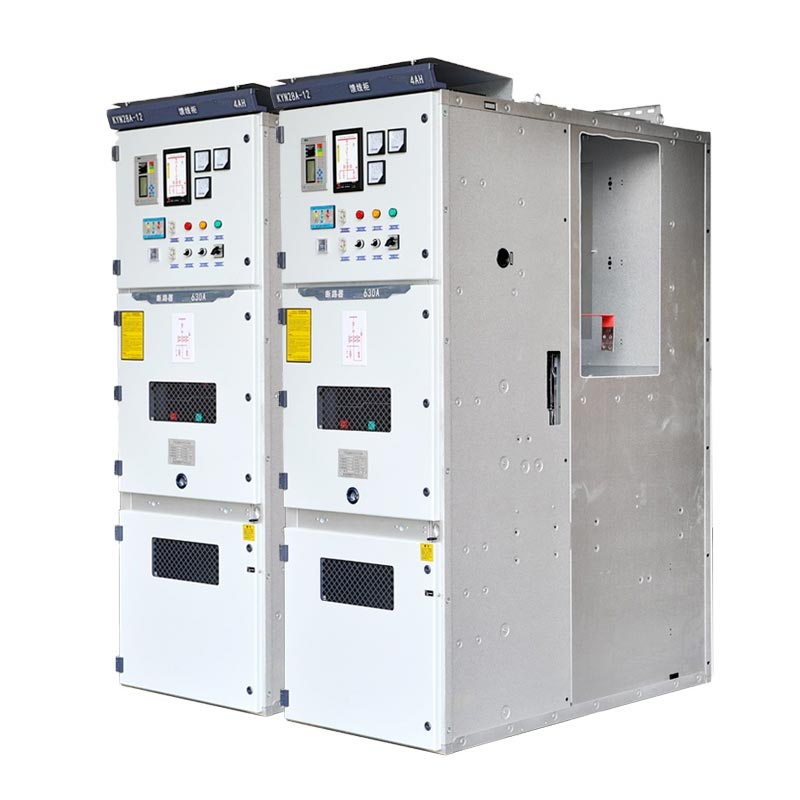

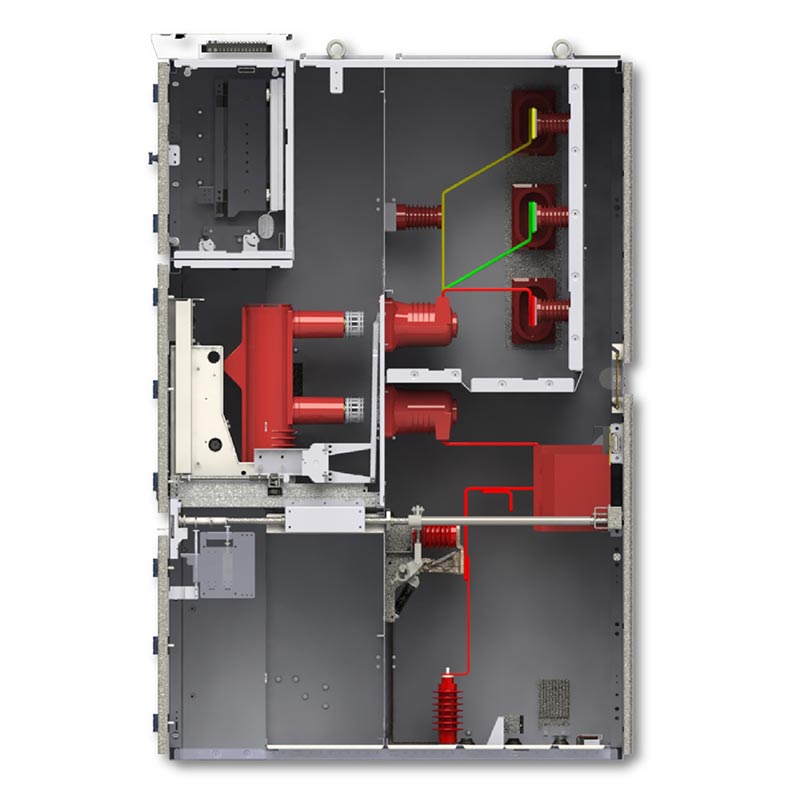

Metal-clad withdrawable structure, four independent compartments, centrally located handcart for easy maintenance; equipped with a comprehensive five-proof safety interlocking system, mechanical + electrical dual protection, eliminating misoperation; strong environmental adaptability, suitable for various indoor working conditions.

Core Advantages

1. Reliable Performance: Vacuum circuit breaker with fast response, long mechanical life, suitable for frequent operation in multiple scenarios;

2. Safe and Convenient: Fully enclosed protection, handcart design for efficient maintenance, supports intelligent remote operation and maintenance;

3. Global Quality: China-based manufacturer, standardized factory ensures production capacity and quality; as a high-quality supplier, exports to multiple regions and provides full-cycle service.

Real-world Application Case

Case 1: 11kV Distribution Project at a 110kV Substation in Southeast Asia

1. Project Background: This substation is a core power supply hub in the region, requiring a stable 11kV power supply to surrounding industrial parks and residential areas. The equipment must possess high reliability and compliance, and be compatible with the local 50Hz power system.

2. Application Solution: Usune customized 28 KYN28A-12 11kV MV VCB Panels, adopting a single busbar segmented architecture and equipped with VS1 vacuum circuit breakers to meet dual-circuit power supply requirements.

3. Implementation Results: In the three years since its commissioning, the equipment has operated without any failures, successfully passing multiple tests under extreme conditions such as thunderstorms and high temperatures. It accurately completes power distribution and fault protection, helping the substation achieve "zero power outage operation and maintenance," and has received high recognition from the local power department.

Case 2: High-Voltage Power Distribution Upgrade at a European Automobile Manufacturing Plant

1. Project Background: The stamping and painting workshops of the factory have extremely high requirements for power supply stability, necessitating an upgrade to an 11kV power distribution system. The equipment must comply with EU IEC standards, while also considering ease of maintenance and space utilization.

2. Application Solution: 16 Usune 11kV MV VCB Panels were selected, employing a centrally located handcart structure, compatible with a single busbar system, and equipped with anti-condensation heaters and intelligent temperature and humidity monitoring modules.

3. Implementation Results: The equipment perfectly adapts to the European 50Hz/60Hz dual-frequency system. Installation does not affect normal workshop production, and the handcart can be quickly pulled out for maintenance. After the upgrade, the factory's power supply failure rate decreased by 90%, meeting the continuous production needs of automobile manufacturing.

Working Environment

1.Ambient air temperature: maximum +40°C, minimum -10°C;
2.Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
3.Altitude: ≤ 1000 m;
4.Seismic intensity: not exceeding Grade 8;
5.The equipment shall be installed in locations free from fire or explosion hazards, severe pollution, chemical corrosion, and strong vibration.
6.If the equipment is to be used under environmental conditions exceeding the normal requirements specified in GB 3906, relevant arrangements shall be agreed upon by the user and the manufacturer.

Technical Specifications

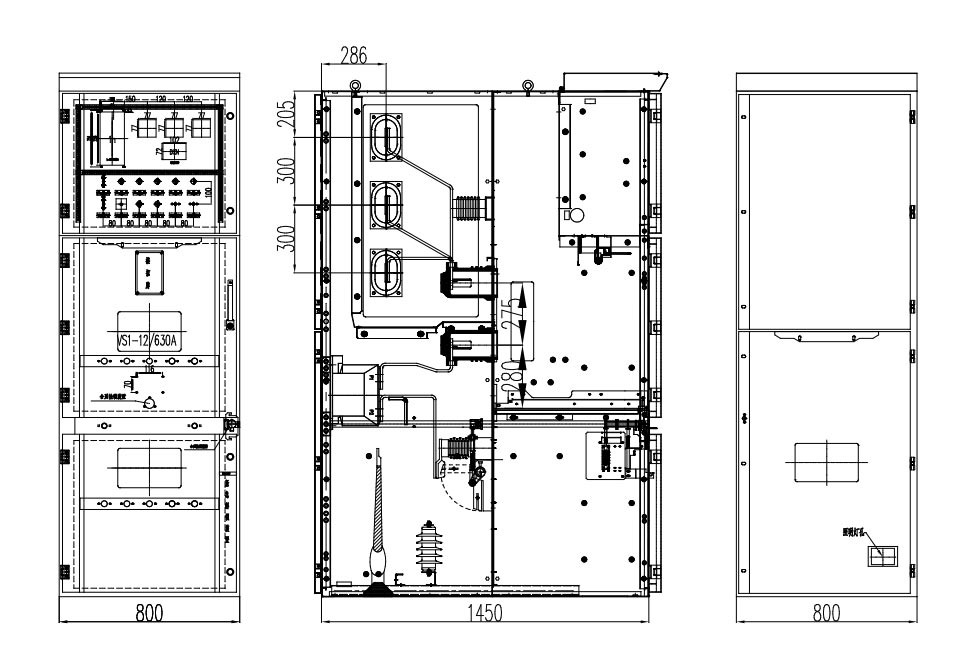

Product External Dimension

Project Reference

Cas-space Rocket Launch Project

Test Report

FAQs

Q1: Five-fold interlocking function?

A: Includes five major functions such as anti-misoperation circuit breaker, with mechanical and electrical dual interlocking to prevent misoperation.

Q2: Are the 11kV MV Vcb Panels compatible with 10kV systems?

A: Fully compatible, no modification required, can directly replace existing equipment, and parameter customization is supported.

Q3: Export compliance and after-sales service?

A: Compliant with international standards, regional certifications can be customized; rapid response from the China factory, and localized after-sales service from global outlets.

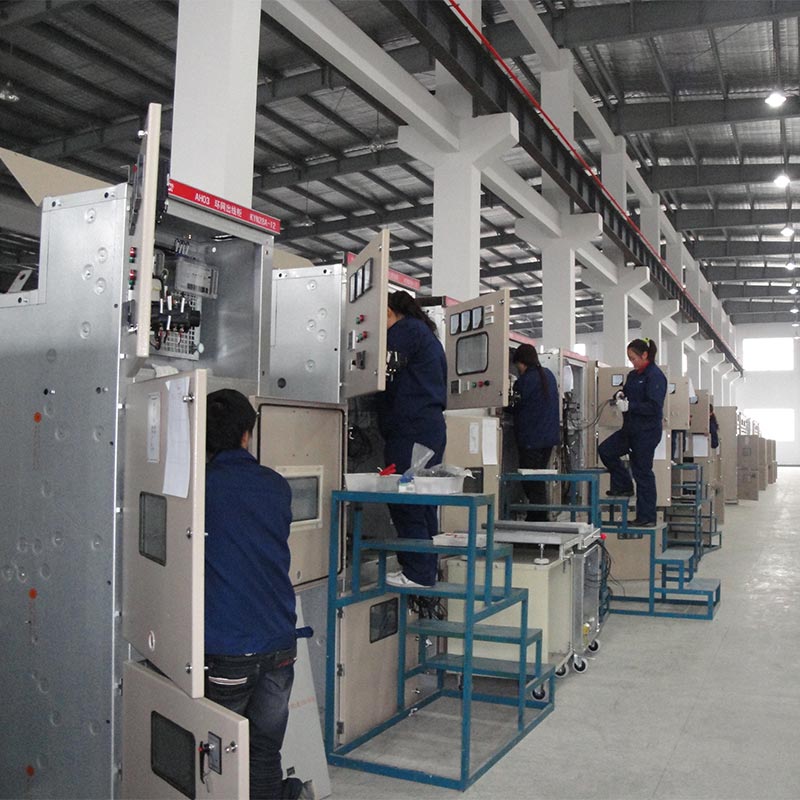

Brand and Factory Strength

Usune relies on its core factory in China, with an annual production capacity of over 5,000 panels. It boasts digitalized end-to-end management, integrating R&D, manufacturing, and sales. Its products cover over 30 countries, making it a trusted medium-voltage power distribution supplier and manufacturer for global customers.
