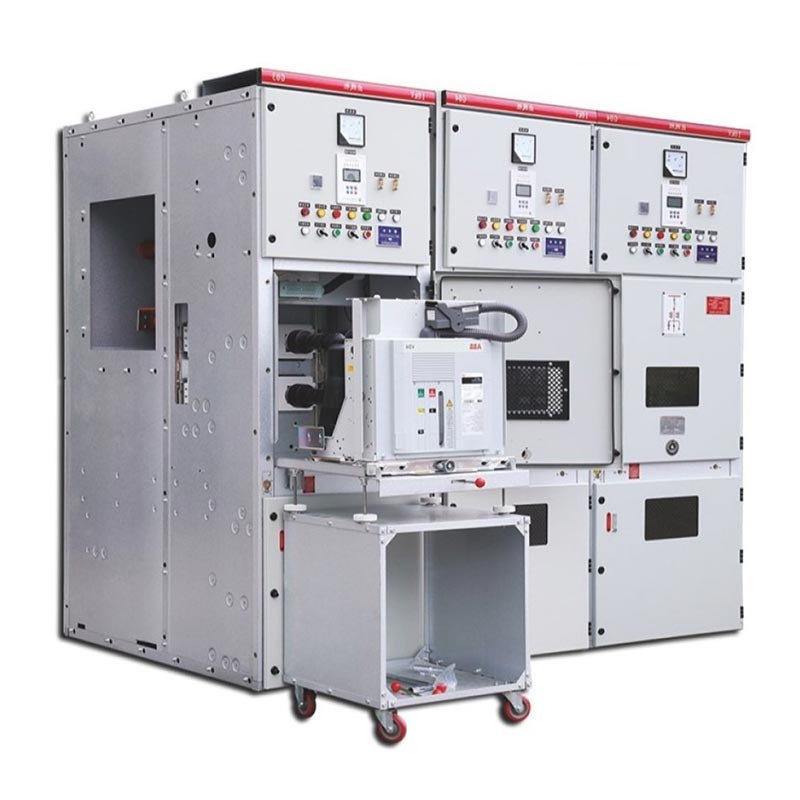

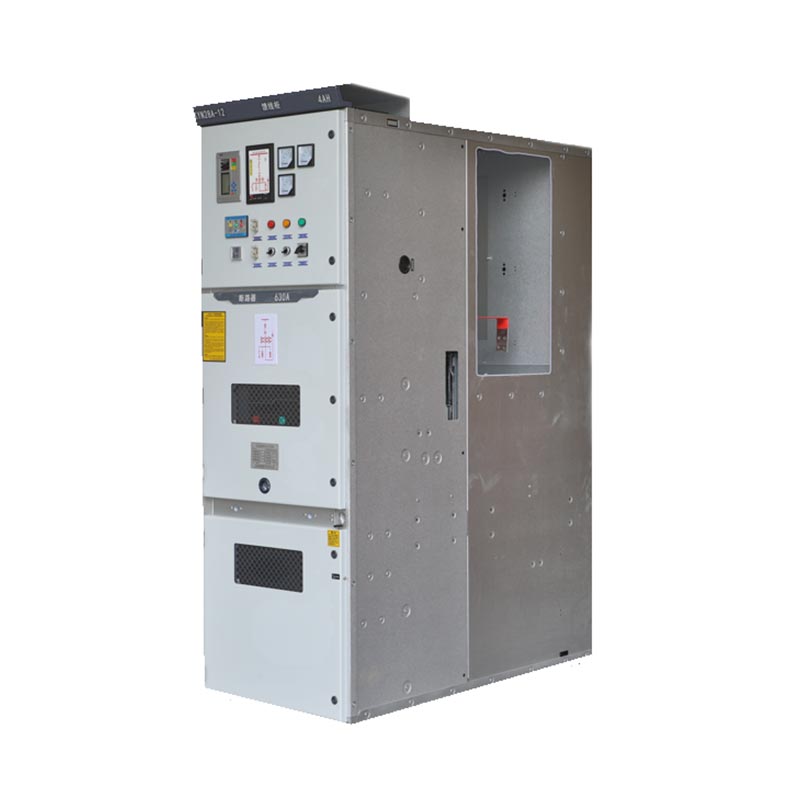

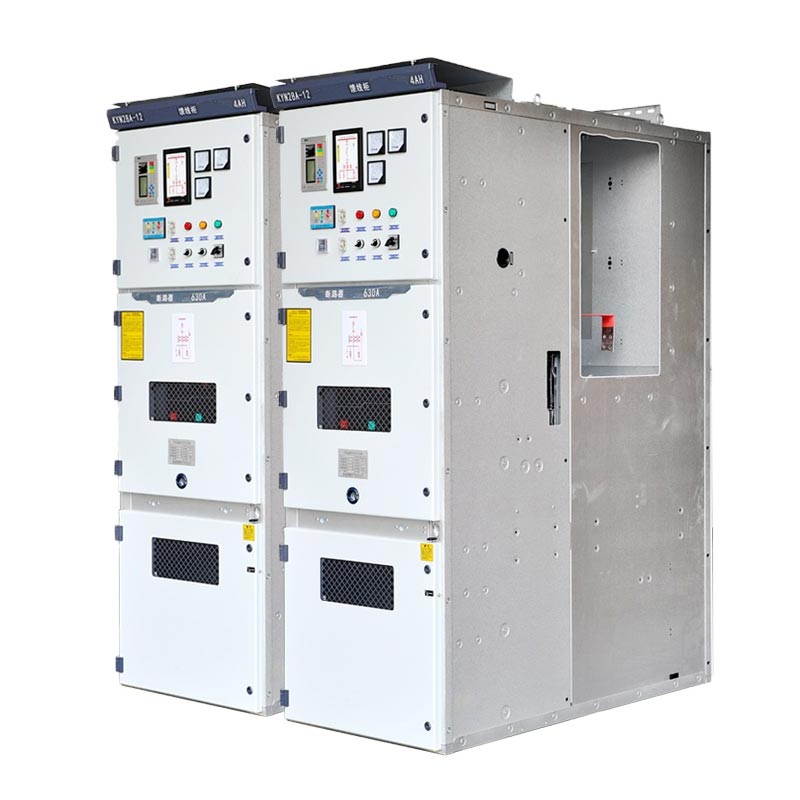

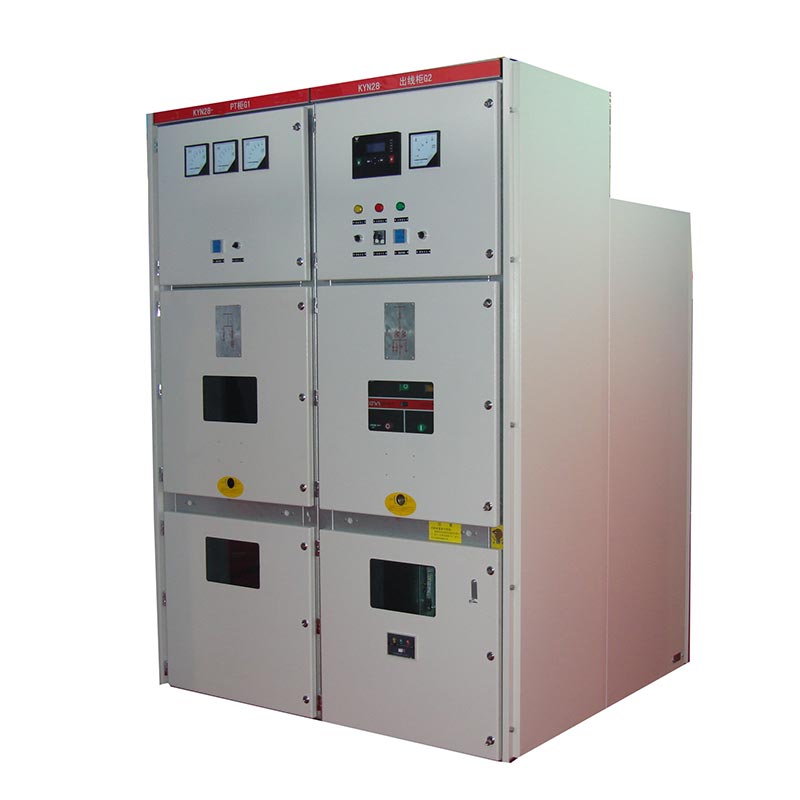

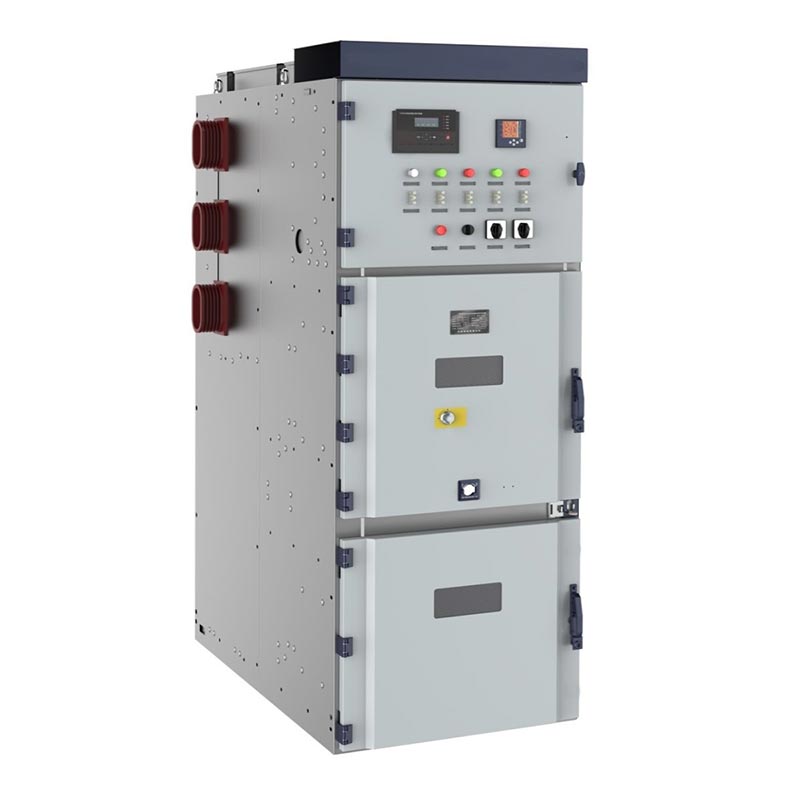

KYN28-12 Medium Voltage Vacuum Switchgear

The Zhejiang Usune Electric Co., Ltd. KYN28-12 Medium Voltage Vacuum Switchgear, developed based on years of R&D experience and market demands, is suitable for 3.6–12kV power grids and single/double busbar systems, enabling power reception, distribution, control, and protection.

The KYN28-12 Medium Voltage Vacuum Switchgear has passed rigorous IEC type testing. The company possesses a comprehensive ISO 9001, ISO 14001, and ISO 45001 management system, ensuring stable product operation. As a professional power distribution equipment supplier, Usune adheres to the principle of "quality first, technology-driven," providing standard configurations and customized solutions for various projects.

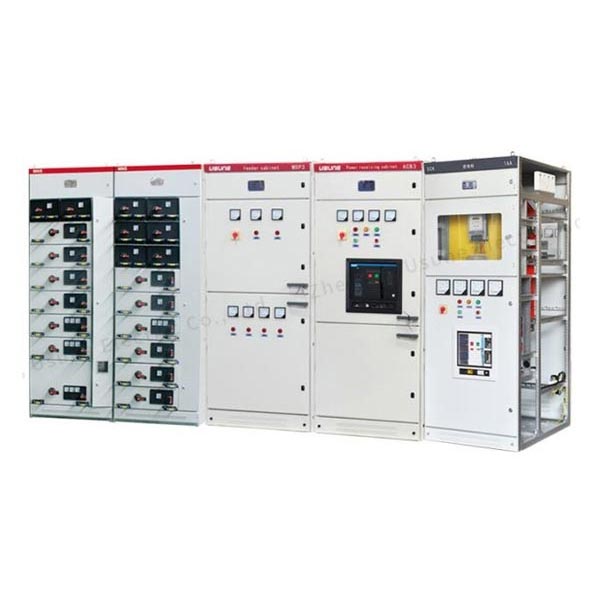

Low voltage switchgear

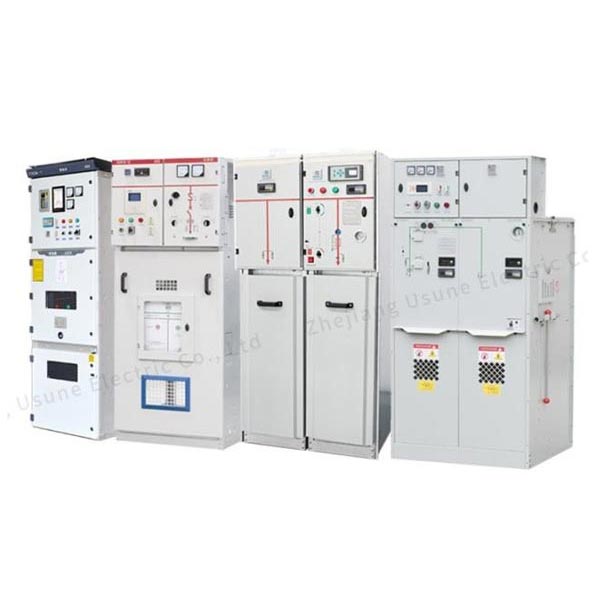

Medium voltage switchgear

Core Structure and Performance Features

1. Advanced Structural Design

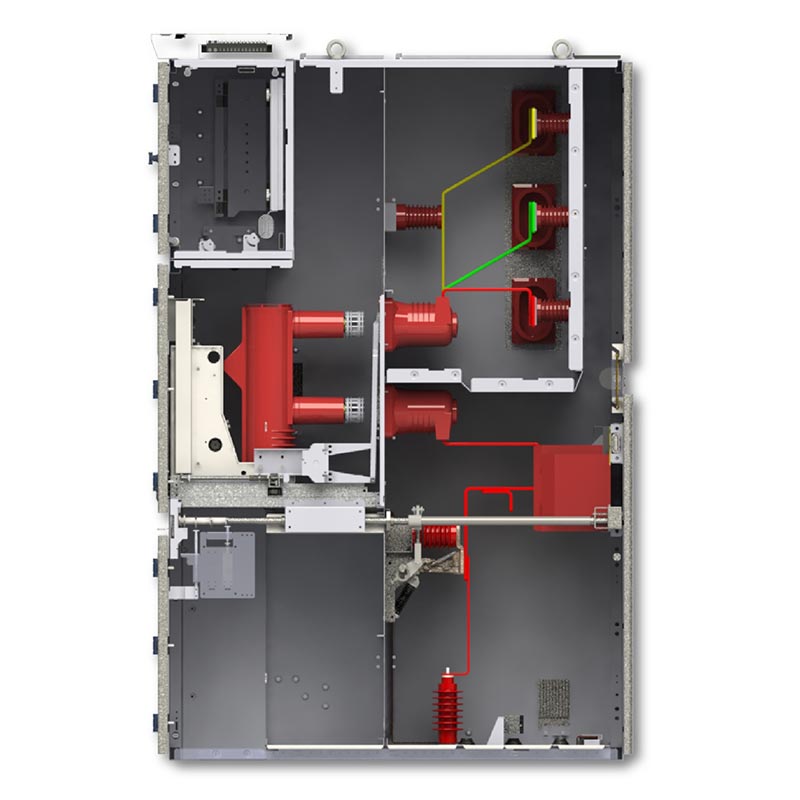

The KYN28-12 Medium Voltage Vacuum Switchgear adopts a fully enclosed metal armored structure. The cabinet is made of high corrosion-resistant aluminum-zinc alloy steel plate with an IP4X protection rating. Internal busbars, circuit breakers, cables, and low-voltage components are independently separated, effectively suppressing the spread of fault arcs. Equipped with a dedicated transfer mechanism, it facilitates the pushing and positioning of the trolley, supports front maintenance and wall mounting, and saves floor space.

2. Reliable Safety Protection

Equipped with a comprehensive "five-proof" interlocking system to prevent electrical misoperation; independent heaters can be selected for the circuit breaker compartment and cable compartment to prevent condensation corrosion; the cable compartment has ample space, allowing for neat wiring and convenient maintenance.

3. Strong Adaptability and Interchangeability

Compatible with multiple vacuum circuit breakers such as VS1-12, ABB VD4, and Schneider HVX; can be configured with voltage transformers, isolating trolleys, and other modules; the trolleys are universally interchangeable, reducing maintenance difficulty and costs.

Technical Specifications

Main Application Areas

The KYN28-12, with its robust design and stable performance, is the preferred choice for many critical sectors:
1. Energy and Infrastructure: Power plants, wind farms, and centralized substations.
2. Heavy Industry: Metallurgical plants, petrochemical complexes, and large manufacturing enterprises.
3. Commercial and Residential: High-rise buildings, airports, hospitals, and data centers.

Project Case Study: Aktau Port, Kazakhstan

1. Challenge: A large international port required a reliable core power system to support 24/7 container handling, customs inspection, and hazardous materials processing operations. The solution had to withstand the region's harsh, humid coastal climate.
2. Solution: This project specified a modular, prefabricated substation integrating 14 Usune KYN28-12 Medium Voltage Vacuum Switchgear units as the high-voltage distribution core.
3. Reasons for Choosing Usune: Usune stood out with its proven IP4X protection rating, anti-condensation heaters, and robust metal enclosure design, making it ideal for corrosive, high-humidity environments.
4. Results: The system has been successfully commissioned and is operating continuously with 100% uptime, ensuring a stable and reliable power supply for the port's critical operations. This project fully demonstrates why Usune, as a leading manufacturer in the electrical industry, is the preferred choice for mission-critical applications worldwide.

Main Technical Parameters

*Forced air cooling is required.

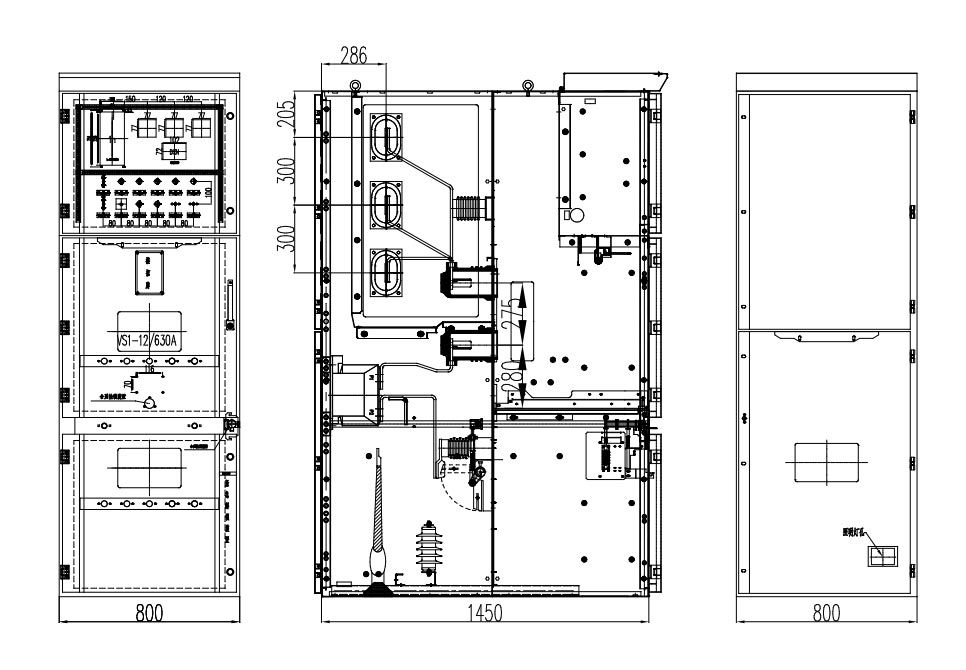

Product External Dimension

Project Reference

Cas-space Rocket Launch Project

Test Report

FAQs

1. Are you factory or trading company?

Factory, we can guarantee our price is reasonable and competitive.

2. When can I have the price?

Usually we quote within 24 hours after receiving your inquiry.

3. Can we print our logo and company name on products?

Yes, of course, we accept OEM.

4. What is the lead time?

The lead time depends on the quantities ordered, normally within 15-20 days after receiving the payment.

5. How's your quality control process?

All products will be inspected starting from accessories, and will be carried out with routine tests before leaving our factory.

6. How to solve the quality problems after sales?

Take photos or video of the quality problems and send to us for our checking and confirming, and we will make a satisfied solution for you within 1-3 days.

7. What's the warranty time?

12 months from shipping date.

8. Why choose us

● We are specialized in the field for more than 14 years, and has a well experienced R&D team taking the design and development work for each project based on customer's special demands.
● We have extremely strict QC procedure from components to finished products.
● Steady production period within 15-20 days.
● We have full set of test reports for products.
● One step solution provided.

In conclusion, the KYN28-12 Medium Voltage Vacuum Switchgear represents the pinnacle of medium-voltage power distribution technology. It integrates safety-centric design, superior manufacturing quality, and flexible customization options, providing a reliable long-term solution for modern power systems. With its superior R&D, manufacturing, and service system, this flagship product continues to gain global recognition for its reliable quality and comprehensive support.
