Kyn28 Switchgear 20kv

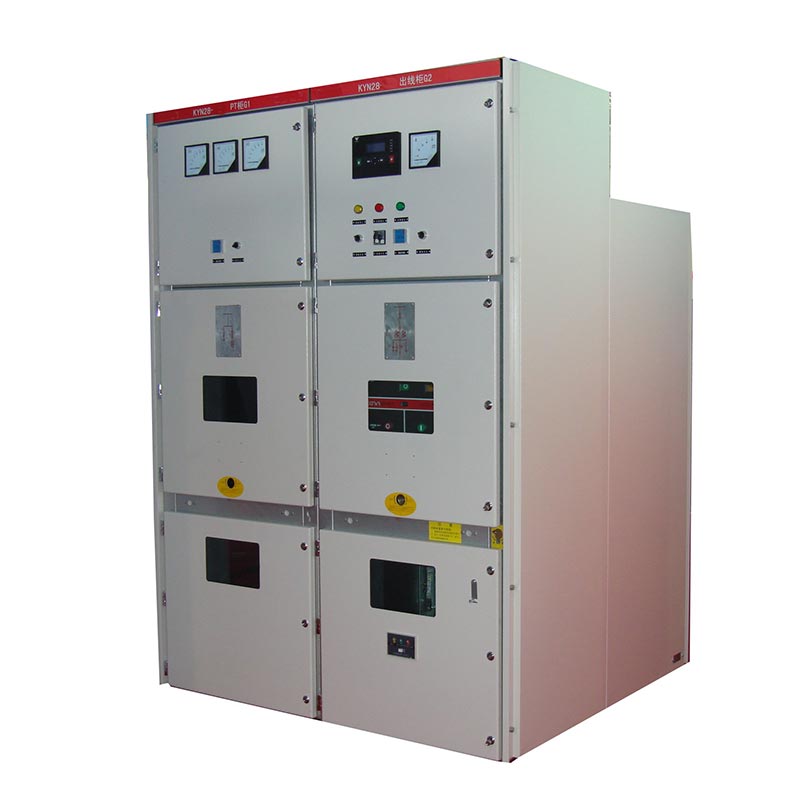

The Usune Kyn28 Switchgear 20kV is an indoor three-phase AC metal-enclosed switchgear, primarily used in 24kV power systems, enabling the reception, distribution, control, protection, and monitoring of electrical energy.

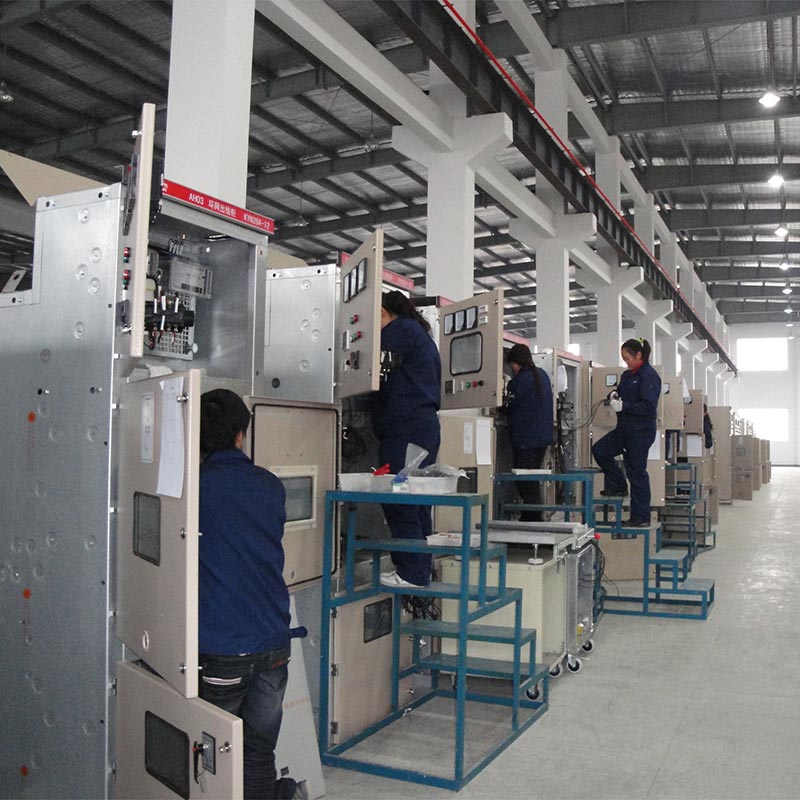

The product uses air insulation + heat-shrinkable/epoxy coating insulation, with an IP4X protection rating (cabinet). Its compact structure and high insulation level make it suitable for various indoor power distribution scenarios. As a medium-voltage power distribution solution manufactured by a professional Chinese manufacturer, this product, with its stable performance and standardized design, has become a trusted high-quality supplier choice for customers worldwide. All core production is completed in our own factory.

Low voltage switchgear

Medium voltage switchgear

Main Technical Parameters

Cabinet Compartment Structure

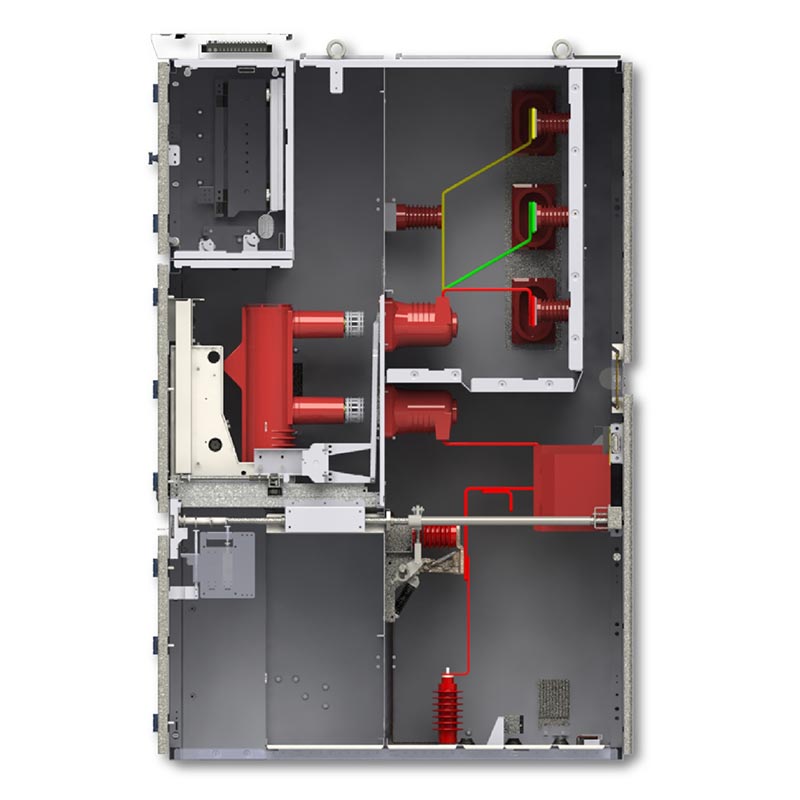

1. Circuit Breaker Compartment: Installs VS1/ZN63/VD4 type vacuum circuit breaker trolleys.
2. Busbar Compartment: Arranges main busbars, branch busbars, and insulators.
3. Cable Compartment: Equipped with CTs, PTs, grounding switches, cable terminals, etc.
4. Control Instrument Compartment: Installs relays, protection devices, instruments, and secondary circuits.
5. Pressure Relief Channel: Equipped with an arc relief device at the top to improve operational safety.

Core Product Features

1. All-metal isolation structure to prevent fault propagation and mutual interference.
2. Complete five-proof mechanical interlocking to prevent accidental opening, closing, or entry into energized compartments.
3. Center-mounted removable trolley, allowing for front-side operation and maintenance, facilitating repairs.
4. Kyn28 Switchgear 20kV has high insulation level, strong fault resistance, compact structure, and is suitable for various power distribution schemes.
5. Meets international and national standards, with stable and reliable quality.

Real-world application case

A power distribution station project in an industrial park. A key provincial industrial park includes multiple factory buildings, office buildings, and supporting power facilities, requiring extremely high reliability and safety in power supply. The project selected 16 Usune Kyn28 Switchgear 20kV units, with a rated current of 1250A and a short-circuit breaking current of 31.5kA.

For over two years since commissioning, the equipment has operated stably, quickly clearing short-circuit faults without any safety incidents. The front-mounted maintenance structure significantly reduces maintenance difficulty and downtime, earning high praise from the park's operations and maintenance department.

Product External Dimension

Project Reference

Cas-space Rocket Launch Project

Test Report

FAQs

Q1: What voltage levels are applicable to the KYN28-24 switchgear?

A1: This product has a rated voltage of 24kV and is compatible with 50/60Hz three-phase AC power systems covering 3.6～12kV and 24kV levels.

Q2: Which type of vacuum circuit breaker should be used with the switchgear?

A2: Standard configuration includes a VS1 (ZN63) type vacuum circuit breaker trolley, and is also compatible with industry-standard circuit breakers such as the VD4, offering strong interchangeability.

Q3: Is the Kyn28 Switchgear 20kV suitable for heavy-load applications such as industrial and mining enterprises and data centers?

A3: Yes. The product has a maximum rated current of 3150A and a short-circuit breaking current of 31.5kA, demonstrating strong withstand capability and meeting the power distribution needs of critical loads in industrial and mining enterprises, data centers, high-rise buildings, and other similar applications.
