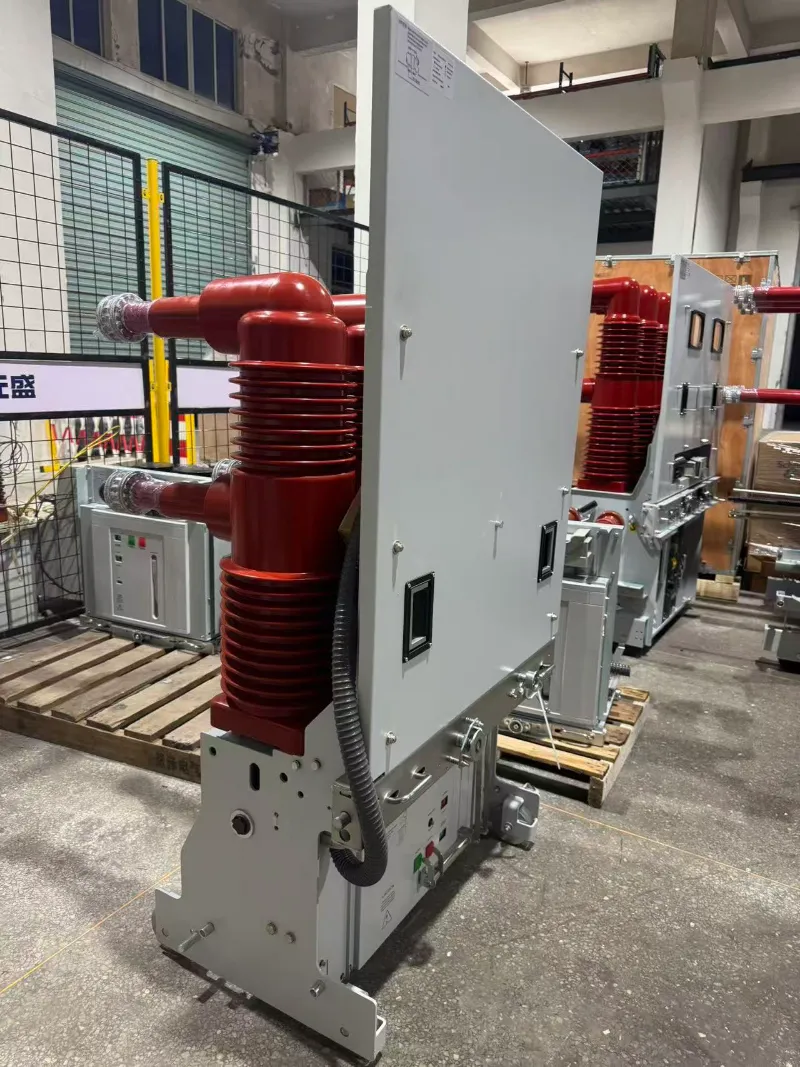

The ZN85-40.5 series indoor high-voltage vacuum circuit breaker is a mature floor-standing handcart type switching device, specially designed for 36kV / 40.5kV three-phase AC power distribution and substation projects.
This circuit breaker adopts integrated floor-standing handcart design, different from traditional suspension type structure. The three-phase pole columns are arranged with a standard fixed phase-to-phase distance (pole pole) of 280 mm. This precise 280mm pole spacing optimizes electric field distribution, guarantees sufficient insulation distance, effectively avoids inter-phase discharge, and ensures long-term stable and safe operation under rated voltage and lightning impulse conditions.
Equipped with high-performance vacuum interrupters and high-reliability spring operating mechanism, the breaker realizes reliable closing, opening and fault breaking operations. It features strong overload resistance, excellent short-circuit breaking capacity, low mechanical wear and maintenance-free operation.
Perfectly compatible with KYN61-40.5 indoor metal-clad withdrawable switchgear, it is widely applied in power plants, industrial substations, mining and renewable energy power distribution systems.
The whole series fully complies with IEC 62271-100 international standards including temperature rise test, short-time withstand current test, lightning impulse test and mechanical endurance test, can be provided for project review and tender submission.
1. Standard 280mm pole pole distance, stable inter-phase insulation, high operational safety
2. Floor-standing handcart structure, strong rigidity, convenient push-pull and maintenance
3. Reliable spring mechanism, suitable for frequent switching operation
4. Compact and standardized layout, high compatibility with 36kV KYN61 cabinet
5. Fully qualified for international power grid projects
