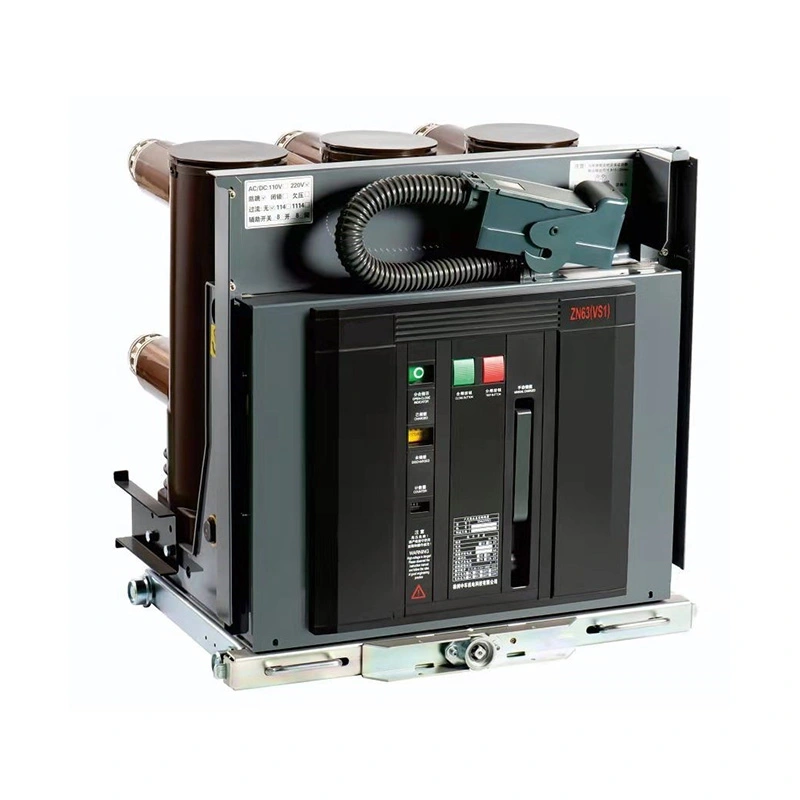

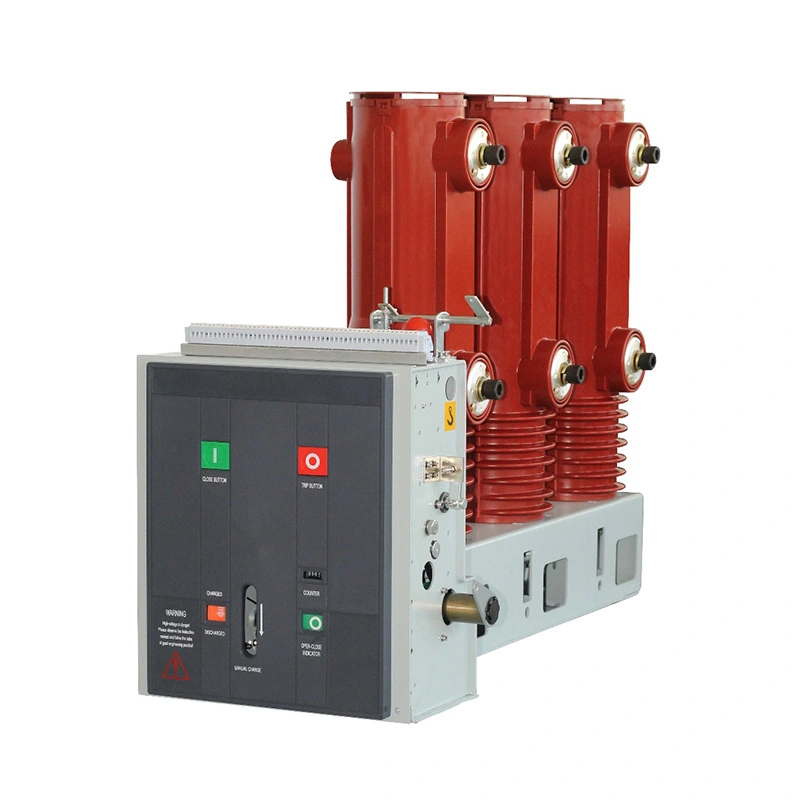

Vacuum Circuit Breaker 630a

The Usune Vacuum Circuit Breaker 630a is an indoor, 12kV, 50Hz medium-voltage breaker rated at 630A, with selectable short-circuit breaking capacity of 20, 25, 31.5 or 40kA and a 20,000-operation mechanical life. It protects transformers, motors, cable feeders and capacitor banks in 10kV distribution systems, and is manufactured to IEC and GB switchgear standards with CE marking.


    USUNE Vacuum Circuit Breaker 630a uses vacuum interruption to clear fault current without oil or SF₆. The arc is quenched inside a sealed interrupter, giving fast dielectric recovery, low contact erosion, and a maintenance-light design suited to substations, industrial plants, commercial buildings, and prefabricated substations.

    Each unit ships with a model-specific datasheet, outline drawing, wiring diagram, and routine-test record. Panel builders, EPCs, and utility buyers get engineering support from inquiry to commissioning rather than a catalogue-only export.


    Vacuum Circuit Breaker 630aVacuum Circuit Breaker 630a

    What the 630A rating covers — and where it stops

    Rated current sets how much continuous load the breaker can carry without exceeding its temperature-rise limits. At 630A, a Vacuum Circuit Breaker 630a comfortably covers the outgoing feeders of a typical 10kV distribution room: a 630–800 kVA distribution transformer at 10kV draws roughly 36–46A, a 1250 kVA unit around 72A, and a fully loaded 630A feeder sits at the top of the range with margin for diversity and future load growth.

    This is why 630A is the most common rating in 10kV secondary distribution: it is large enough for real feeder currents, small enough to keep switchgear width, copper cross-section and cost down. Above roughly 800A of continuous demand, step up to a 1250A frame — running a 630A breaker near its thermal limit for years shortens contact life and leaves no headroom for expansion.

    Performance Item Specification
    Rated Voltage 12kV
    Rated Current 630A
    Rated Frequency 50Hz
    Rated Short Circuit Breaking Current 20kA / 25kA / 31.5kA / 40kA
    Rated Short Time Withstand Current 20kA / 25kA / 31.5kA / 40kA
    Short Circuit Duration 4s
    Lightning Impact Withstand Voltage 75kV
    Power Frequency Withstand Voltage 42kV

    Breaking capacity: 20kA, 25kA, 31.5kA or 40kA?

    Breaking capacity must exceed the prospective short-circuit current at the point of installation — not the transformer's rated current. Size it from the upstream transformer impedance, cable length and system grounding, then add margin for future source upgrades.

    20kA — small distribution rooms, short cable runs, modest transformer capacity.

    25kA — the default for most 10kV industrial and commercial distribution; covers the majority of 800–1250 kVA transformer applications.

    31.5kA — larger substations, parallel transformer operation, busbars with high fault levels.

    40kA — utility and heavy-industry switchgear close to the source, where fault levels are highest and maintenance intervals must be shorter.

    All four ratings share the same 4-second short-time withstand current and the same vacuum interrupter working principle: the arc is drawn in a vacuum, metal vapour condenses within milliseconds, and the dielectric strength recovers almost instantly. There is no oil, no SF6 and no arc chute to maintain.

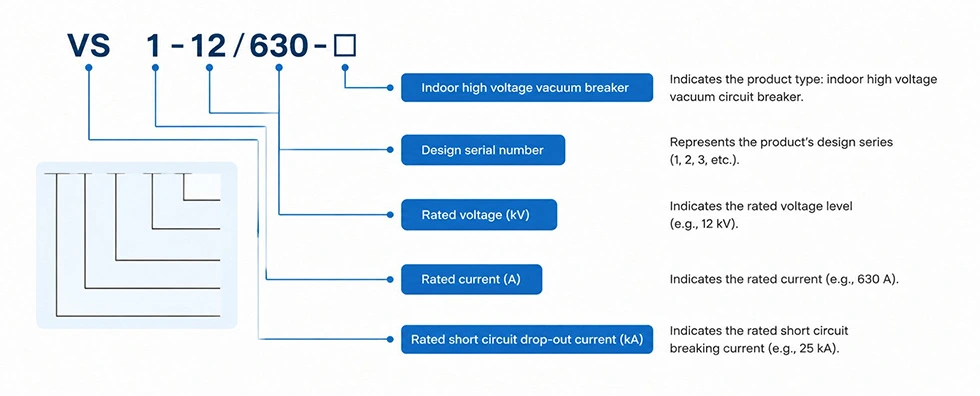

    Product model and the meaning

    Vacuum Circuit Breaker 630a

    Mechanical reliability and switching accuracy

    Long Service Life

    Mechanical life drives total cost of ownership more than purchase price does. This breaker is rated for 20,000 mechanical operations and 20,000 rated-current breaking operations, with a 3mm contact wear allowance before replacement is required — enough for decades of normal feeder switching, or several years of high-frequency capacitor or motor duty.

    Switching accuracy matters as much as endurance. Opening time of 20–50 ms and closing time of 35–70 ms keep interruption fast enough to limit fault damage; closing bounce of ≤2 ms and three-phase synchronism of ≤2 ms reduce restrike risk and switching overvoltage, which is what actually protects downstream insulation.

    Installation and commissioning checklist

    Most early-life failures in medium-voltage switchgear trace back to installation, not to the breaker. Before energising, confirm:

    1.Panel fixing bolts and earthing connections torqued to drawing values; earthing conductor continuous.

    2.Clearance to live parts and to earthed metalwork within the values on the dimension drawing.

    3.Control and auxiliary wiring correct for the specified operating voltage (AC or DC 110/220V) — a mismatched coil is the single most common commissioning fault.

    4.Energy storage, closing and tripping tested five times manually before electrical operation.

    5.Position indicator and operation counter reading correctly; interlocks functioning.

    6.Power-frequency withstand test passed at 42kV for 1 minute, with test report recorded.

    7.Contact resistance and opening/closing times measured and logged as a baseline for future comparison.

    Typical applications

    The indoor 630A vacuum circuit breaker is specified across a narrow but deep set of applications, all sharing the same requirement: reliable interruption of 10kV circuits with minimal maintenance.

    Industrial plants — plant substations, motor control centres, production line feeders.

    Commercial and public buildings — hospitals, airports, data centres, high-rise complexes with 10kV ring distribution.

    Power distribution — secondary substations, ring main units, feeder and bus-section panels.

    Renewables — wind and solar collector circuits, where frequent switching and remote sites make low maintenance decisive.

    Mining and heavy industry — dusty, humid or corrosive environments, provided the panel IP rating and insulation creepage are specified accordingly.

    For capacitor bank switching, specify the breaker together with an inrush current reactor or a capacitor-duty interrupter — repeated high-frequency inrush is the one duty that will erode contact life faster than the 20,000-operation rating suggests.

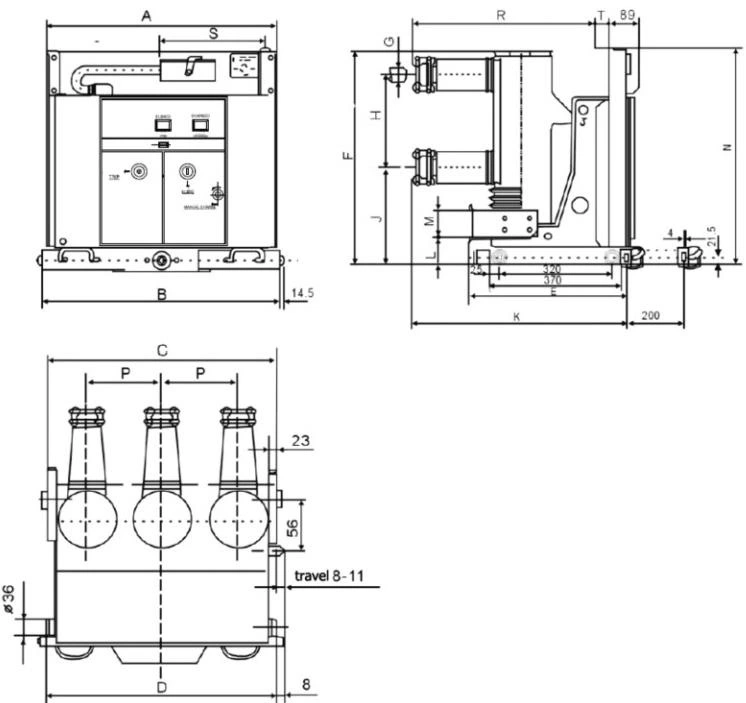

    VS1 Structure Drawing & Installation Dimensions

    Vacuum Circuit Breaker 630a

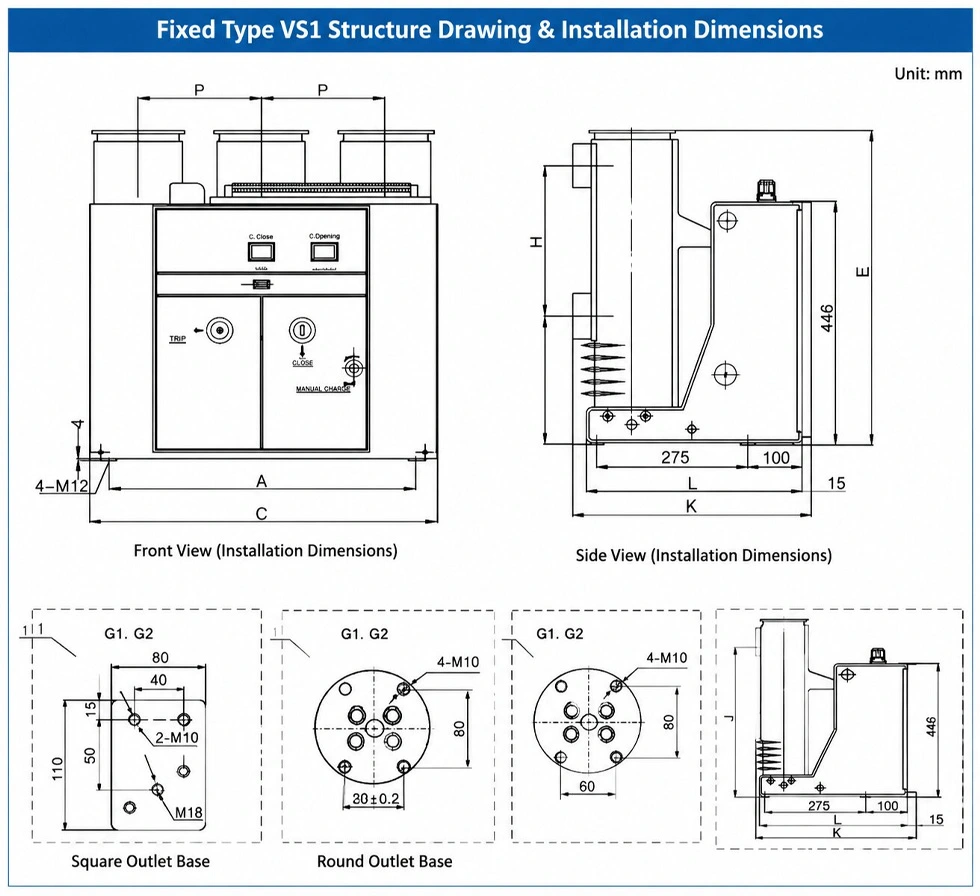

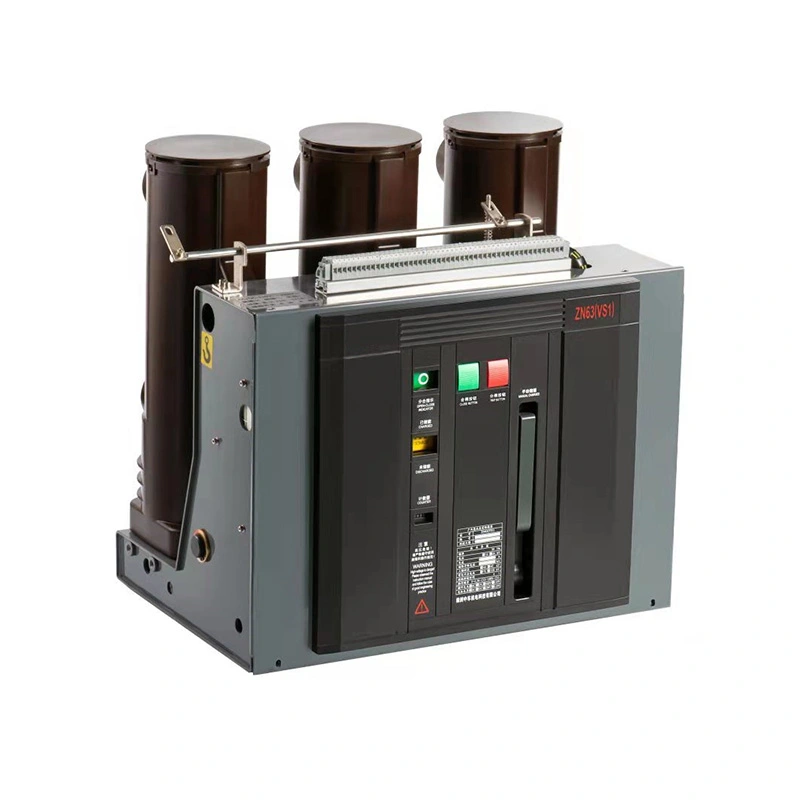

    Fixed Type VS1 Structure Drawing & Installation Dimensions

    Vacuum Circuit Breaker 630a

    Storage and Insulation Protection

    Storage and mechanical flexibility. Long-term storage or infrequent operation can cause mechanical resistance in moving parts. To maintain operating flexibility, perform at least five energy-storage, closing, and tripping cycles each year. This routine keeps mechanical components in proper working condition and helps reduce the risk of sluggish operation when a Vacuum Circuit Breaker 630a is returned to service.

    Annual insulation testing. Insulation performance is critical for safe medium-voltage operation. Conduct at least one insulation test annually to evaluate the condition of the vacuum arc chute and confirm whether the insulation strength of other insulating components has declined. Power-frequency withstand voltage testing can verify insulation reliability and identify potential problems before an operational failure occurs.

    Safe maintenance procedures. Before maintenance, place the Vacuum Circuit Breaker 630a in a non-energy-stored and open (tripped) condition, and disconnect all power supplies before inspection. Because the energy-storage mechanism and closing springs retain stored energy, improper handling may cause unexpected operation and create safety risks. Maintenance should be performed only by qualified professionals following proper safety procedures.

    Selection Considerations

    Suitable for Medium Load Systems

    When selecting a vacuum circuit breaker, rated current should match the actual electrical load requirements.

    The 630A configuration is suitable for medium-voltage systems requiring reliable protection, stable switching performance, and efficient equipment utilization. Compared with higher-current models, it provides a practical balance between electrical capability and project cost.

    The Usune Vacuum Circuit Breaker 630a is an ideal choice for projects where moderate current demand, reliable protection, and long-term operation are key considerations.

    Flexible Project Configuration

    Different electrical projects may require different technical configurations. The Vacuum Circuit Breaker 630a can be selected according to rated voltage, short-circuit breaking capacity, operating voltage, secondary wiring requirements, and spare parts needs.

    This flexibility allows engineers to configure the equipment according to actual system conditions and improve compatibility with complete switchgear solutions.

    Selection Factor Product Advantage
    Medium current requirements Provides suitable 630A capacity
    Reliable protection needs Supports multiple short-circuit levels
    Long-term operation Designed for durable performance
    Project customization Supports different technical configurations
    Maintenance planning Allows condition-based inspection

    Ordering Information

    Required Technical Details

    To ensure correct product selection, customers should provide the following information when ordering:

    Requirement Description
    Product Model Confirm required breaker type
    Quantity Specify project demand
    Rated Voltage Match system voltage
    Rated Current Confirm current requirement
    Short Circuit Breaking Current Select protection level
    Operating Voltage Match control system
    Secondary Wiring Program Optional configuration
    Spare Parts Requirement Specify accessories
    Special Requirements Customized project needs

    Quality Certification

    International Standards

    Usune applies strict quality management throughout product design and manufacturing.

    The company operates under:

    Certification Standard
    Quality Management ISO 9001
    Environmental Management ISO 14001
    Occupational Health and Safety ISO 45001
    Electrical Standards IEC and GB
    Product Certification CE

    These certifications demonstrate Usune's commitment to providing reliable medium-voltage electrical products for global customers.

    Technical Specifications

    Parameter Specification
    Product Type Indoor Vacuum Circuit Breaker
    Rated Voltage 12kV
    Rated Current 630A
    Frequency 50Hz
    Rated Insulation Level 42kV / 75kV
    Breaking Current 20kA-40kA
    Mechanical Life 20,000 Operations
    Operating Voltage AC110/220V, DC110/220V
    Energy Storage Time ≤10s
    Applicable Standards IEC / GB
    Certification CE

    FAQ

    What is a Vacuum Circuit Breaker 630a used for?

    It switches and protects 12kV circuits rated up to 630A: transformer feeders, motor circuits, cable feeders and capacitor banks in industrial, commercial and utility distribution. Its vacuum interrupter extinguishes fault arcs in milliseconds, isolating faults before they damage downstream equipment.

    What is the difference between a 630A and a 1250A vacuum circuit breaker?

    Continuous current capacity and physical size, not protection quality. 630A suits outgoing feeders and transformers up to about 1250 kVA; 1250A is used for incomers, bus sections and plant main distribution. Both are available with the same 20–40kA breaking capacity, so fault protection is equivalent.

    Which breaking capacity should I choose — 20, 25, 31.5 or 40kA?

    Match it to the prospective short-circuit current at the installation point, calculated from transformer impedance, cable length and system grounding. 25kA covers most 10kV industrial distribution; 31.5kA and 40kA are for high-capacity substations and utility switchgear. Never select below the calculated fault level.

    Is it fixed type or withdrawable?

    Both. The fixed version is used in compact panels and ring main units; the withdrawable handcart version is used where routine testing or fast replacement is required. Interrupter and electrical ratings are identical, so you can standardise on one model across a project and vary only the mounting.
